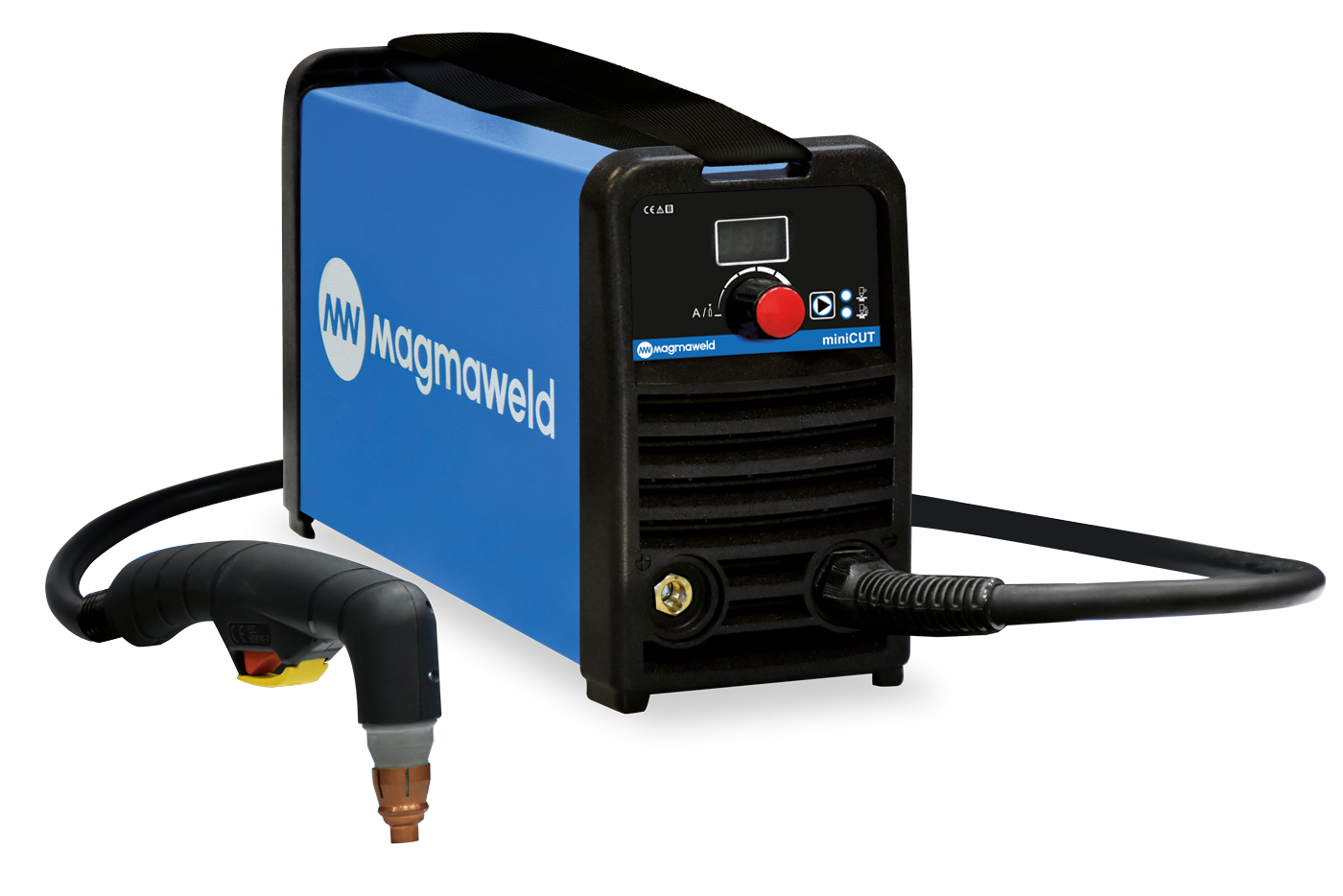

MINICUT

GENERAL
TECHNICAL SPECIFICATIONS
Accessories
DOCUMENTS
  • Plasma cutting machine with inverter technology
  • Excellent cutting performance with all types of metal with its advanced design
  • Maximum cutting capacity of 10 mm in high precise without loss of performance in all metal types, including aluminum and stainless
  • Different trigger modes that provide convenience to the user
  • Faster and cleaner cutting performance compared to oxyfuel
  • Manual adjustment for optimum gas pressure
  • The smallest & the lightest of its product family,it can easily be carried.
  • Easy setting and monitoring with user friendly interface
  • More uptime and maximum performance with strong torches and consumables
  • Save time with more precise and smoother cutting
  • Impact resistant, robust, reinforced steel body
  • Easy mobility with its ergonomic structure
  • No performance loss due to mains voltage fluctuations and ambient temperature changes
Power Source
Mains Voltage (1Ph) 230 V
Input Power 5,18 kVA
Power Source Efficiency 83,13 %
IDLE State Power Consumption 18,25 W
Output Current 15 - 30 A
Open Circuit Voltage 280 (Max) V
Recommended Cutting Thickness 8 mm
Dimensions (l x w x h) 402 x 121 x 200 mm
Weight (Net) 7,5 kg
Plasma Gas Clean, dry, oil-free air or N2
Required Work Pressure 5 bar - 130 lt/dk
Protection Class IP23S
Code Name Dimension Standard/Optional
K301100343 Workpiece Cable 25mm2/3m (25 sockets) Standard
7142H03004 LAVA CUT MINI HAND CUTTING 4 METERS Standard
Product Brochure
PDF
Operating Manual
PDF Search
Additional Documents
Approvals & Certificates
CE
