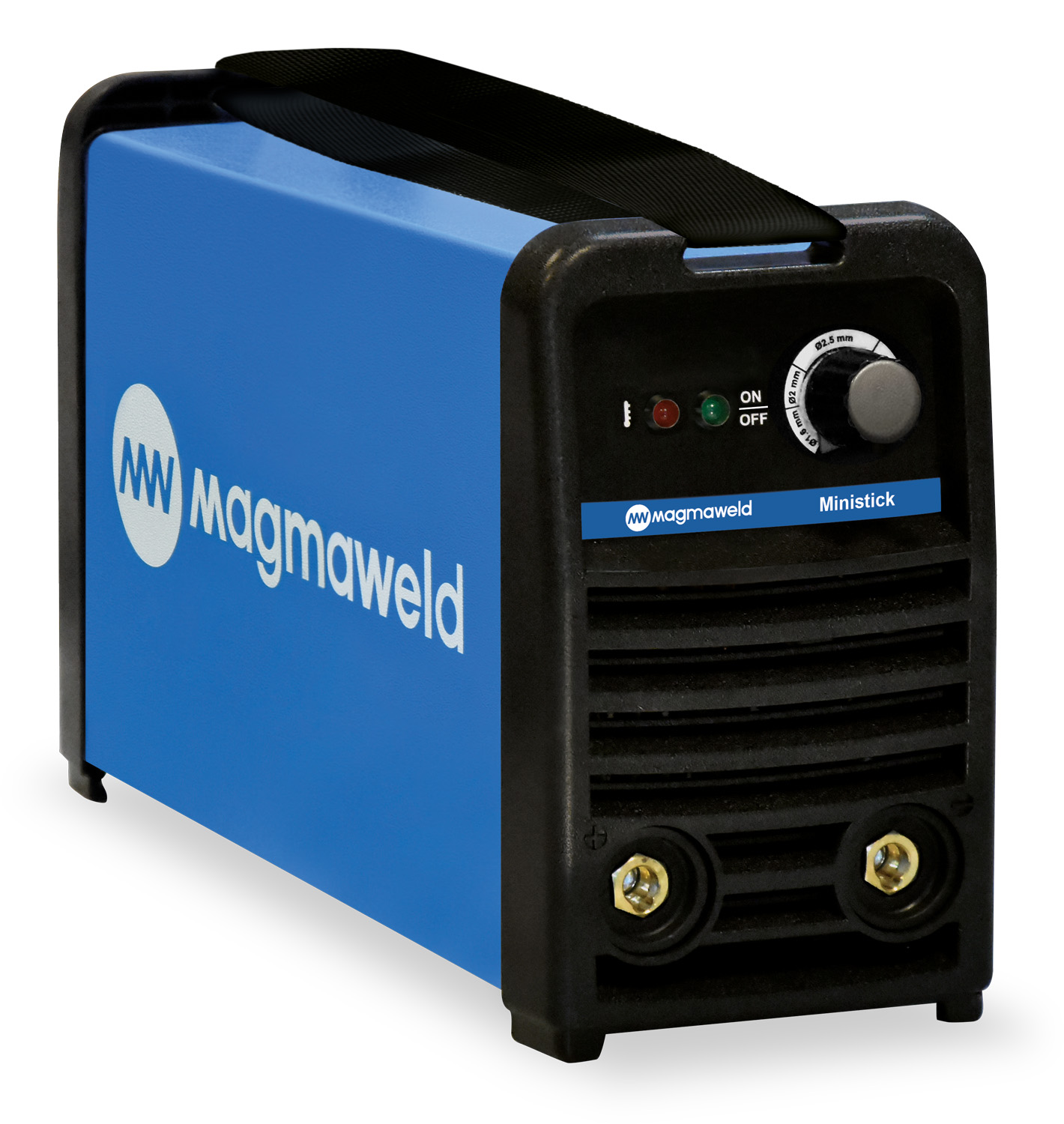

MINISTICK DELUXE

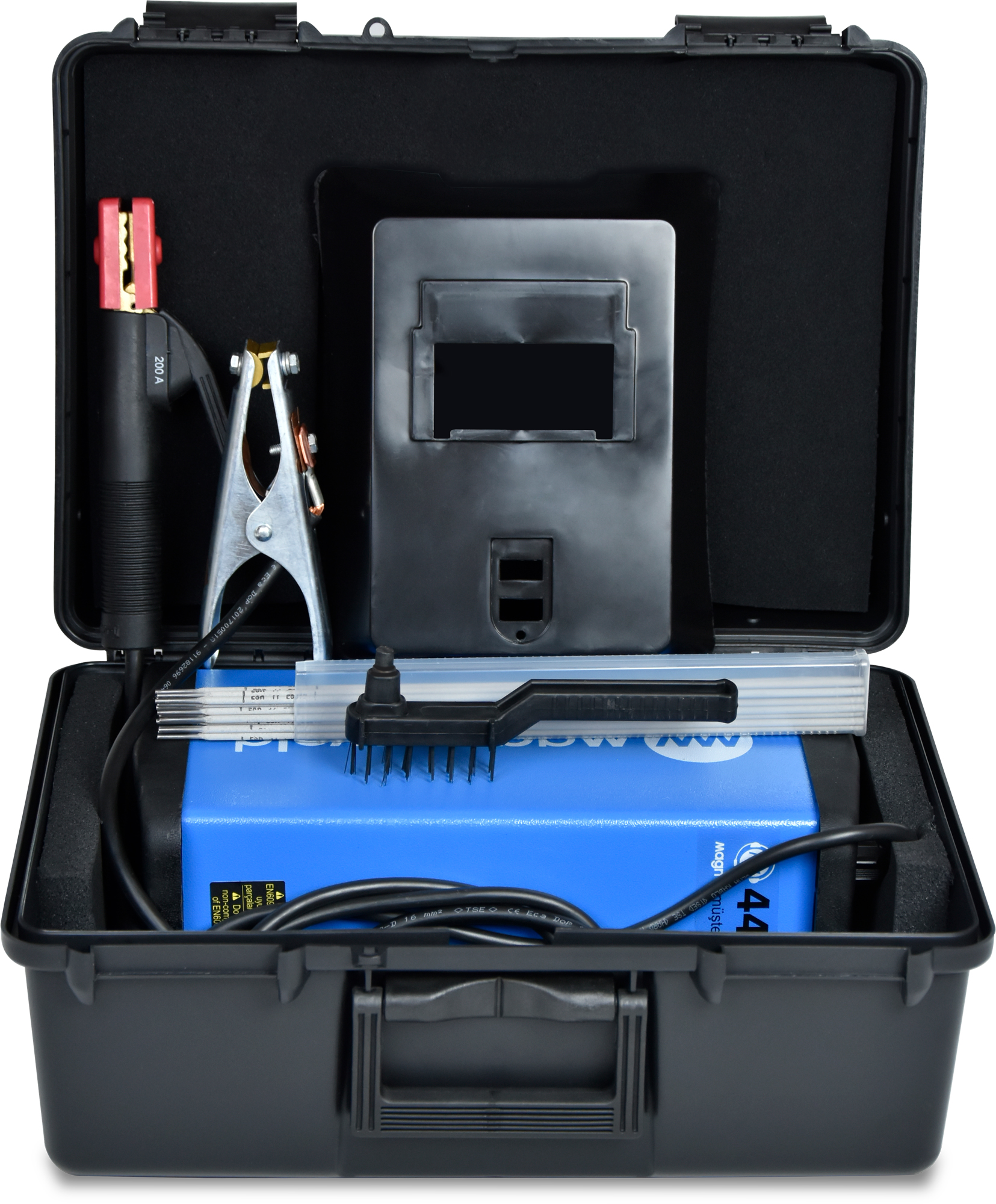

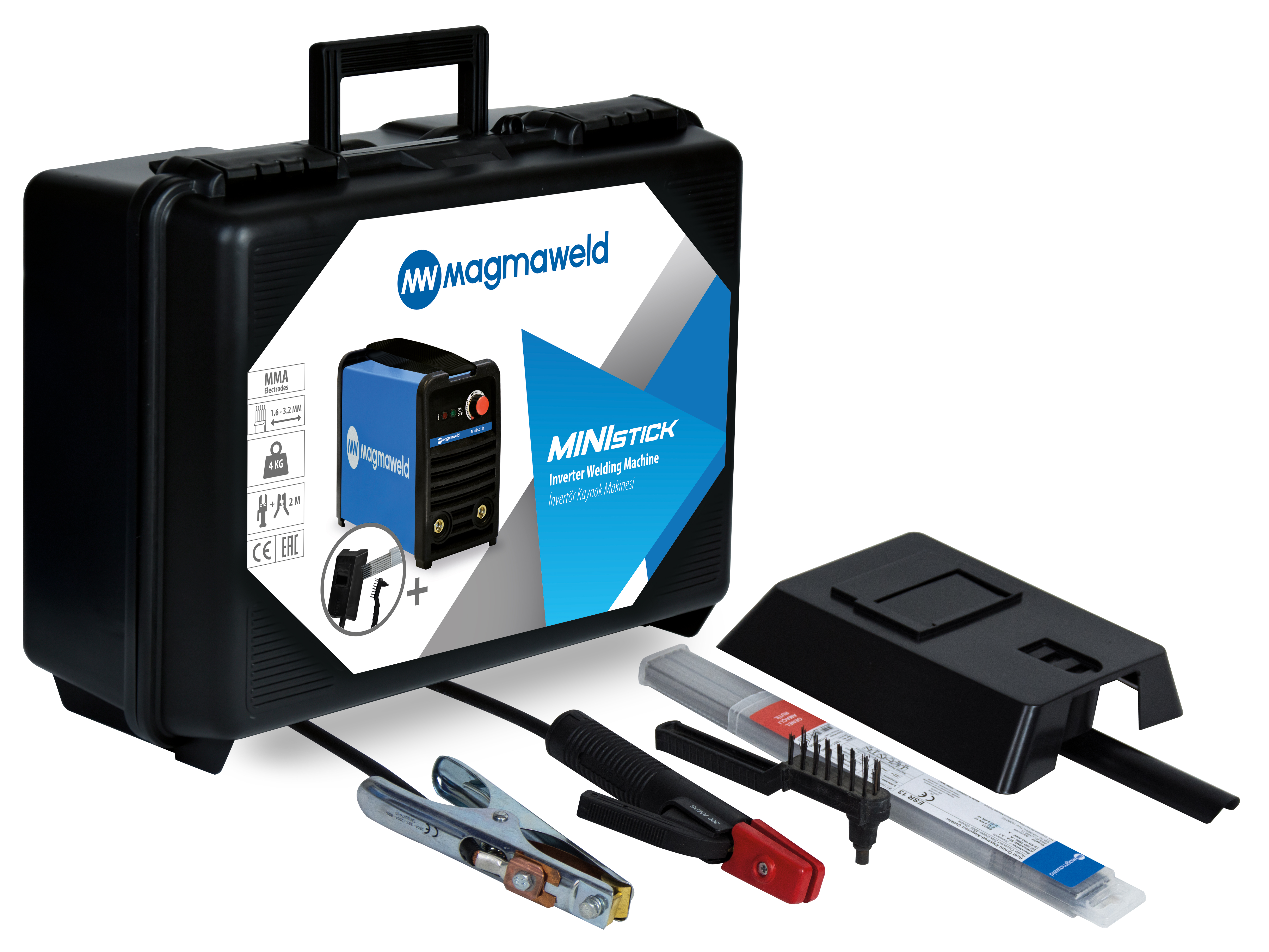

MINISTICK DELUXE - Taşıma Çantası ve Aksesaurlar

Operates with 1 Phase 230V-50/60 Hz mains voltage and generators, tolerates voltage fluctuations up to 15%.
Due to inverter technology, energy efficiency is higher than the conventional machines.
Excellent welding characteristics for rutile and basic electrodes up to 3.25 mm in diameter.
Current adjustment scale by electrode diameters for easy parameter selection.
Scratch TIG welding on even thin metals due to its stable low currents.
The smallest model of the family with a weight of 4 kg and the compact design, it can easily be carried or hanged by the shoulder strap.
Stable welding current without loss of performance due to electric line fluctuations or with longer welding and electrical cables.
Designed also for outdoor use, protection class is IP 23.
Fan cooling and thermal protection against overheating.
Standard accessories come with the machine.

Power Source
Mains Voltage (1Ph)	230	V
Input Power from Mains	6.83	kVA
Power Source Efficiency	85,66	%
IDLE State Power Consumption	N/A (EN IEC 60974-1,Annex M)	W
Welding Current Range	5 - 140	A
Duty Cycle (@25°C)	130	A (%100)
Duty Cycle (@25°C)	140	A (%70)
EN 60974 -1 (I/X%)	140/15
Open Circuit Voltage	75 VDC	V
Electrode Diameter	1.60 - 3.25	mm
Dimensions (l x w x h)	360 x 120 x 200	mm
Weight (Net)	4.25	kg
Protection Class	IP 23

Product Brochure

PDF

Operating Manual

PDF Search

Additional Documents

Quick Start

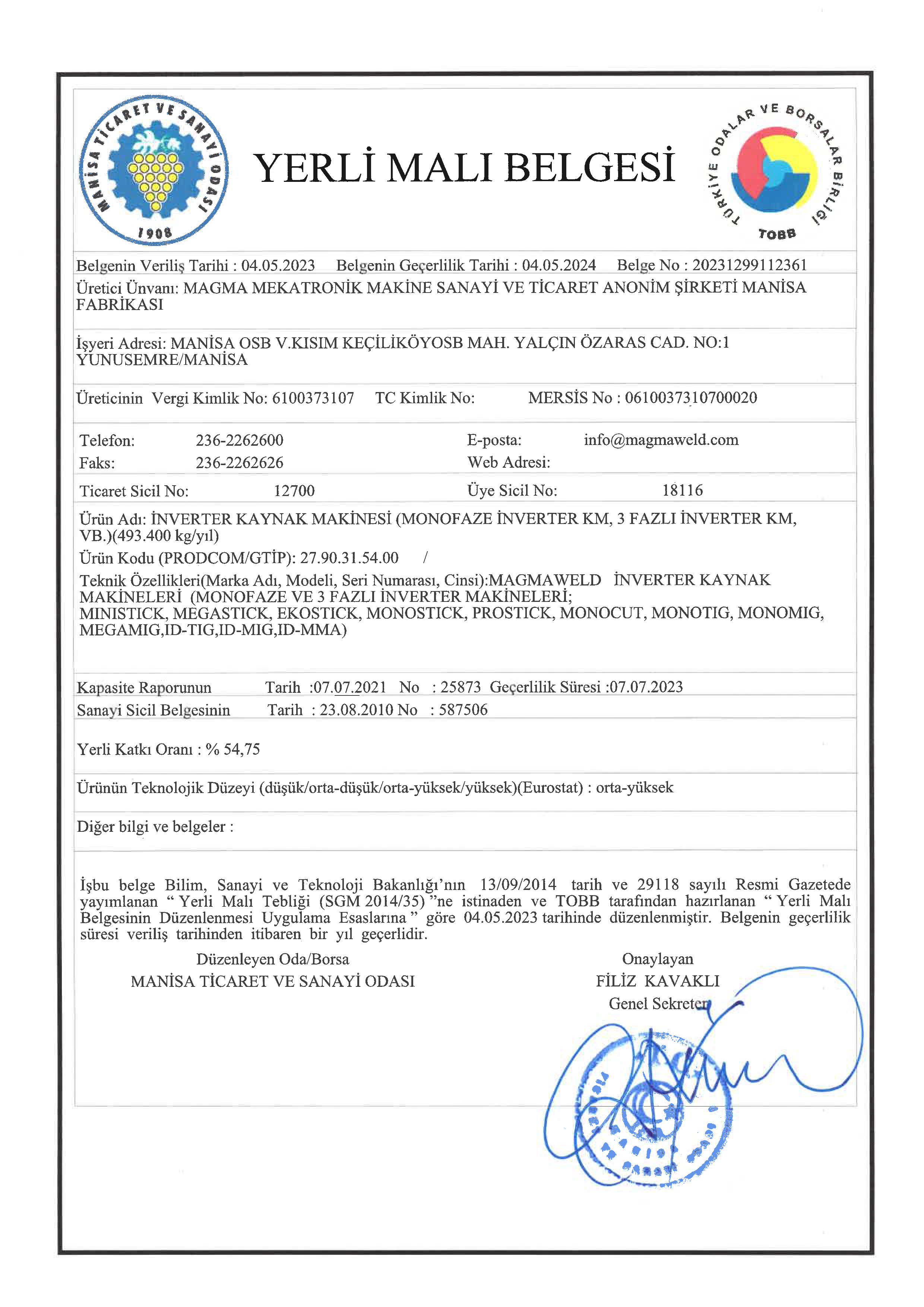

Approvals & Certificates

EAC Turkish Product CE

Code	Dimension	View
501M1500MF	MINISTICK DELUXE - Taşıma Çantası ve Aksesaurlar	View
