MKM 726S

Product Brochure : PDF
GENERAL
TECHNICAL SPECIFICATIONS
DOCUMENTS

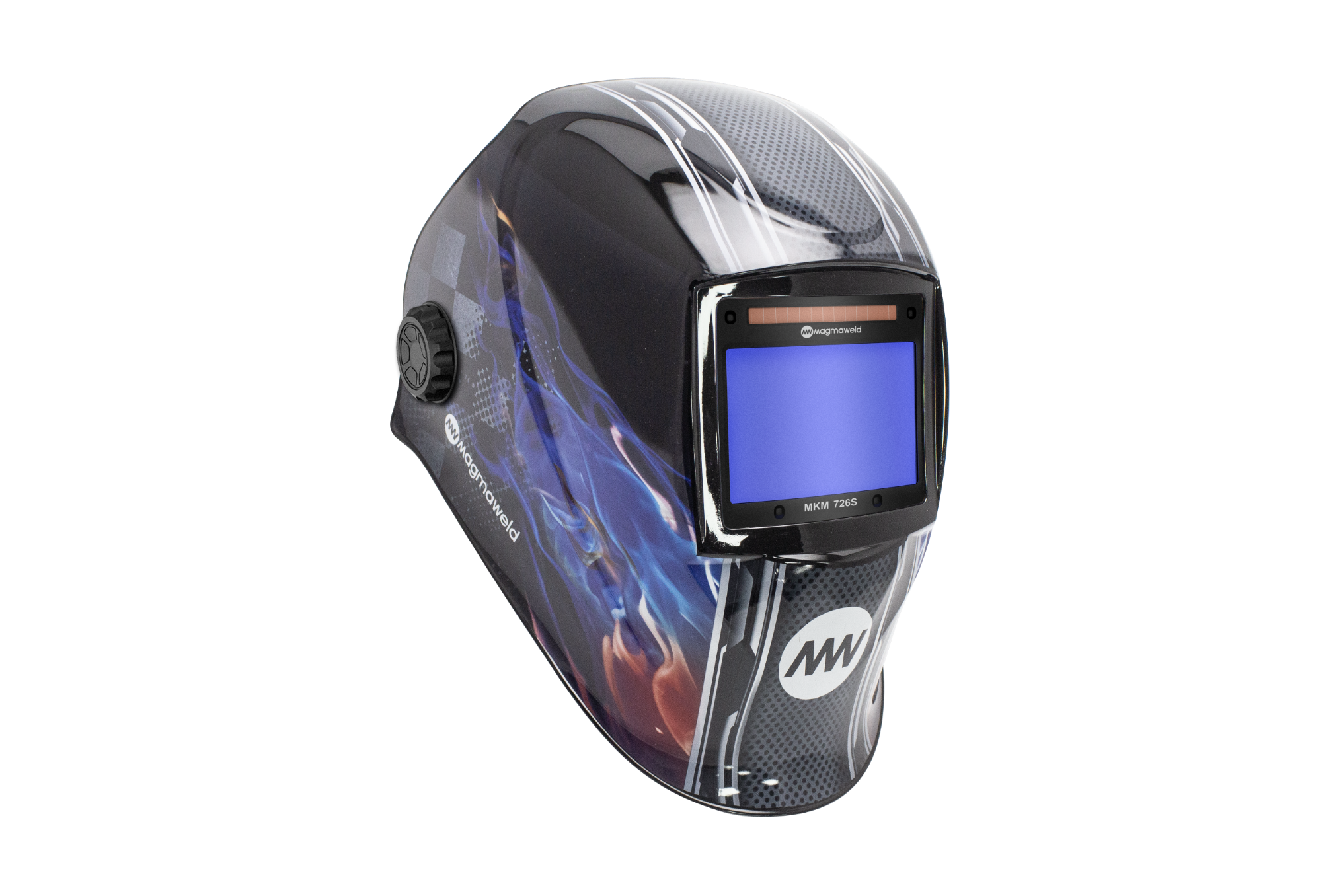

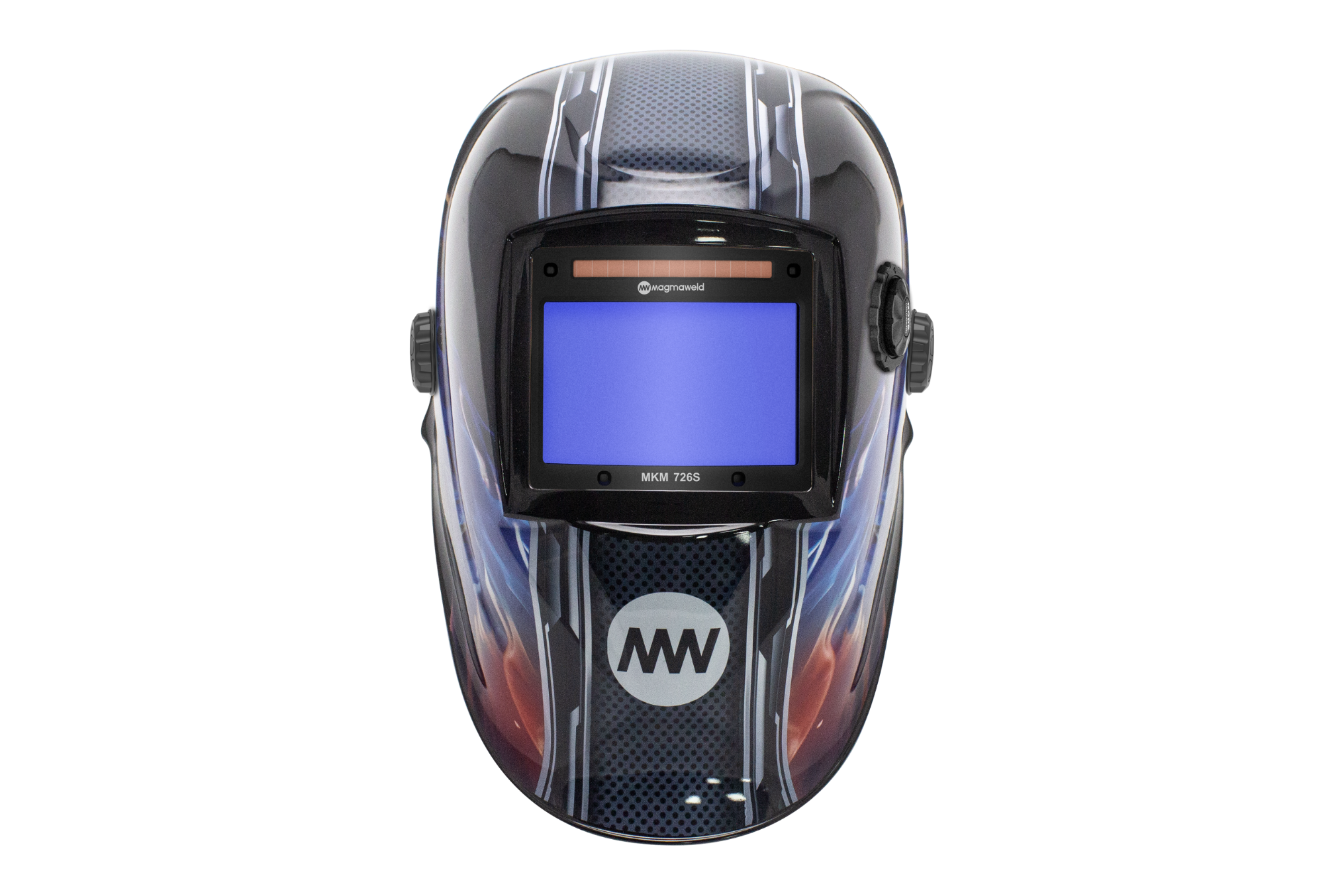

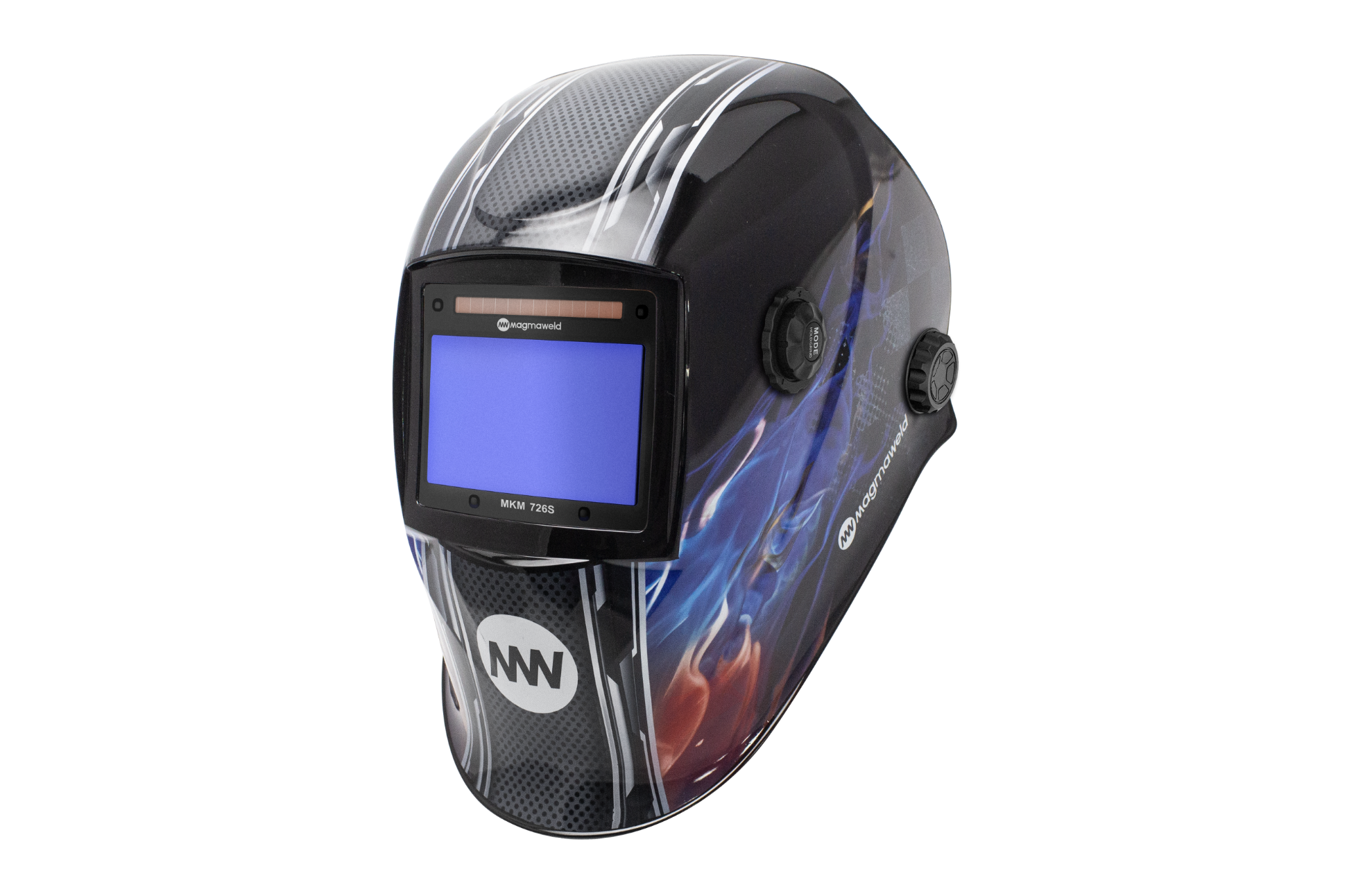

Our MKM 726S auto-darkening welding mask model with W 4 - 8 / 9 - 13 adjustment levels at 1/1/1/2 degrees with EN ISO 16321-2 norm; With a wide field of view of 100 x 60 mm, it has a high level of protection and sensitivity against the light intensity in welding and an improved filter feature that is extremely safe and cares about protecting your eye health.

Cartridge
Optical Class 1/1/1/2
Field Of View 100 x 60 mm
Cartridge Sizes 110 x 90 x 9 mm
Graduation Degrees W 4 - 8 / 9 - 13
Blackout Control İçeride, Değişken Kararma
Sensors 4
Start/Stop OTOMATIK
Power Source Solar Enerjili, Pil Değiştirilebilir. 2 x CR 2450
Reaction Time (From Light To Darkness) 1/30000 S
Delay Time (Variable Potency Button) 0.04 ~ 2.0 S
Operating Sensitivity >= 5 A(DC) ; >= 5 A(AC)
Operating Temperature -5 ~ + 55 °C
Storage Temperatures -10 ~ + 60 °C
Mask Headpiece
Weight (Net) 475 gr
