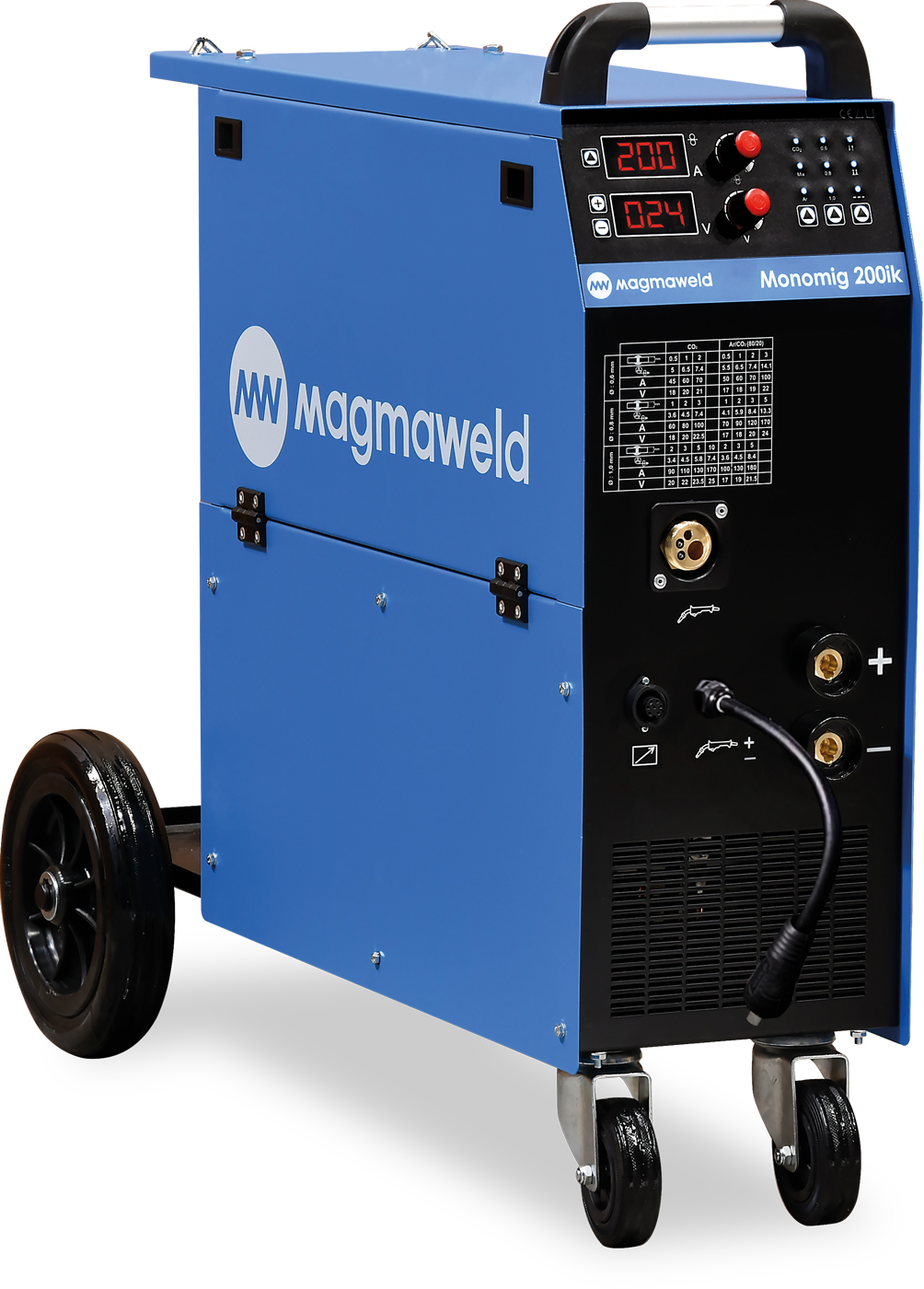

MONOMIG 200IK

GENERAL
TECHNICAL SPECIFICATIONS
Accessories
DOCUMENTS
  • Operates with 1 Phase 230V-50/60 Hz mains voltage and generators, tolerates voltage fluctuations up to 15%.
  • Due to inverter technology, energy efficiency is higher than the conventional machines.
  • Excellent welding characteristics with all types of solid and flux cored wires with CO2 or Mix gases.
  • Welding Voltage, Wire Feeding Speed, Soft Start, Pre-Gas, Post-Gas, Burn-Back timer settings and 2/4 Trigger options are adjusted on the front panel.
  • Large digital displays for easy monitoring welding parameters.
  • Manual wire feeding and gas valve buttons.
  • ø300 mm, ø270 mm and ø200 mm spools, drums of any size and ø100 mm spool with a spool gun can be used.
  • Built in gas cylinder platform with large wheels to ease mobility in workshops.
  • Fan cooling and thermal protection against overheating.
  • Standard accessories come with the machine.
Power Source
Mains Voltage (1Ph) 230 V
Input Power 8.6 (%16) kVA
Power Source Efficiency 83,13 %
IDLE State Power Consumption N/A (EN IEC 60974-1,Annex M) W
Welding Current Range 30 - 200 A
Nominal Welding Current 200 (%16) A
Open Circuit Voltage 52 V
Dimensions (l x w x h) 888 x 455 x 870 mm
Weight (Net) 48 kg
Protection Class IP21
Wire Feeder System
Standard Roller Groove Size 0.80 - 1.00 mm
Welding Wire Diameter 0.60 - 1.00 mm
Wire Feeder Roller Diameter 2x37 mm
Wire Feeding Speed 1 - 24 m/min
Torch Trigger Control 2 / 4
Weight (Net) 15 kg
Code Name Dimension Standard/Optional
7907000002 Gas Hose 2 METRE Standard
7905212503 EARTH CLAMP and CABLE 25mm2/3mt (35 socket) Standard
7120015003 LAVA MIG 15-3 180A (%60 CO2) - 3m Standard
7020001004 ARGON PRESSURE REGULATOR G5/8'' Bottom Adjustment Standard
7121018006 LAVA MIG SPOOL GUN 24V/10K 180A (6 Metre) Optional
7120020003 LAVA MIG 25-3 230A (%60 CO2) - 3m Optional
7020009002 CO2 GAS HEATER MAGMAWELD (220V / 230V-75W) Optional
7020001005 CO2 PRESSURE REGULATOR W21,8x1/14'' Bottom Adjustment Optional
