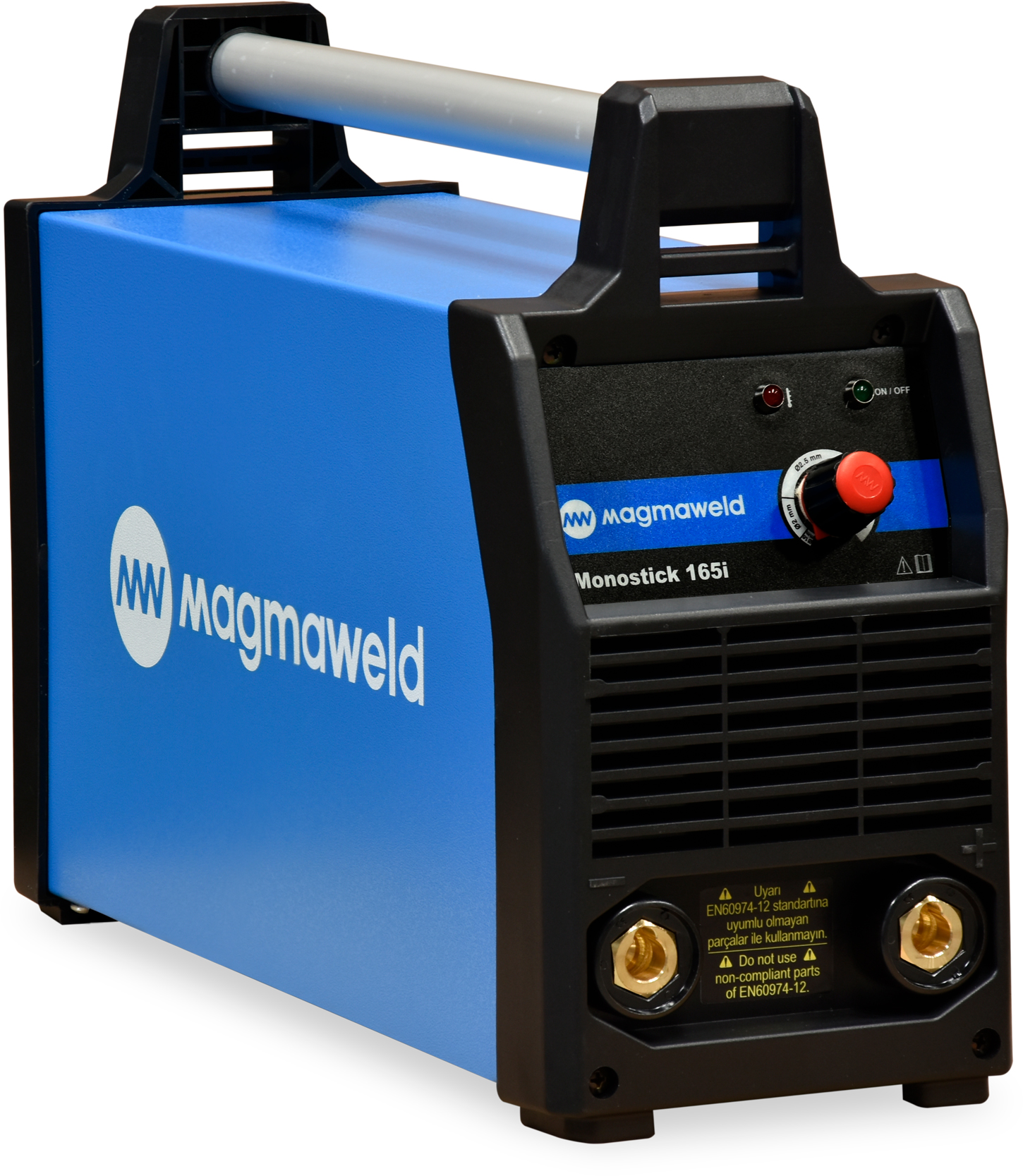

Monostick 165I

MONOSTICK 165I

Products:

GENERAL
Technical Details
Accessories
DOCUMENTS
  • Operates with 1 Phase 230V-50/60 Hz mains voltage and generators, tolerates voltage fluctuations up to 15%.
  • Due to inverter technology, energy efficiency is higher than the conventional machines.
  • Excellent welding characteristics for rutile and basic electrodes.
  • Scratch TIG welding on even thin metals due to its stable low currents.
  • Current adjustment scale by electrode diameters for easy parameter selection.
  • Stable welding current without loss of performance due to electric line fluctuations or with long welding and electrical cables.
  • Excellent for outdoor use with IP 23 protection class.
  • Portable lightweight design but withstands tough working conditions.
  • Resists against tipping over scaffolds due to its wider base.
  • Fan cooled and electronically protected against overheating.
  • Standard accessories come with the machine.
Power Source
Mains Voltage (1Ph) 230 V
Input Power 7.7 kVA
Welding Current Range 10-160 A
Devrede Kalma Oranı (@25°C) 140 A (%100)
EN 60974 -1 (I/X%) 160/20
Devrede Kalma Oranı (@25°C) 160 A (%35)
Electrode Welding Capacity (2.50mm) 50 Pcs/Hr
Electrode Welding Capacity (3.25mm) 47 Pcs/Hr
Electrode Welding Capacity (4.00mm) 40 Pcs/Hr
Open Circuit Voltage 65 V
Electrode Diameter 1.60 - 3.25 mm
Dimensions (l x w x h) 467 x 160 x 312 mm
Weight (Net) 7,5 kg
Protection Class IP23
Code Name Dimension Standard/Optional
7906201603 Electrode Clamp And Cable 16mm2/3mt (35 socket) Standard
7905201603 Ground Clamp And Cable 16mm2/3mt (35 socket) Standard

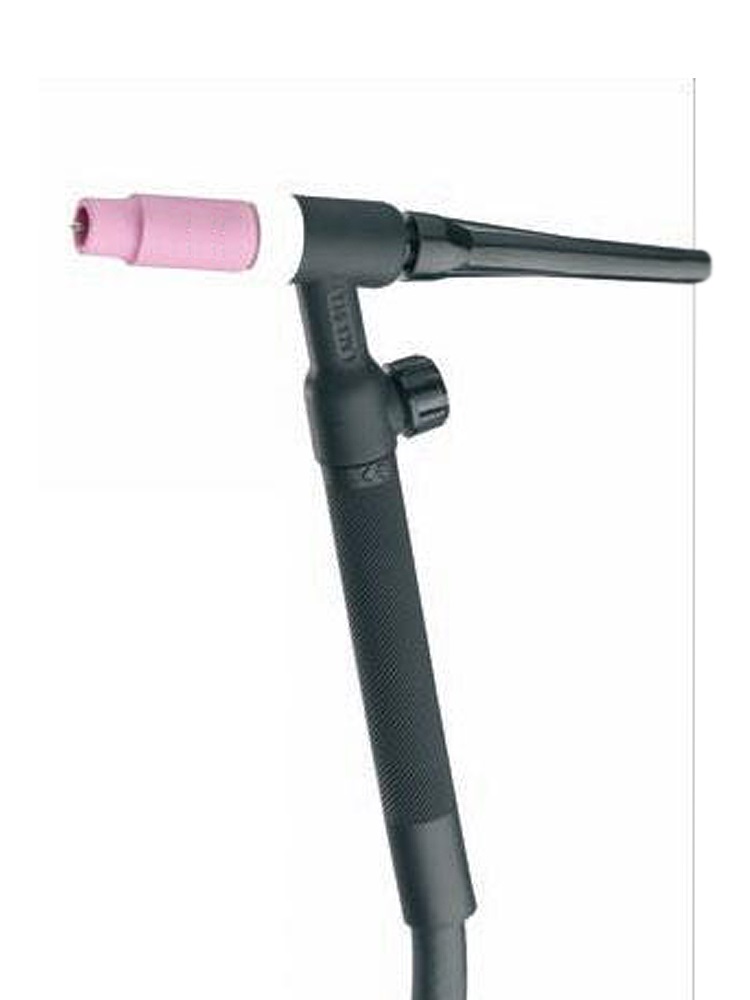

7111014004 LAVA TIG 17V-4 MUSLUKLU 140A (%35 DC) 35 Soket Optional
Product Brochure
PDF
Operating Manual
PDF Search
Additional Documents
Quick Start

Approvals & Certificates

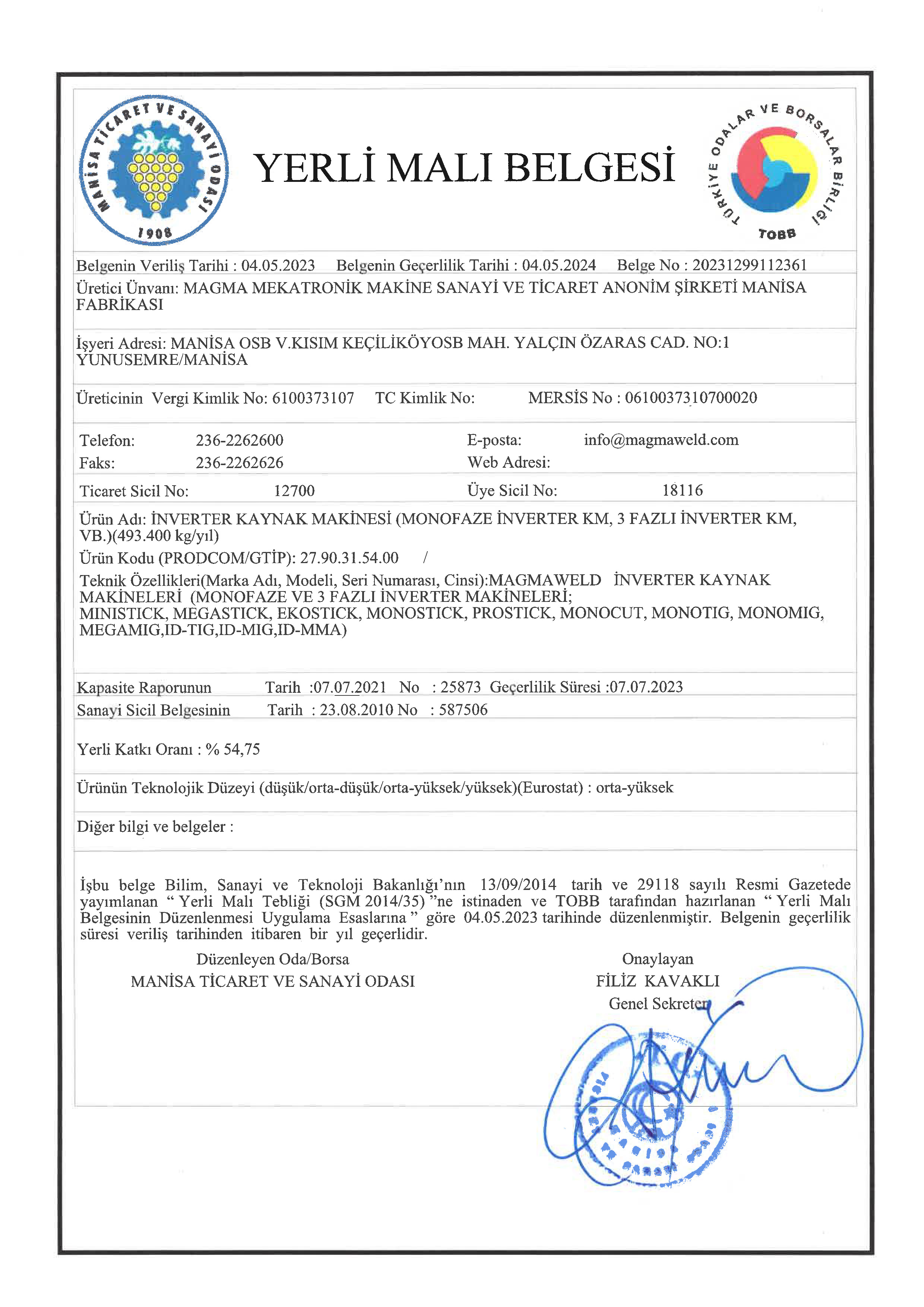

EAC CE YERLİ MALI ROHS
