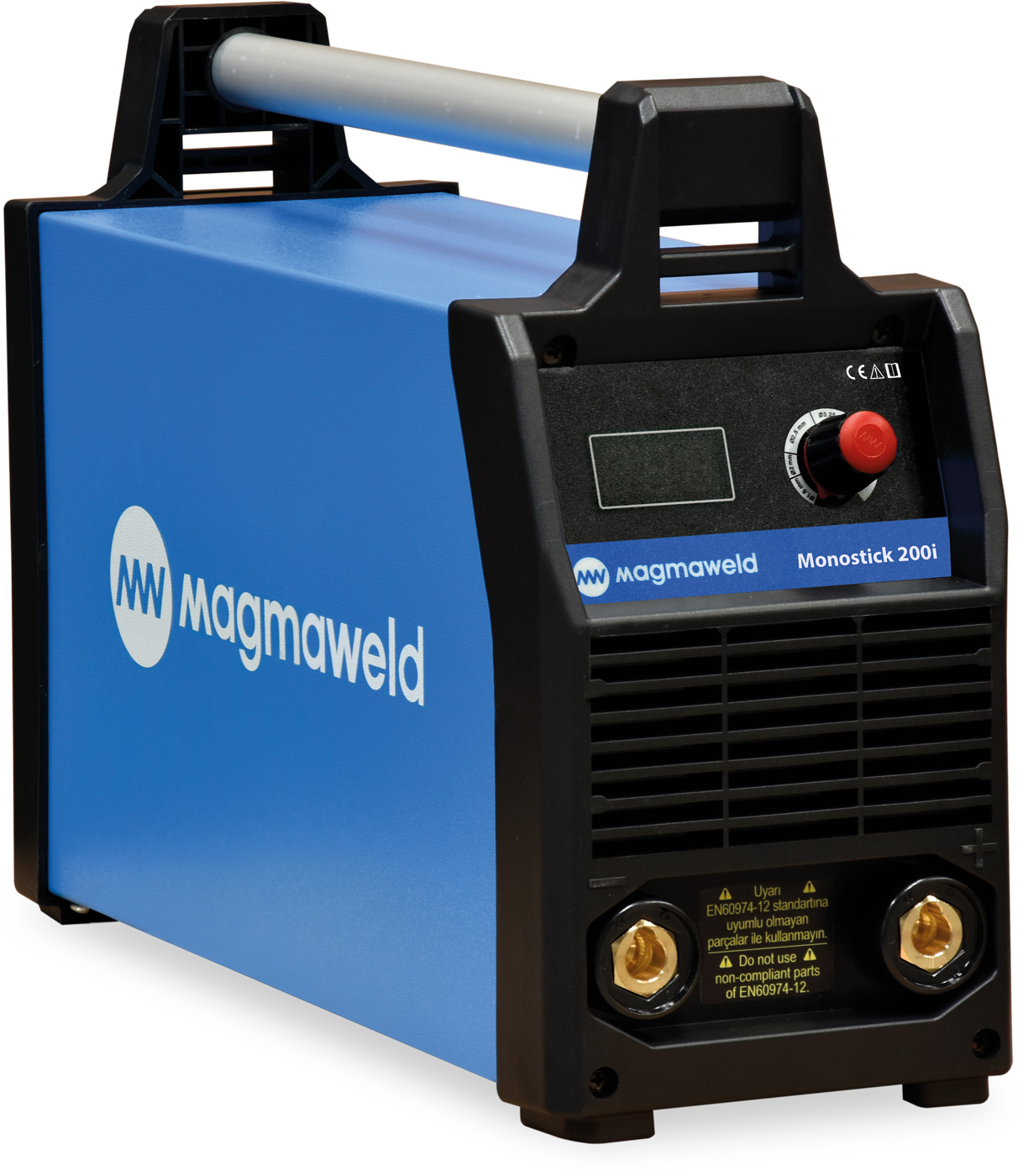

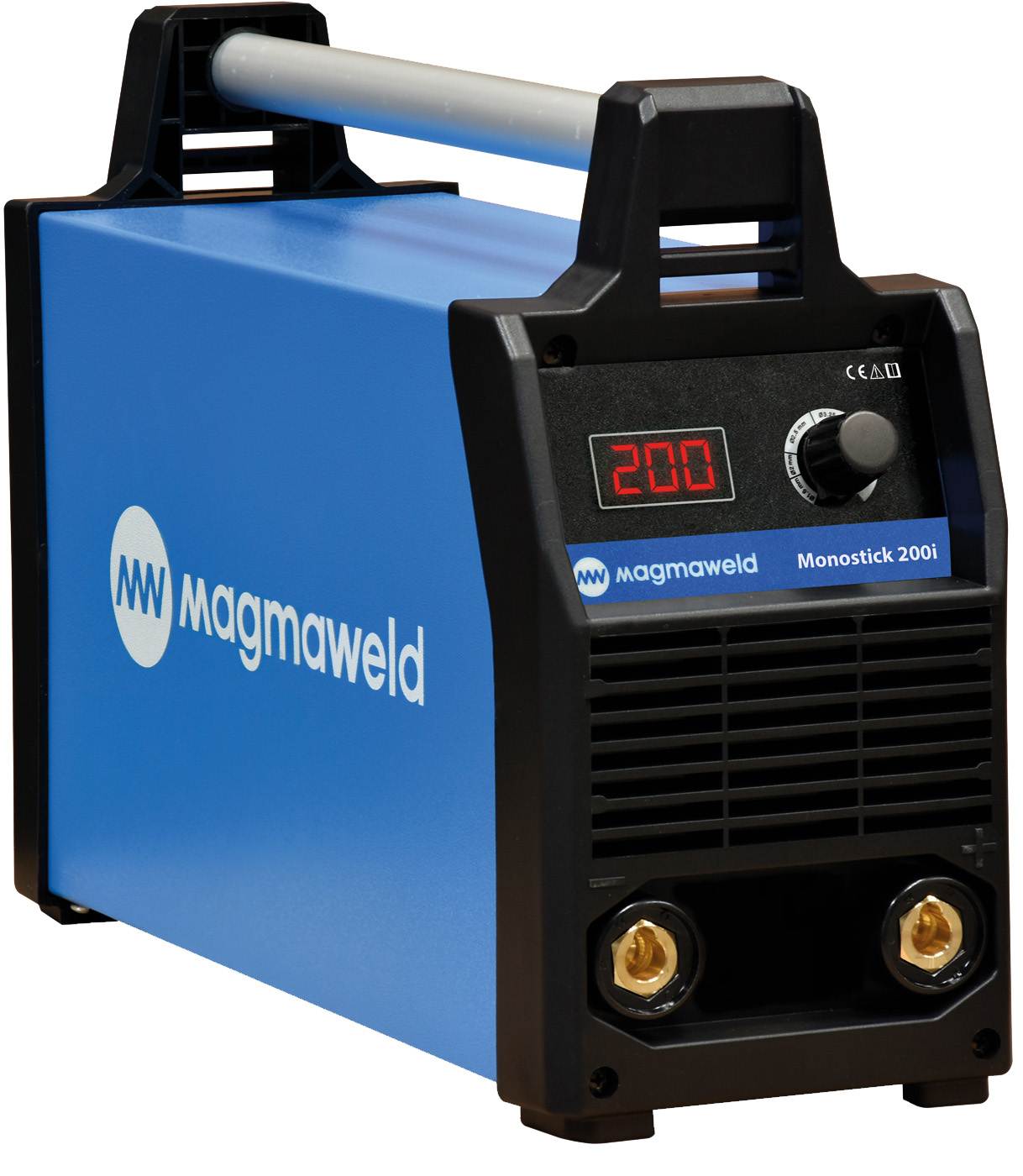

MONOSTICK 200i

GENERAL
TECHNICAL SPECIFICATIONS
Accessories
DOCUMENTS
  • Operates with 1 Phase 230V-50/60 Hz mains voltage and generators, tolerates voltage fluctuations up to 15%.
  • Due to inverter technology, energy efficiency is higher than the conventional machines.
  • Excellent welding characteristics for rutile and basic electrodes.
  • Scratch TIG welding on even thin metals due to its stable low currents.
  • Current adjustment scale by electrode diameters, digital display for easy parameter selection.
  • Stable welding current without loss of performance due to electric line fluctuations or with long welding and electrical cables.
  • Excellent for outdoor use with IP 23 protection class.
  • Portable lightweight design but withstands tough working conditions.
  • Resists against tipping over scaffolds due to its wider base.
  • Fan cooled and electronically protected against overheating.
  • Standard accessories come with the machine.
Power Source
Mains Voltage (1Ph) 230 V
Input Power 9.7 kVA
Power Source Efficiency 85,24 %
IDLE State Power Consumption N/A (EN IEC 60974-1,Annex M) W
Welding Current Range 10 - 200 A
Open Circuit Voltage 65 V
Duty Cycle (@25°C) 145 A (%100)
Duty Cycle (@25°C) 200 A (%35)
Electrode Welding Capacity (3.25mm) 47 Pcs/Hr
Electrode Welding Capacity (4.00mm) 40 Pcs/Hr
Electrode Welding Capacity (5.00mm) 28 Pcs/Hr
EN 60974 -1 (I/X%) 200/14
Electrode Diameter 1.60 - 4.00 mm
Dimensions (l x w x h) 467 x 160 x 312 mm
Weight (Net) 10,5 kg
Protection Class IP23
Code Name Dimension Standard/Optional
7906202503 ELECTRODE CLAMP AND CABLE 25mm2/3mt (35 socket) Standard
7905212503 EARTH CLAMP and CABLE 25mm2/3mt (35 socket) Standard
7111014004 LAVA TIG 17V-4 VALVE 140A (%35 DC) 35 Socket Optional
Product Brochure
PDF
Operating Manual
PDF Search
Additional Documents
Quick Start

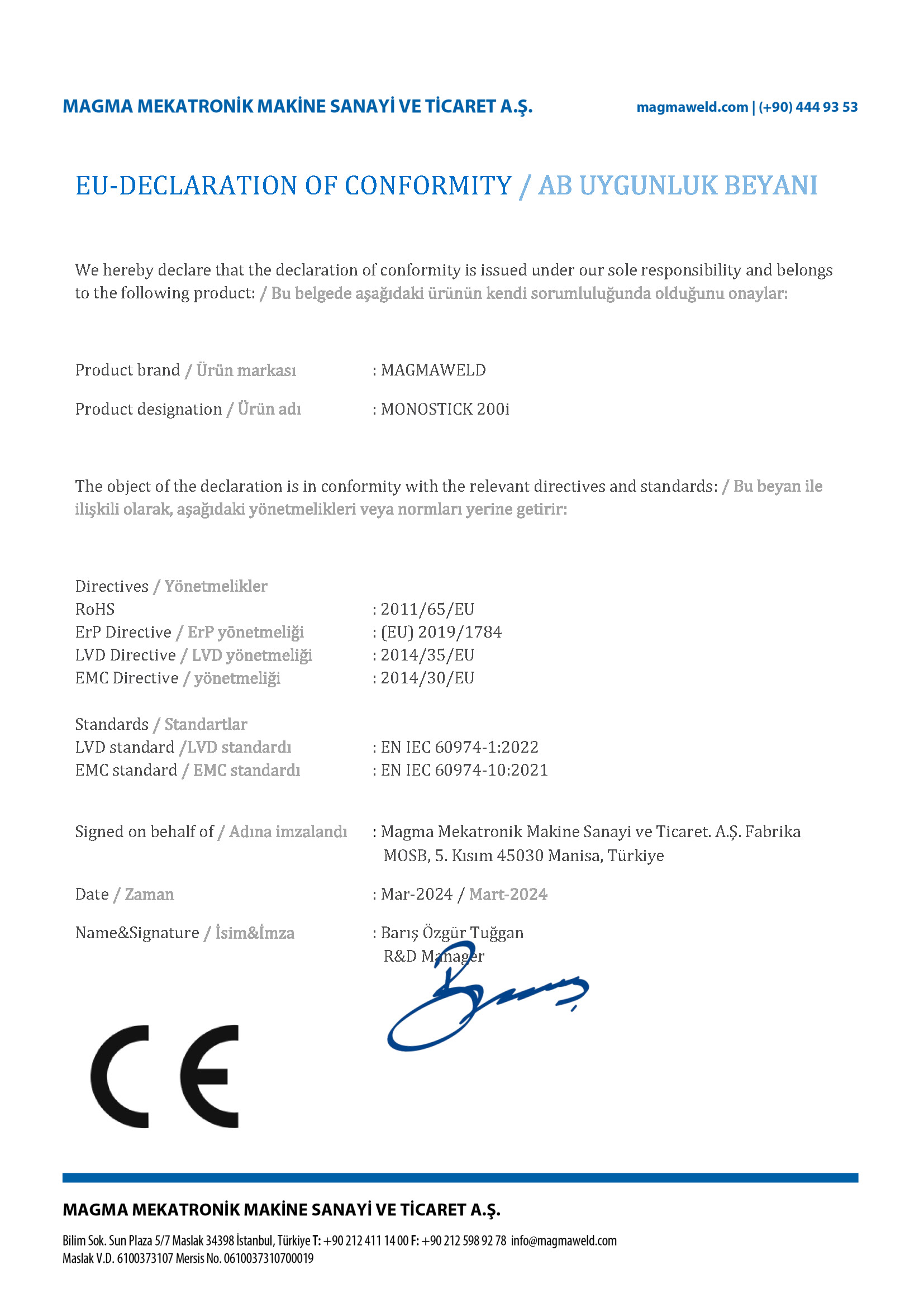

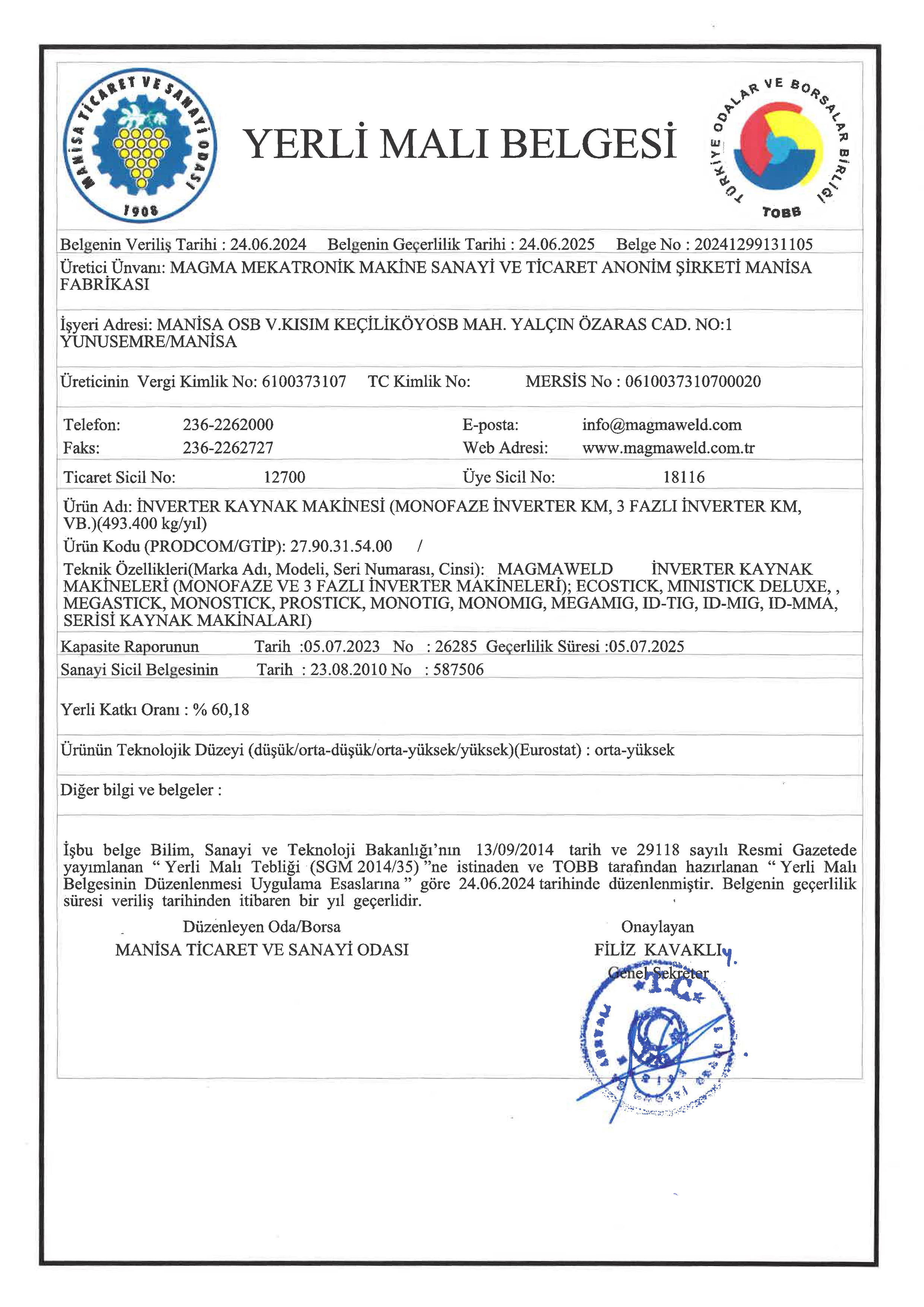

Approvals & Certificates
CE Turkish Product EAC
