Monotig 200Ip

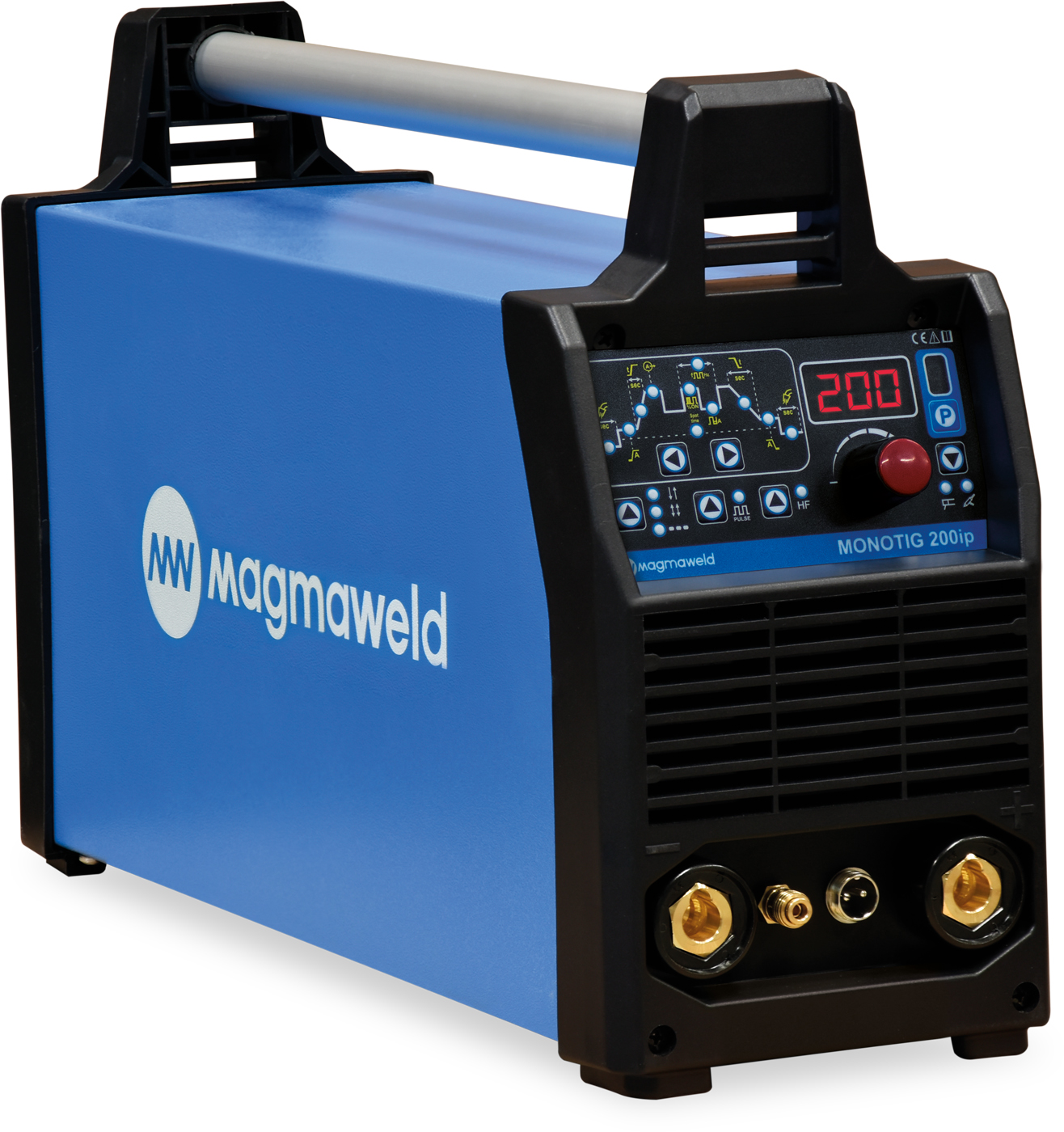

MONOTIG 200ip

Products:

GENERAL
Technical Details
Accessories
DOCUMENTS
  • Operates with 1 Phase 230V-50/60 Hz mains voltage and generators, tolerates voltage fluctuations up to 15%.
  • Due to inverter technology, energy efficiency is higher than the conventional machines.
  • TIG arc ignition by HF or Lift TIG.
  • Thin metal sheet welding due to its pulsing frequency up to 2 kHz.
  • Advanced TIG settings; Pre-Gas, Slope-Up, Welding Current, Pulse Frequency and Width, Slope-Down, Post-Gas and Crater Filling.
  • Offers 10 JOB memory.
  • Triggering via torch as 2/4 or with foot pedal as On/Off.
  • Welding parameters are monitored on the digital display.
  • Excellent welding characteristics for rutile and basic electrodes.
  • Advanced Stick Electrode options; Hot Start for easy ignition, Arc Force for arc stability, Anti Stick to prevent electrode sticking.
  • Stable welding current without loss of performance due to electric line fluctuations or with long welding and electrical cables.
  • Excellent for outdoor use with IP 23 protection class.
  • Portable lightweight design but withstands tough working conditions.
  • Fan cooling and thermal protection against overheating.
  • Standard accessories come with the machine.
Power Source
Mains Voltage (1Ph) 230 V
Input Power (TIG) 6.69 (%25) KVA
Input Power (MMA) 9.55 (%25) KVA
Welding Current Range 5 - 200 ADC
Nominal Welding Current 200 (%25) ADC
Open Circuit Voltage 65 VDC
Electrode Diameter 2.0 - 4.0 mm
Tungsten Electrode Diameter 1.0 - 2.40 mm
Dimensions (l x w x h) 521 x 160 x 311 mm
Weight (Net) 10.6 KG
Protection Class IP23
CODE Pcs Dimension Standard/Optional
7907000002 GAZ HORTUMU 2 Meters STANDARD
7905201603 Ground Clamp And Cable 16mm2/3mt (35 socket) STANDARD
7110018004 LAVA TIG 26-4 180A (%35 DC) - 4m STANDARD
7910005200 Water Cooling Unit CSP 40 Optional
7910000530 350A SULU TIG AKSESUAR KİTİ - 4m LAVA TIG 18W-4 + REGULATOR Optional
7910000510 250A TIG AKSESUAR KİTİ - 4m LAVA TIG 26-4 + REGÜLATÖR Optional
7910000100 TIG TASIMA ARABASI(150A MIG AKSESUAR KITI) Optional
7906201603 Electrode Clamp And Cable 16mm2/3mt (35 socket) Optional
7110038008 LAVA TIG 18W-8 380A (%100 DC) - 8m Optional
7110038004 LAVA TIG 18W-4 380A (%100 DC) - 4m Optional
7110018008 LAVA TIG 26-8 180A (%35 DC) - 8m Optional
7020001004 Argon Regulator G5/8'' ALTTAN AYARLI Optional
Product introduction
PDF
Operating Manual
PDF Search
Additional Documents
Approvals & Certificates

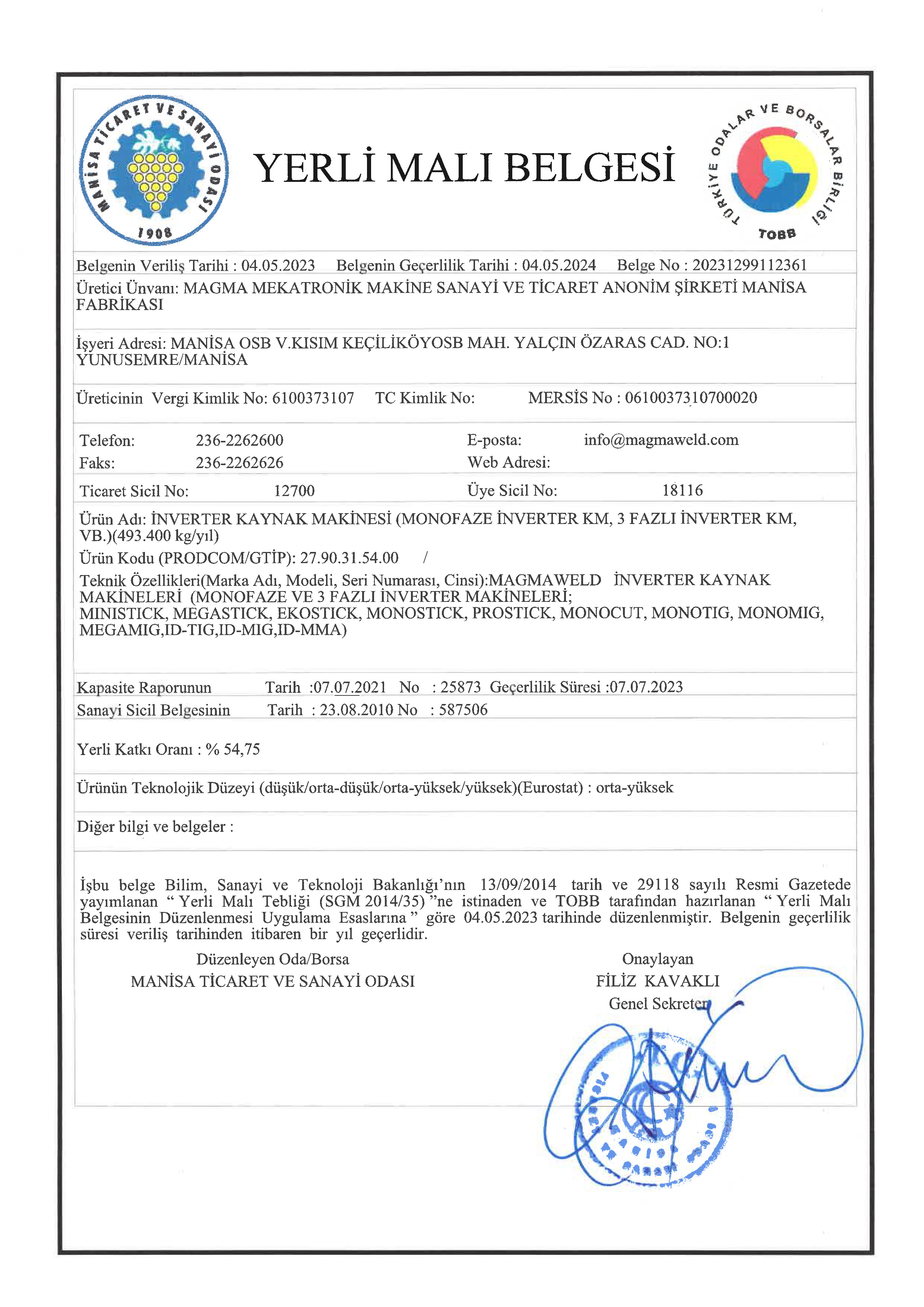

YERLİ MALI CE
