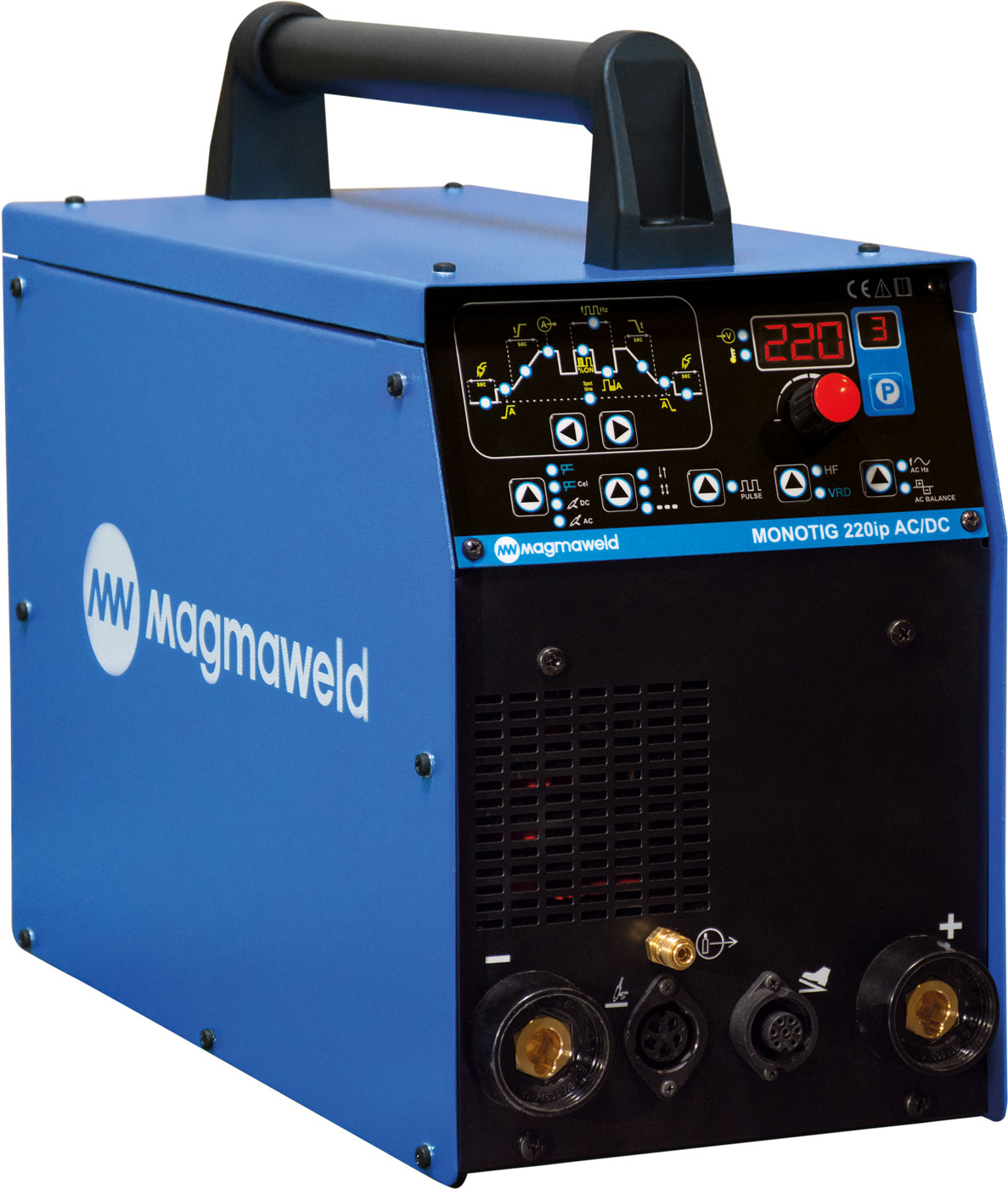

MONOTIG 220ip AC/DC

GENERAL
TECHNICAL SPECIFICATIONS
Accessories
DOCUMENTS
  • Operates with 1 Phase 230V-50/60 Hz mains voltage and generators, tolerates voltage fluctuations up to 15%. Extra protection against extremely high or low supply voltages.
  • Due to inverter technology, energy efficiency is higher than the conventional machines.
  • TIG arc ignition by HF or Lift TIG.
  • Excellent welding of thin metals due to very stable low current performance and pulse abilities.
  • Advanced TIG settings; Pre-Gas, Slope-Up, Welding Current, Pulse Frequency and Width, Slope-Down, Post-Gas and Crater Filling.
  • Due to its coldTIG feature (only in DC mode), burr-free, high quality, bright welding seams are obtained.
  • Offers 100 JOB memory.
  • Interval timer for spot welding.
  • 2/4 Triggering and Current Control via torch and foot pedal.
  • Welding parameters are monitored on the digital display.
  • Excellent welding characteristics for rutile and basic electrodes.
  • Advanced Stick Electrode options; Hot Start for easy ignition, Arc Force for arc stability, Anti Stick to prevent electrode sticking.
  • VRD for hazardous environments such as mines.
  • Stable welding current without loss of performance due to electric line fluctuations or with long welding and electrical cables.
  • Portable design, withstands tough working conditions.
  • Fan cooling and thermal protection against overheating.
  • Standard accessories come with the machine.
Power Source
Mains Voltage (1Ph) 230 V
Input Power (MMA) 9,2 (%15) kVA
Power Source Efficiency MMA 84,52% TIG 81,87% %
Input Power (TIG) 8,05 (%20) kVA
IDLE State Power Consumption N/A (EN IEC 60974-1,Annex M) W
Welding Current Range 3 - 220 ADC
Nominal Welding Current 220 (%20) ADC
Open Circuit Voltage 87 VDC
Electrode Diameter 2.00 - 5.00 mm
Tungsten Electrode Diameter 1.00 - 2.40 mm
Dimensions (l x w x h) 529 x 221 x 395 mm
Weight (Net) 16.5 kg
Cooling Type Air
Protection Class IP21
Code Name Dimension Standard/Optional

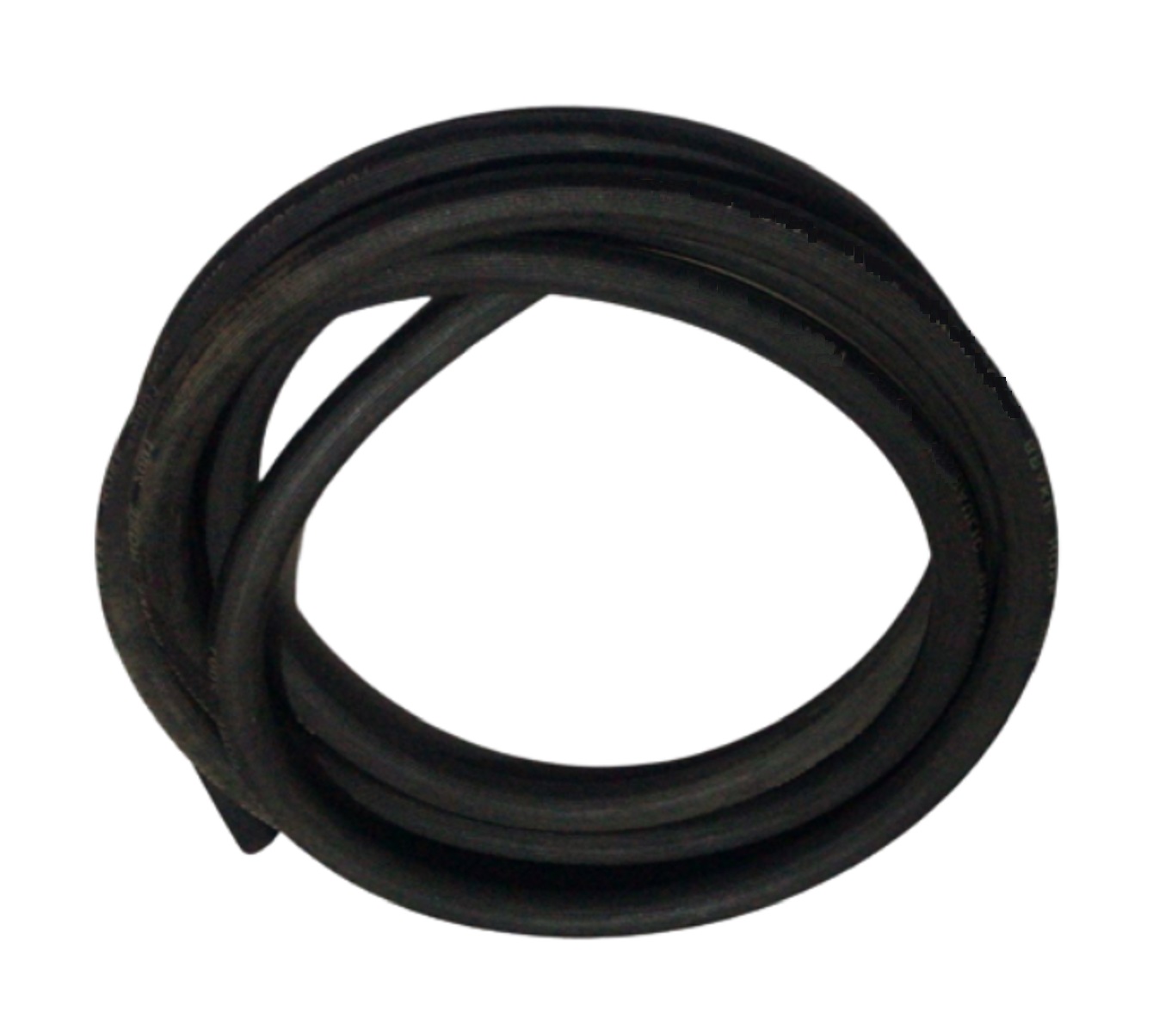

7907000002 Gas Hose 2 METRE Standard

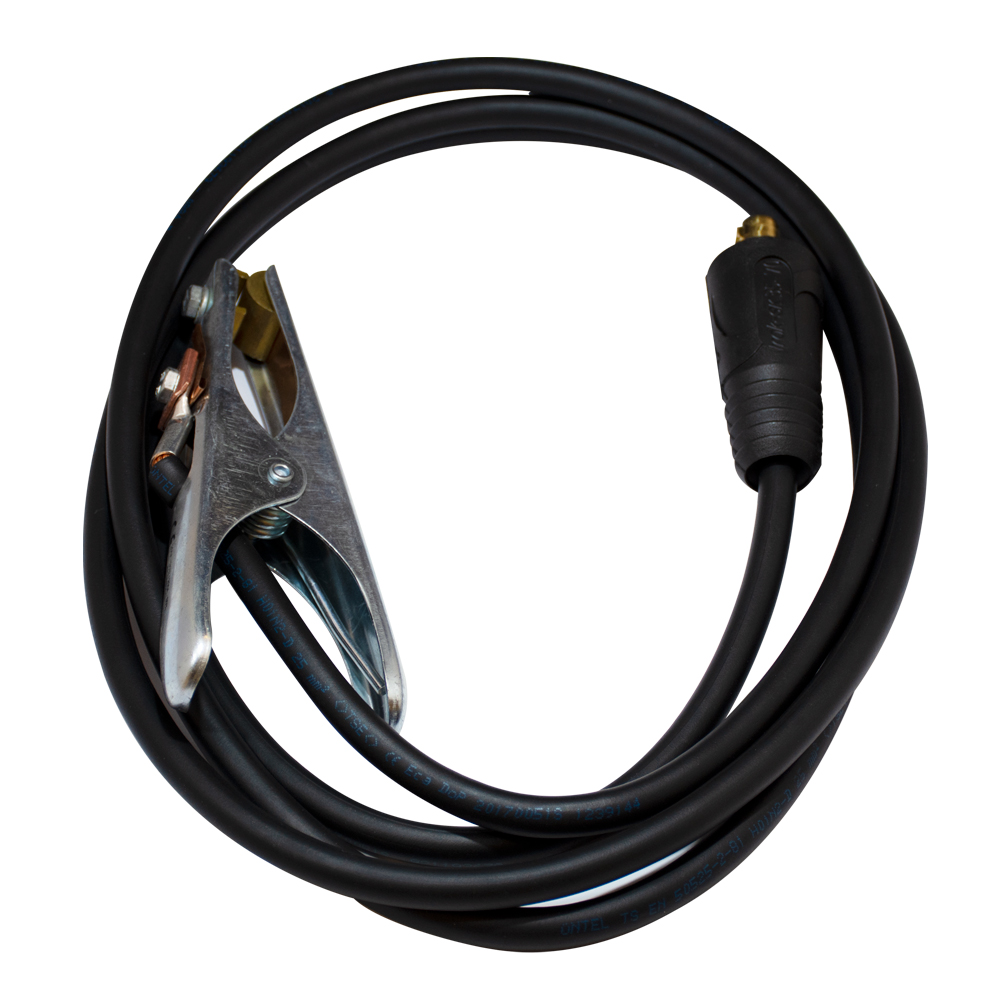

7905201603 EARTH CLAMP and CABLE 16mm2/3mt (35 socket) Standard
7110018004 LAVA TIG 26-4 180A (%35 DC) - 4m Standard
7910005210 WATER COOLING UNIT CSP 40 Optional
7910000530 350A TIG TORCH ACCESSORIES/WATER - 4m LAVA TIG 18W-4 + REGULATOR Optional
7910000510 250A TIG ACCESSORIES KIT - 4m LAVA TIG 26-4 + REGULATOR Optional
7910000200 TIG MACHINE TROLLEY ID SERIES 4 WHEEL Optional
7910000140 TIG PEDAL ID TIG-MONOTIG 220IP AKIM AYARLI Optional
7910000120 TIG PEDAL ID TIG-MONOTIG 220IP (ON/OFF) Optional
7906201603 ELECTRODE CLAMP AND CABLE 16mm2/3mt (35 socket) Optional
7110038008 LAVA TIG 18W-8 380A (%100 DC) - 8m Optional
7110038004 LAVA TIG 18W-4 380A (%100 DC) - 4m Optional
7110018008 LAVA TIG 26-8 180A (%35 DC) - 8m Optional
7020001004 ARGON PRESSURE REGULATOR G5/8'' Bottom Adjustment Optional
Product Brochure
PDF
Operating Manual
PDF Search
Additional Documents

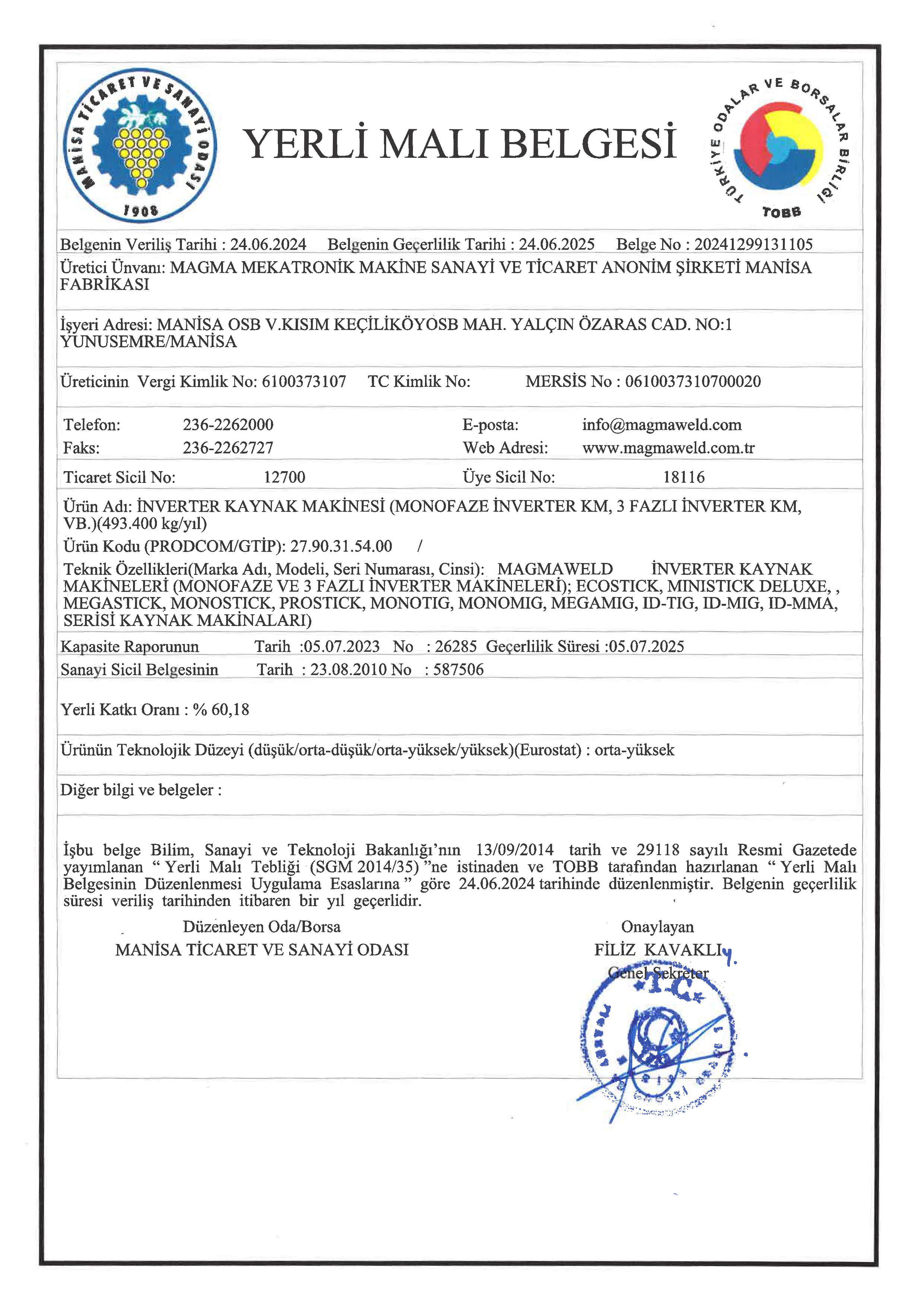

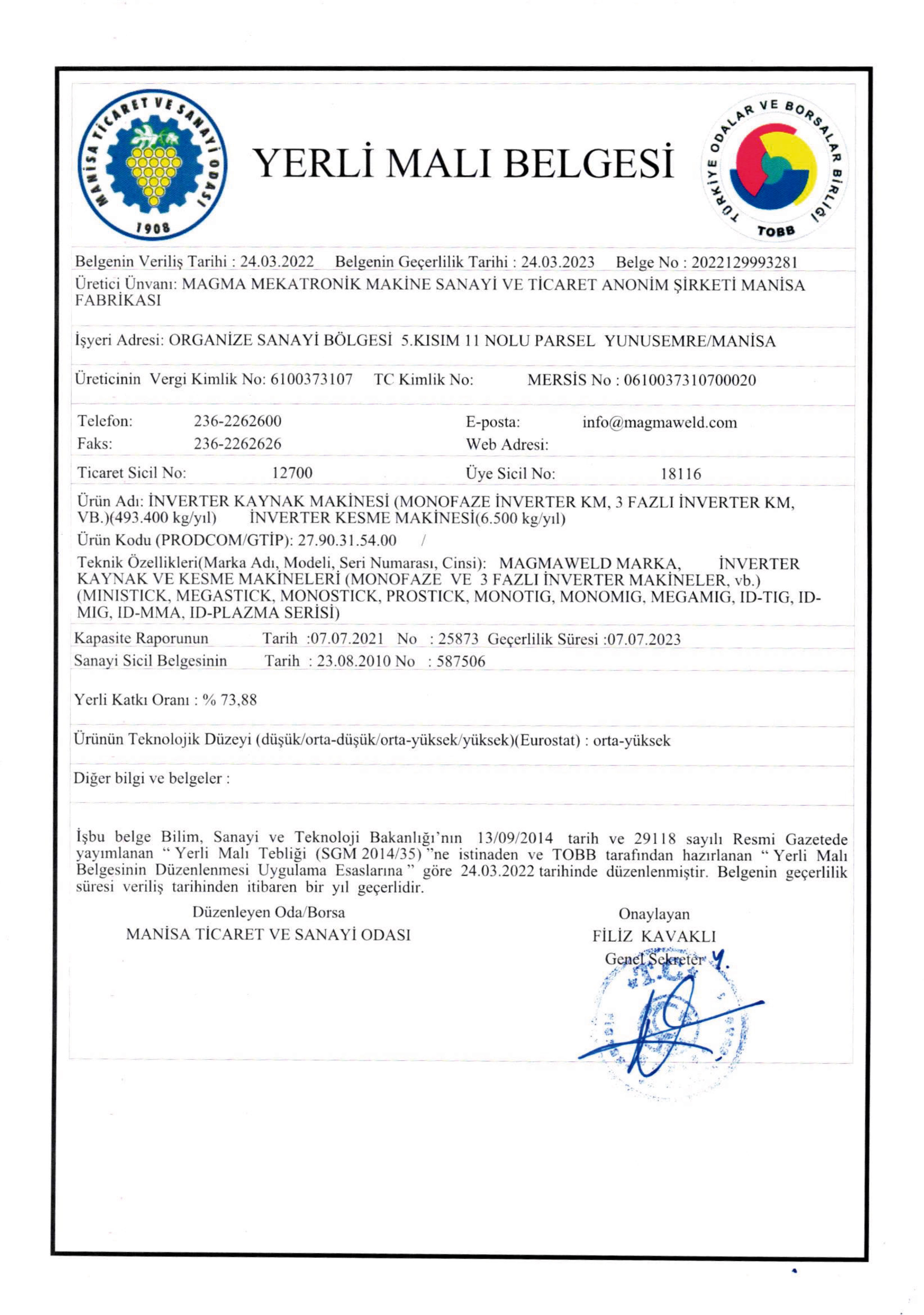

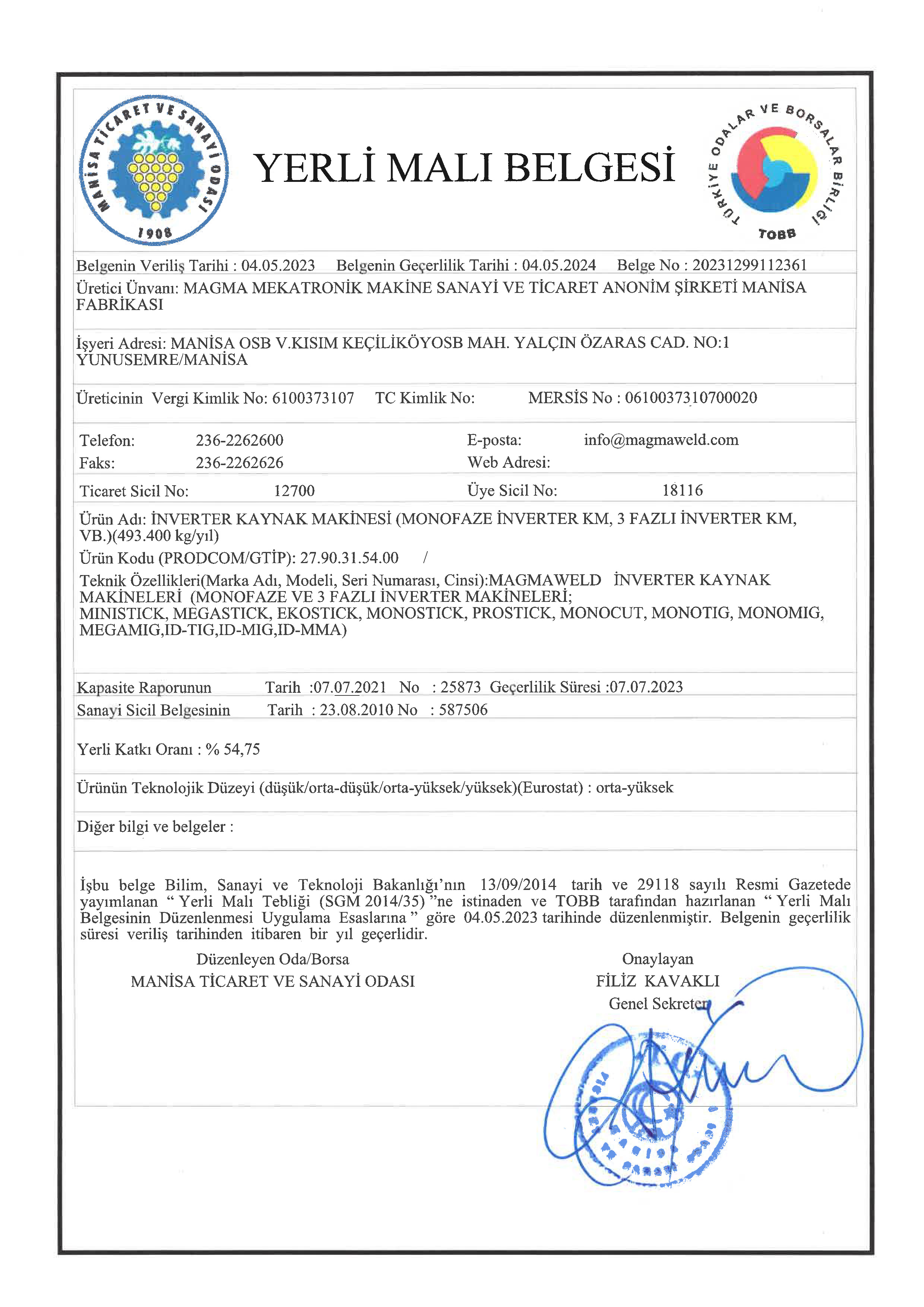

Approvals & Certificates

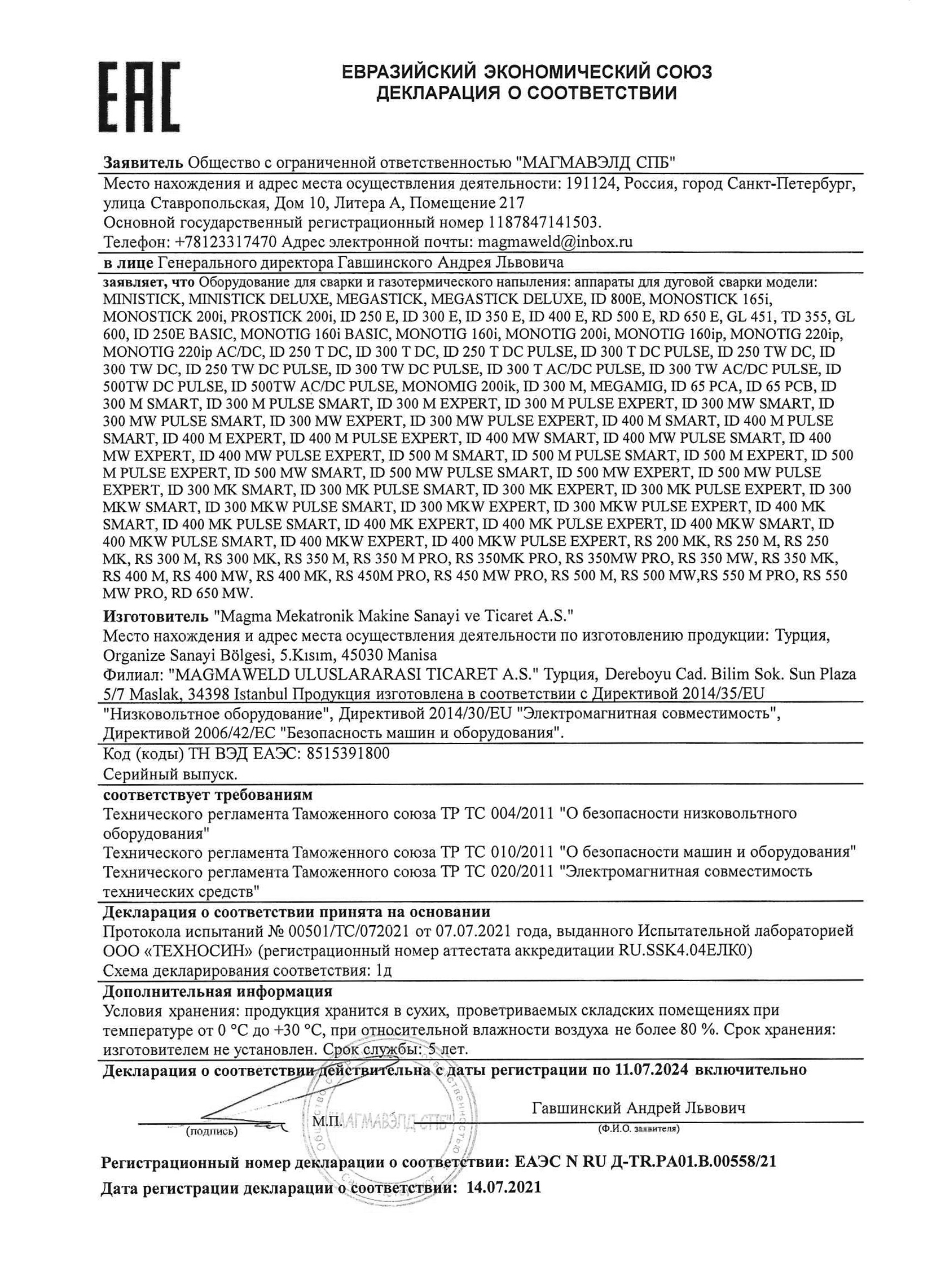

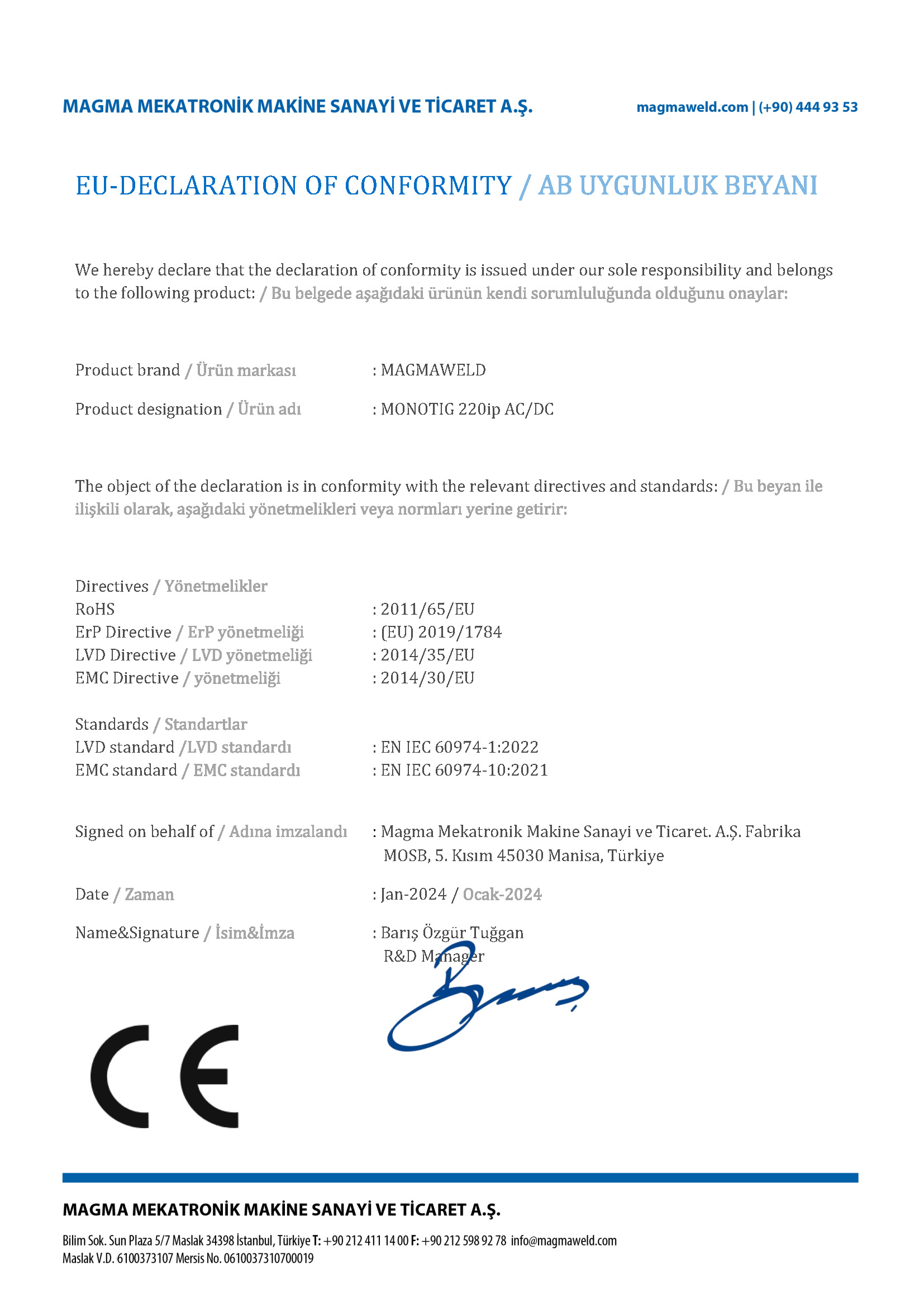

CE EAC Turkish Product
