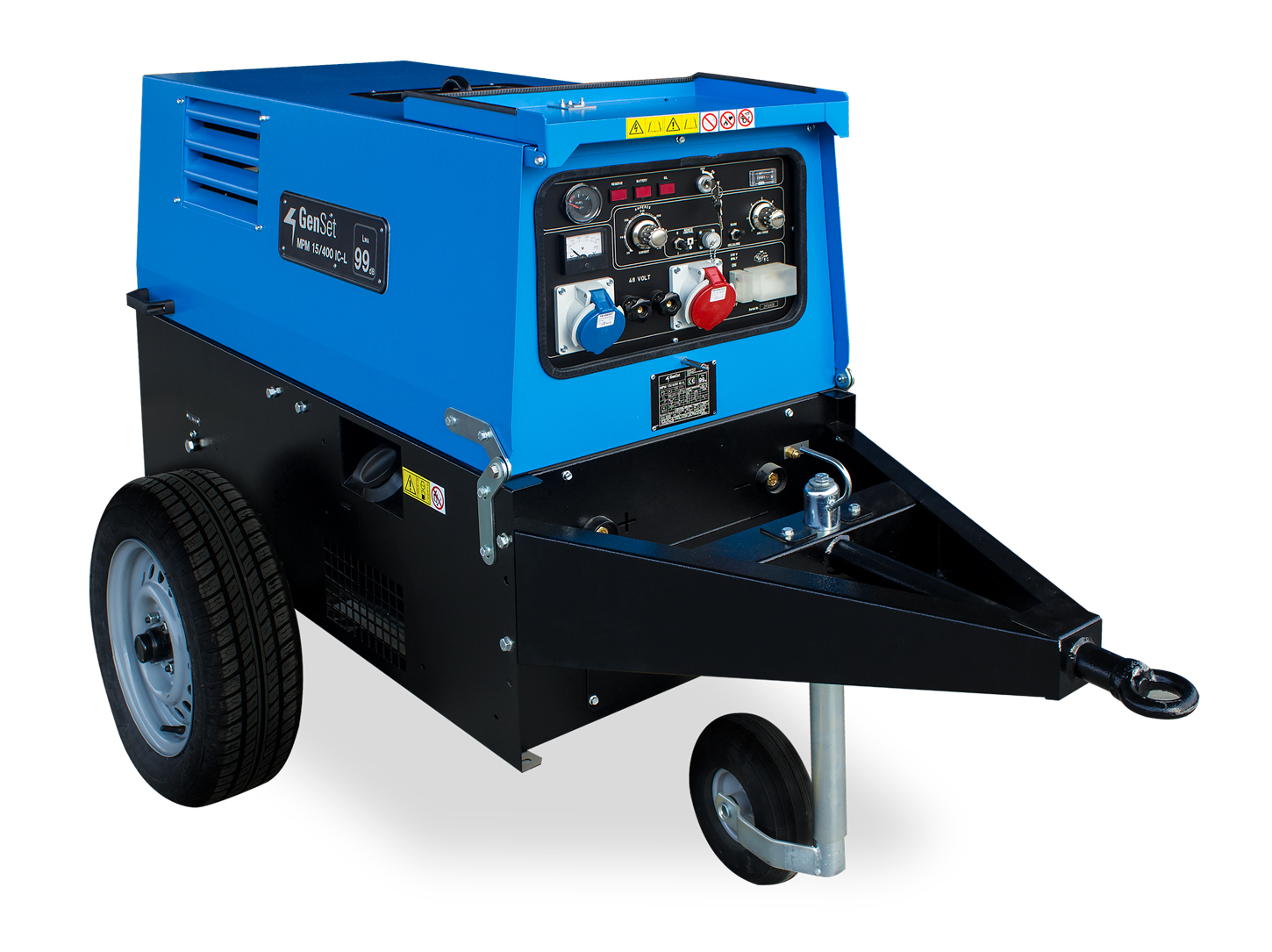

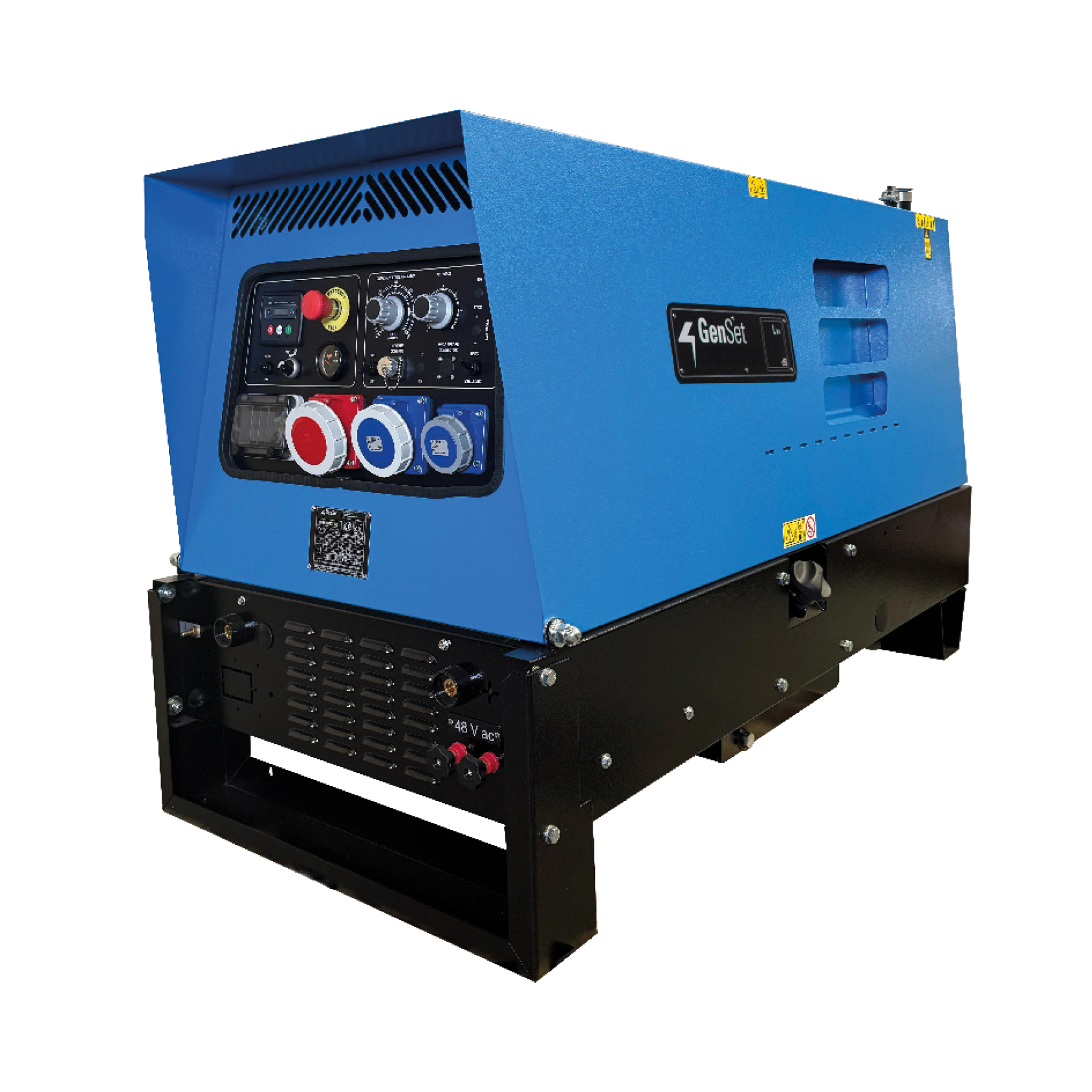

MPM 15/400 IKA

Water cooled diesel engine generator set designed for welding, whereas it can be used as a normal generator with standard outputs 400V/50 Hz (3~), 230V/50 Hz (1~). Optionally, a 48V/110V output is also available.
In addition to Rutile, Basic and Cellulosic coated electrode welding, Carbon Cutting, TIG (Lift TIG) and MIG/MAG welding with optional wire feeding unit are also possible.
Welding current can be adjusted through the potentiometer on the front panel and also with the wired remote control.
Current, voltage, fuel level and operating time indicators are on the front panel.
No loss of performance with long welding cables.
Especially designed for outdoor use, protection class is IP23.
Ignites with a 12V internal battery and switches to idle position automatically when there is no load.
Warnings are; low fuel level, low oil pressure, battery charge failure and protections are; against current leakage and overheating.

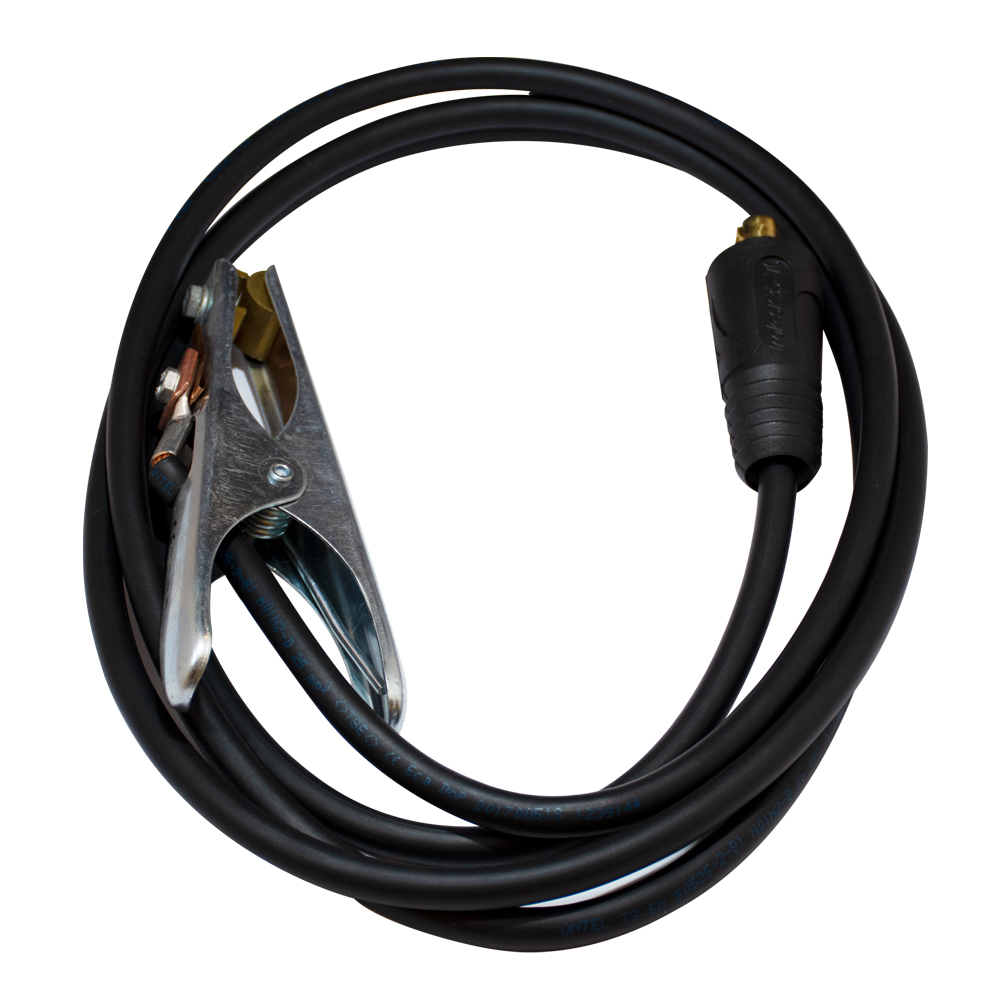

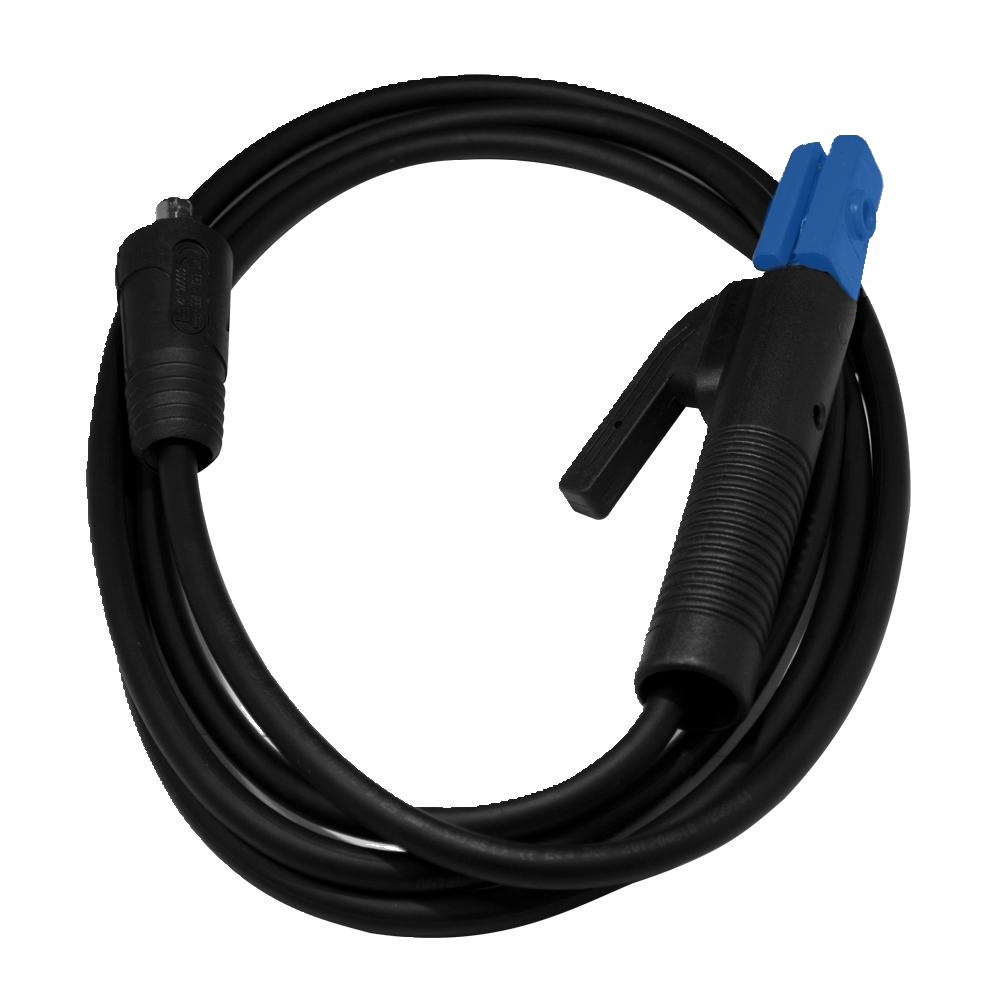

Standard accessories come with the machine.

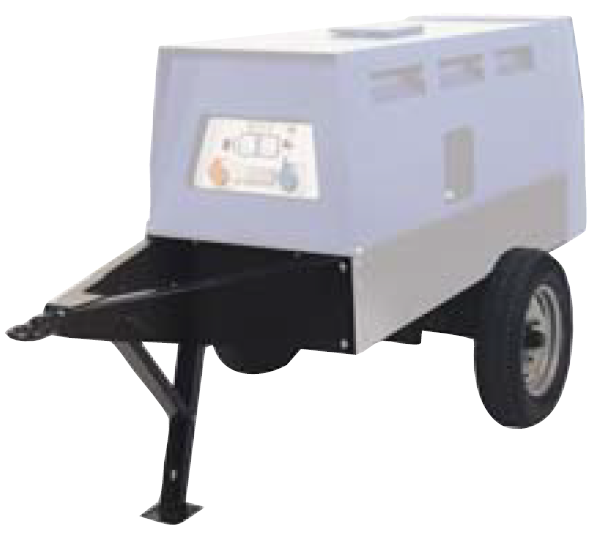

Trailer is Optional.

Engine
Type	Kubota D1105
Power	24.6	HP
Total Cylinder Volume	1123	cm3
Number of Cylinders	3
Cooling Type	SU
Operation Type	ELEKTRİK
Fuel	MOTORİN
Fuel Consumption	4.9 (%75)	lt/hr
Fuel Tank Volume	38	lt
Dimensions (l x w x h)	1625 x 772 x 1065	mm
Weight (Net)	450	kg
Generator
Max. Power (1Ph)	5 kVA - 230 VAC
Max. Power (3Ph)	15 kVA - 400 VAC
Power Factor	0.80
Welding Circuit (DC)
Welding Current Range	30 - 400	A
Open Circuit Voltage	70	V
Electrode Diameter	2.00 - 6.00	mm
Maximum Carbon Gauging Electrode	6	mm
Nominal Welding Current	370 A - 35 VDC (%35)	ADC
