MPM 20/500 P

Products:

Product Brochure : PDF
Package:
Adet sayısı Label
Paket Fiyatı:
ADD TO CART
GENERAL
TECHNICAL SPECIFICATIONS
Accessories

» Water cooled diesel engine driven welders with auxiliary outputs of 400 V / 50 Hz (3~), 230 V / 50 Hz (1~)

» CC characteristics for Rutile, Basic and Cellulosic coated electrodes, Carbon Gauging  and  Scratch TIG.

» Optional CV characteristics for MIG/MAG processes and wire feeder.

» Current adjustments are via potentiometer on the front panel or by remote control box.

» Ampere, volt, fuel level and operating hours indcators are located on the front panel.

» Especially designed for outdoor use; protection class is IP 23S, no performance loss with long welding cables, large wheeled trailer to be lifted by

trucks. (optional )

» Electric start by built-in 12 volts battery and automatically switching to idle at no-load.

» Fault signals are, allow fuel level, low oil pressure, battery charge failure and protection against current leakage and overheating.

» Electrode-holder, earth clamp are included in the standard equipment.

» Optional polarity switch function add on.

EN 60974

Engine
Type Yanmar 4TNV98
Power 46,1 HP
Total Cylinder Volume 3319 cm3
Number of Cylinders 4
Cooling Type SU
Operation Type ELEKTRİK
Fuel Consumption 6.4 (%75) lt/hr
Fuel Tank Volume 70 lt
Dimensions (l x w x h) 2015 x 900 x 1300 mm
Weight (Net) 975 kg
Generator
Max. Power (1Ph) 6,6 kVA - 230 VAC
Max. Power (3Ph) 20 kVA - 400 VAC
Power Factor 0.80
Welding Circuit (DC)
Nominal Welding Current 500A %60 (40V) ADC
Nominal Welding Current 400A %100 (36V) ADC
Open Circuit Voltage 70 V
Electrode Diameter 2.00 - 6.00 mm
Maximum Carbon Gauging Electrode 10 mm
Code Name Dimension Standard/Optional
7906407005 ELECTRODE CLAMP AND CABLE 70mm2/5mt (35 socket) Standard
7905407003 EARTH CLAMP and CABLE 70mm2/3mt (35 socket) Standard
7950000009 REMOTE CONTROL KIT GENERATOR 20M MAGMAWELD Optional
7950000007 POLARITY CHANGING KIT Genset Optional

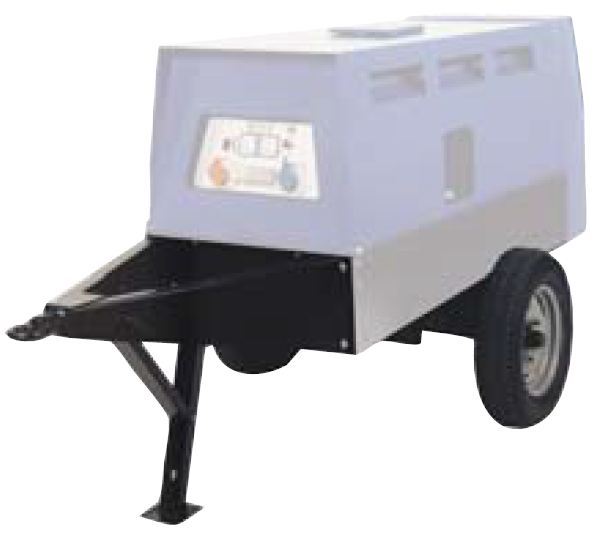

7950000004 TRAILER-2 WHEELS GRT2W - MPM 20/500 Y Optional
