OG 2

Standards

AWS/ASME SFA - 5.2 R60
EN 12536 O II
TS 3623 EN 12536 O II

Properties And Applications

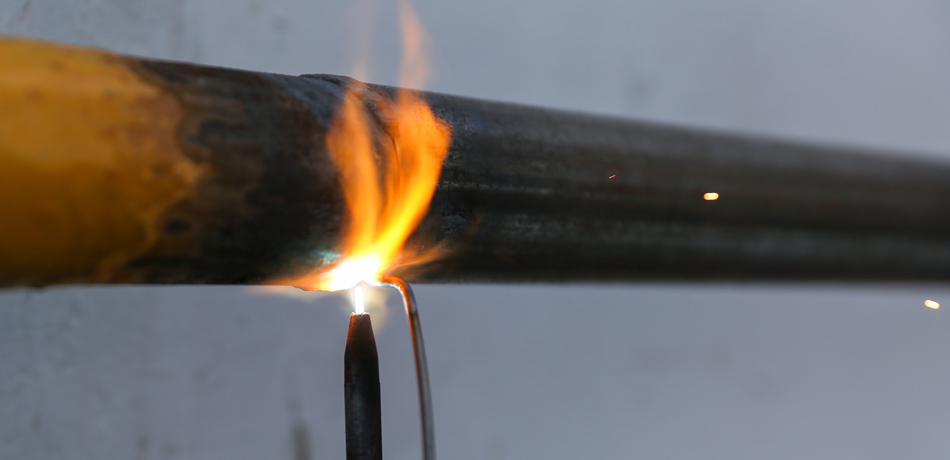

Low carbon steel welding rod, for oxy-acetylene gas welding, containing slightly higher manganese. It is a general purpose welding rod with medium strength, used for welding carbon steels and low alloy steels with tensile strenghts up to 410 N/mm². Commonly used for carbon steel pipe installation and repair works in power plants, process piping, machine and agricultural tool repair, joining steel plates and wrought irons, filling holes and edged on wrought iron, where an intense heat source is required for straightening, forming, preheating post weld heat treatment, regardless of the complexity and position in which welding has to be done. Welding shall be performed in neutral flame characteristics. It has got a fluid weld puddle.

Materials

Width DIN
S235J2 St 37.3
P235TR2 St 37.4
P235GH- P265GH H I, H II

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMn
Weld Deposit0.100.301.00

Typical Mechanical Values of Weld Metal(%)

Test ConditionProtection GasYield Strength (N/mm²)Tensile Strength (N/mm²)Elongation A5 (%)Charpy V-Notch Properties (J)
As weldedOxy-Fuel3004402020°C → 50

* Chemical compositon and mechanical properties are valid when using shielding gas .

Application Information

Welding Positions :
Og 2 Kaynak Pozisyonu Og 2 Kaynak Pozisyonu Og 2 Kaynak Pozisyonu Og 2 Kaynak Pozisyonu Og 2 Kaynak Pozisyonu Og 2 Kaynak Pozisyonu

Welding Parameters & Efficiency :

Diameter x Length (mm)
1.60x1000
2.00x1000
2.40x1000
3.20x1000
4.00x1000

Packaging Information

Product CodeDiameter x Length (mm)Quantity per BoxBox Gross Weight (kg)Boxes per Outer BoxOuter Box Gross Weight (kg)Packaging Type
21161GBKM21.60x10005 kg5.2045.20Cardboard Tube
21161HBKM22.00x10005 kg5.2045.20Cardboard Tube
21161IBKM22.40x10005 kg5.2045.20Cardboard Tube
21161LBKM23.20x10005 kg5.2045.20Cardboard Tube
21161MBKM24.00x10005 kg5.2045.20Cardboard Tube

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
