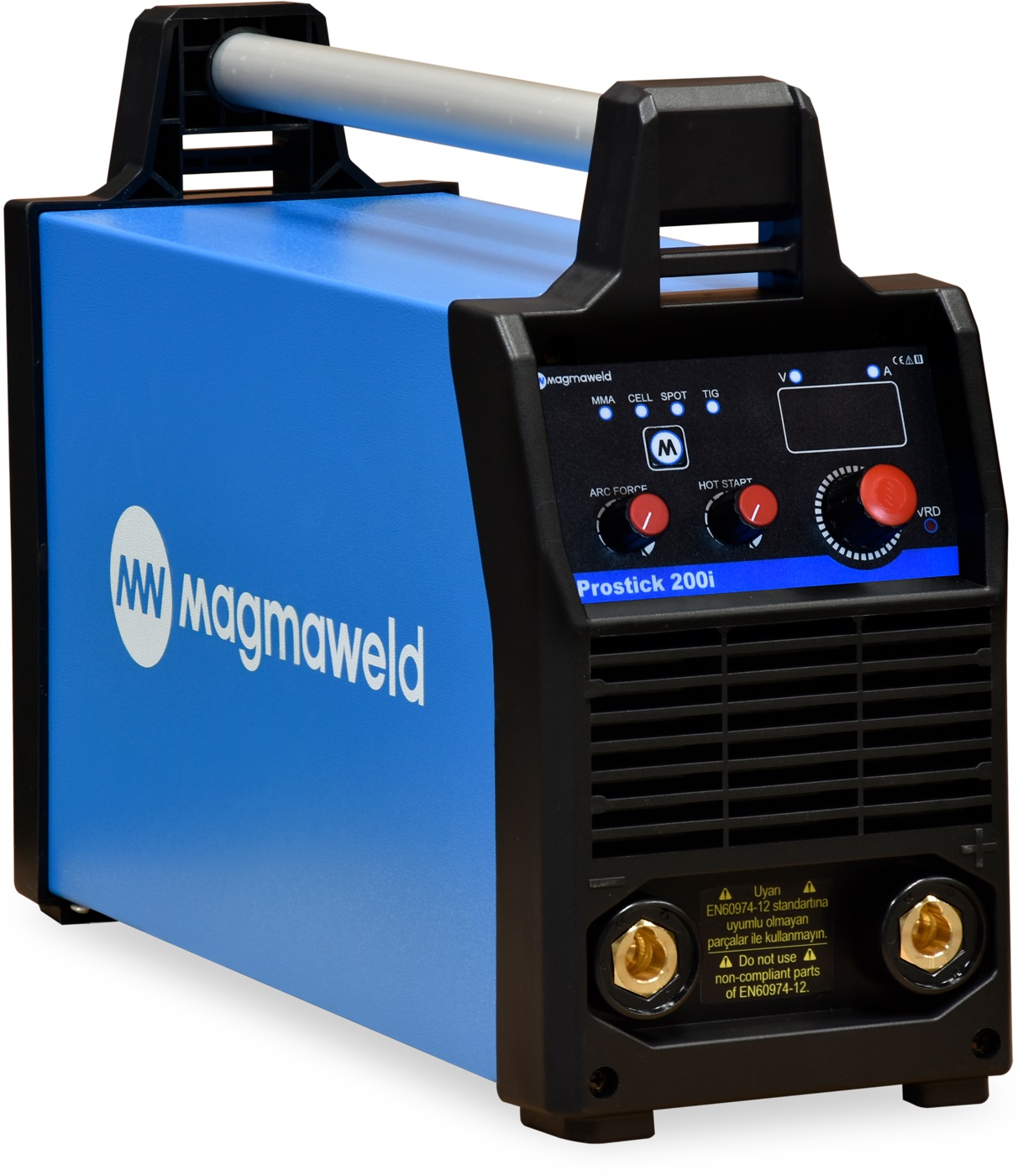

Prostick 200I

PROSTICK 200I

Products:

Package:
Adet sayısı Label
Paket Fiyatı:
ADD TO CART
GENERAL
Technical Details
Accessories
DOCUMENTS
  • Operates with 1 Phase 230V-50/60 Hz mains voltage and generators over 10 kVA, tolerates voltage fluctuations up to 15%. Auto-Protection against low and high input voltages.
  • Due to inverter technology, energy efficiency is higher than the conventional machines.
  • Offers excellent welding performance with all types of electrodes, including cellulosic and aluminum.
  • Advanced options; Hot Start for easy ignition, Arc Force for arc stability, Anti Stick to prevent electrode sticking and Interval Timer for Spot welding.
  • VRD for hazardous environments such as mines.
  • TIG welding of thin metals is possible due to its stable low current starting from 3 Ampere. Arc Ignition is Lift TIG.
  • Stable welding current without loss of performance due to electric line fluctuations or with long welding and electrical cables.
  • Smart Fan dynamically regulates the cooling performance in accordance with the heating of the appliance.
  • Smart Thermic Protection continuously monitors the inner temperature and if necessary stops the machine before the thermic switch.
  • Portable lightweight design but withstands tough working conditions.
  • Designed also for outdoor use, IP 23 protection class.
  • Standard accessories come with the machine.
Power Source
Mains Voltage (1Ph) 230 V
Input Power 9.68 kVA
Welding Current Range 5-200 A
Devrede Kalma Oranı (@25°C) 145 A (%100)
EN 60974 -1 (I/X%) 200/14
Devrede Kalma Oranı (@25°C) 200 A (%35)
Electrode Welding Capacity (3.25mm) 47 Pcs/Hr
Electrode Welding Capacity (4.00mm) 40 Pcs/Hr
Electrode Welding Capacity (5.00mm) 28 Pcs/Hr
Open Circuit Voltage 85 V
Electrode Diameter 1.60-5.00 mm
Dimensions (l x w x h) 440x155x310 mm
Weight (Net) 12,5 KG
Protection Class IP23
CODE Pcs Dimension Standard/Optional
7906202503 Electrode Clamp And Cable 25mm2/3mt (35 socket) STANDARD
7905212503 Ground Clamp And Cable 25mm2/3mt (35 socket) STANDARD
7111020008 LAVA TIG 20V-8 (VALVED) 200A (%35 DC) Optional
7111020004 LAVA TIG 20V-4 (VALVED) 200A (%60 DC) Optional
Product introduction
PDF
Operating Manual
PDF Search
Additional Documents
Quick Start

Approvals & Certificates

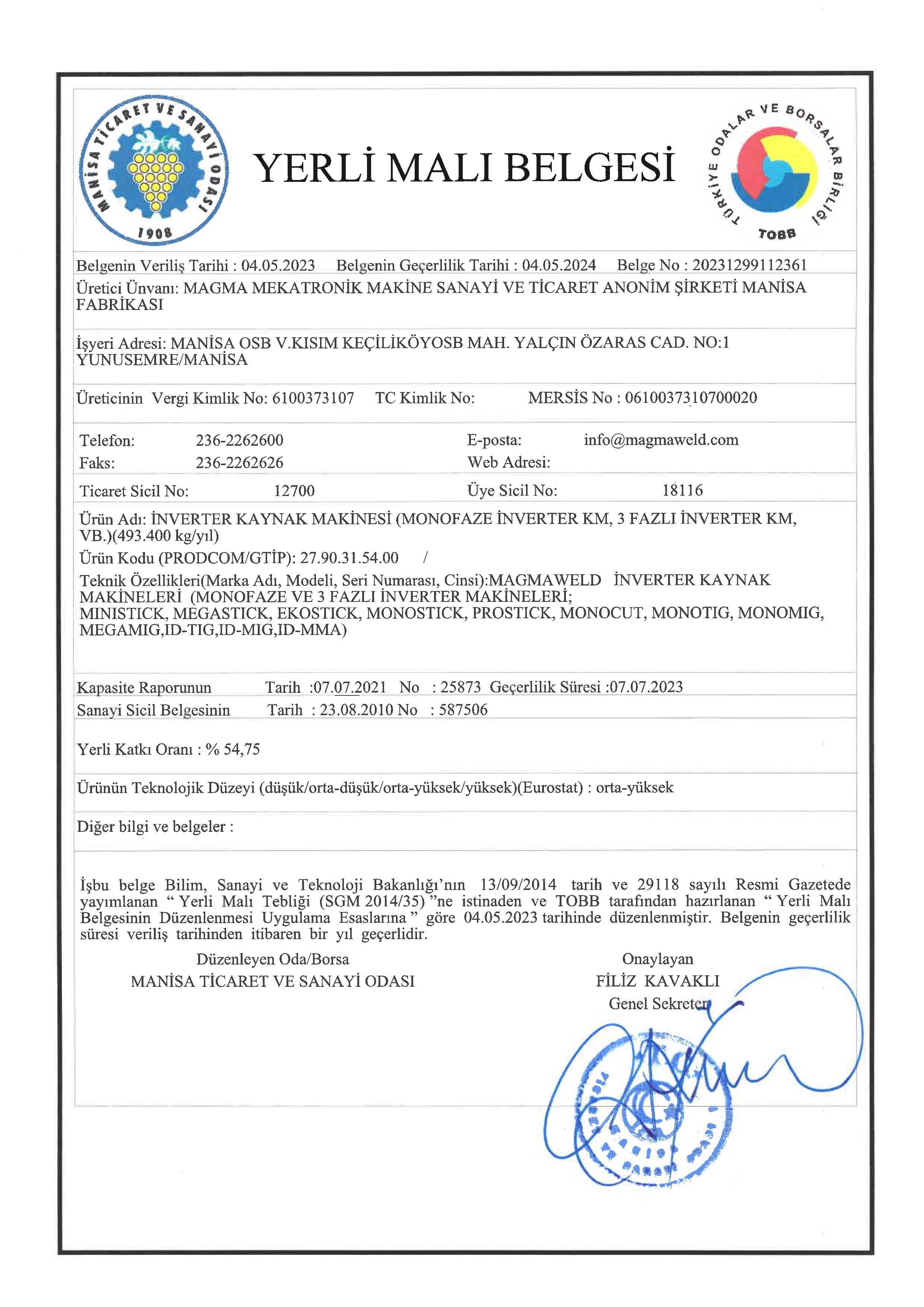

EAC YERLİ MALI CE
