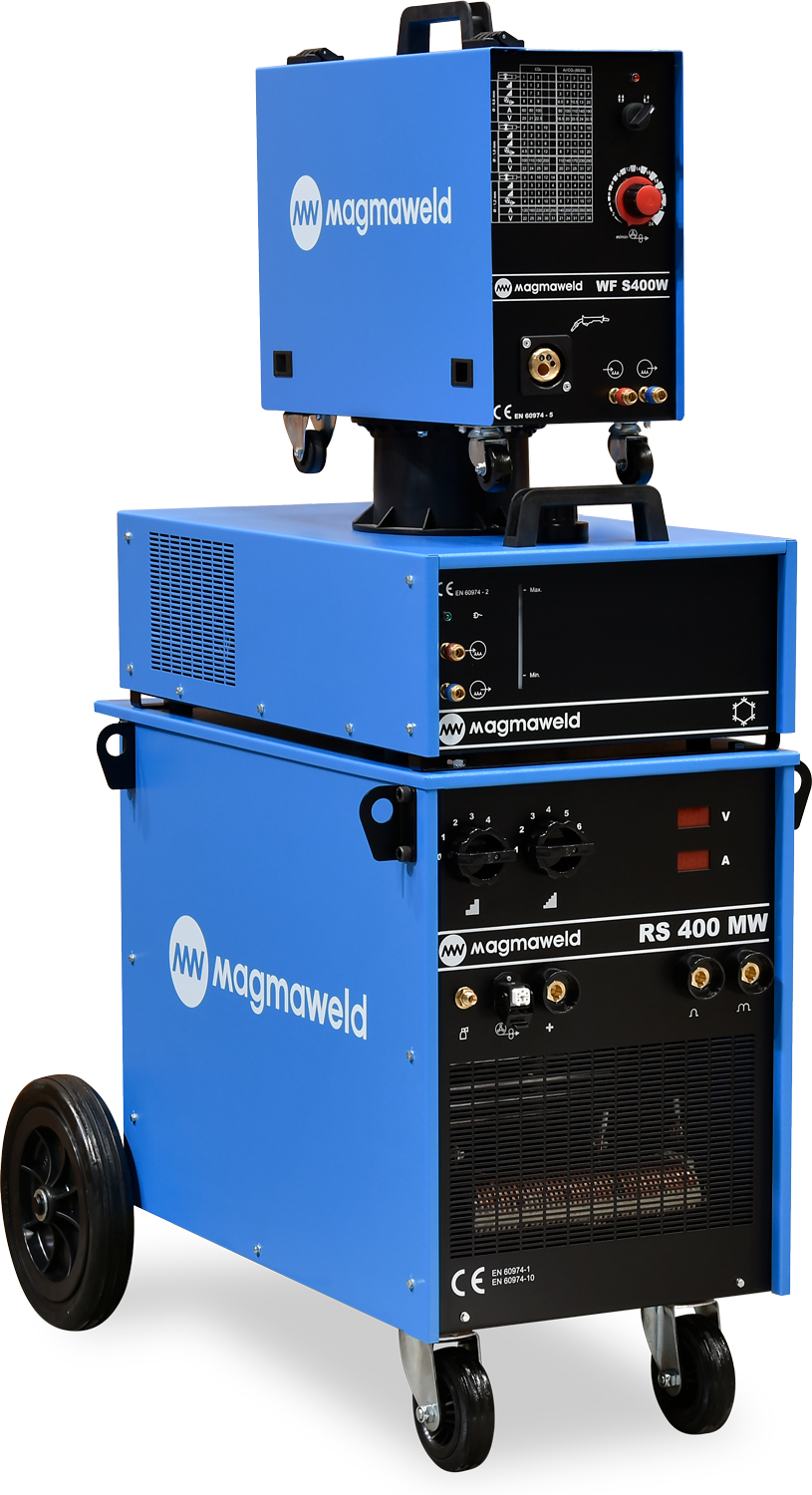

RS 400 MW

GENERAL
TECHNICAL SPECIFICATIONS
Accessories
DOCUMENTS

  • Operates w­ith 3 Phase 400V - 50/60Hz.

  • Excellent weldi­ng characteri­sti­cs w­ith all types of sol­id and flux cored w­ires.

  • Seperate Wi­re Feed­ing System for spools 300, 270 and 200 mm i­n di­ameters and speci­al wi­re ­inlet for drums.

  • Standard harness between w­ire feeder box and the base machi­ne i­s 5m long. Upon request this could be extended up to 30m.

  • The 4 Wheel dr­ive system assures good feedab­il­ity wi­th longer torches and less deformat­ion of del­icate wi­res l­ike alumi­num and fluxcored w­ires.

  • Weld­ing voltage i­s adjusted from the front panel of the base mach­ine and wi­re feed speedi­ng ­is adjusted on the front panel of the wi­re feeder box. Weld­ing voltage & current are moni­tored on the d­igi­tal d­isplays. Opti­mum weld­ing parameters could be selected from the chart on the front panel of the wi­re feeder box.

  • Soft Start for spatter free arc ­ign­it­ion, pre-gas and post-gas for automati­on, wi­re burn-back ti­me for ant­ist­ick­ing could be set ­ins­ide the w­ire spool cabi­net.

  • Tr­igger latch­ing (2/4) sw­itch and manual wi­re feed­ing (­inch­ing) button for thread­ing.

  • For low spatter weld­ing, accord­ing to the current range 2nd and 3rd work-p­iece outlets are prov­ided.

  • Protect­ion Class ­is IP 21.

  • Seperate powerful water cool­ing un­it ­is able to support ­in warm cl­imates and long harnesses.

  • Bu­ilt-in trolly wi­th gas bottle platform wi­th 220V standard electr­ic socket for CO2 gas heaters.

  • Strong outer case made by 1.2 mm steel sheet and coated wi­th electrostat­ic pai­nt­ing for a corrosi­on free longer servi­ce l­ife.

  • Fan cooled and thermally protected agai­nst overheat­ing.

  • Earth clamp, electr­ic-l­ine cable and gas bottle hose are ­included ­in the standard equ­ipment.

Power Source
Mains Voltage (3Ph) 400 V
Input Power 19.4 (%50) kVA
Welding Current Range 45 - 400 A
Nominal Welding Current 400 (%50) A
Open Circuit Voltage 20-48 V
Voltage Adjustment Steps 4 x 7
Weight (Net) 190 kg
Protection Class IP21
Wire Feeder System
Welding Wire Diameter 0.80 - 1.60 mm
Standard Roller Groove Size 1.00 - 1.20 mm
Wire Feeder Roller Diameter 4x37 mm
Wire Feeding Speed 1 - 24 m/min
Torch Trigger Control 2 / 4
Spool Capacity 20 kg
Water Cooling Unit
Cooling Power 2.11 kW
Dimensions (l x w x h) 770 x 490 x 280 mm
Code Name Dimension Standard/Optional
7907000002 Gas Hose 2 METRE Standard
7905203505 EARTH CLAMP and CABLE 35mm2/5mt (35 socket) Standard
7120050003 LAVA MIG 50W-3 500A (%100 CO2) - 3m Optional
7020009002 CO2 GAS HEATER MAGMAWELD (220V / 230V-75W) Optional
7020001005 CO2 PRESSURE REGULATOR W21,8x1/14'' Bottom Adjustment Optional
7020001004 ARGON PRESSURE REGULATOR G5/8'' Bottom Adjustment Optional
Product Brochure
PDF
Operating Manual
PDF Search
Additional Documents
Quick Start

Wire Feed Unit Quick User Manual

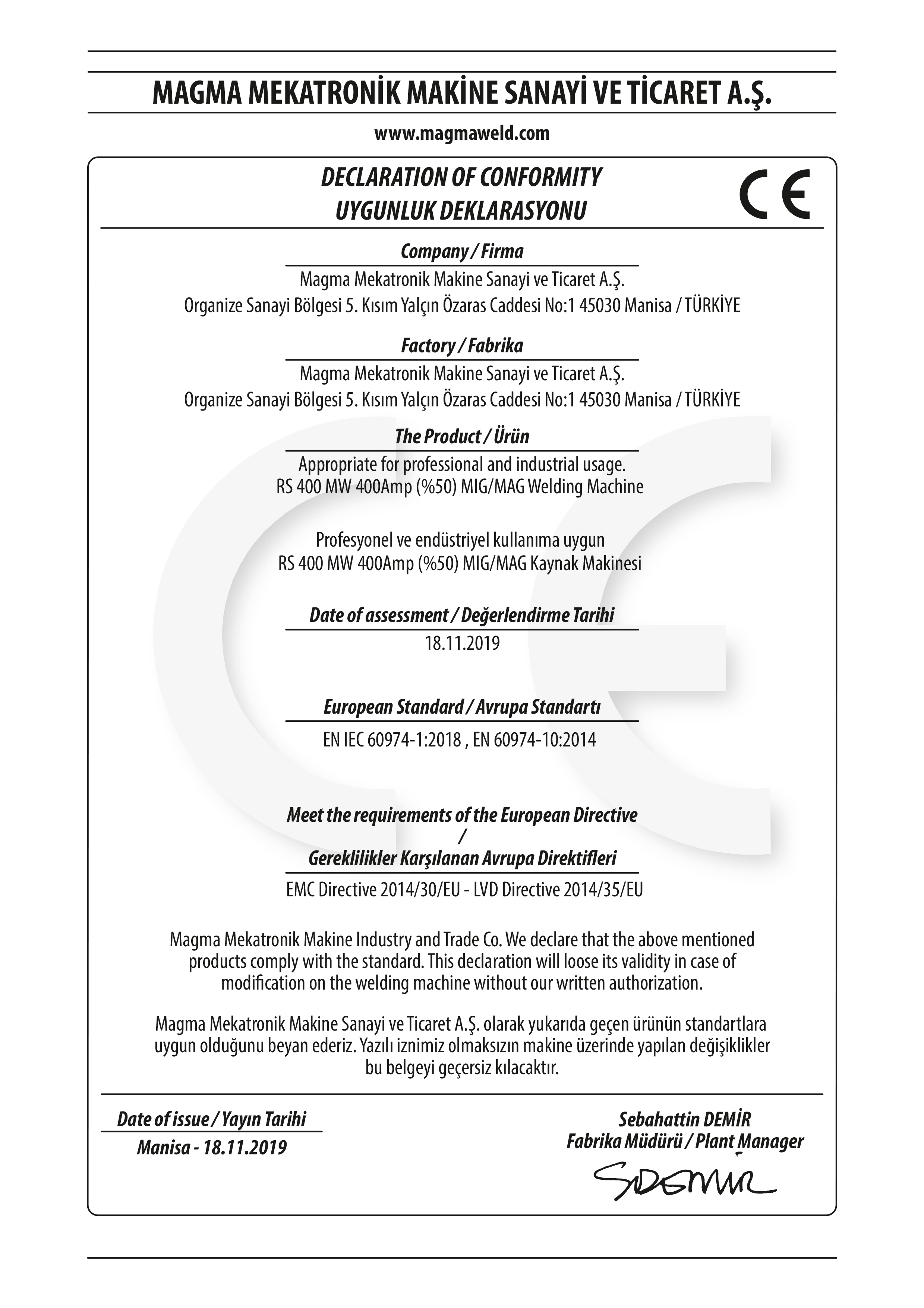

Approvals & Certificates

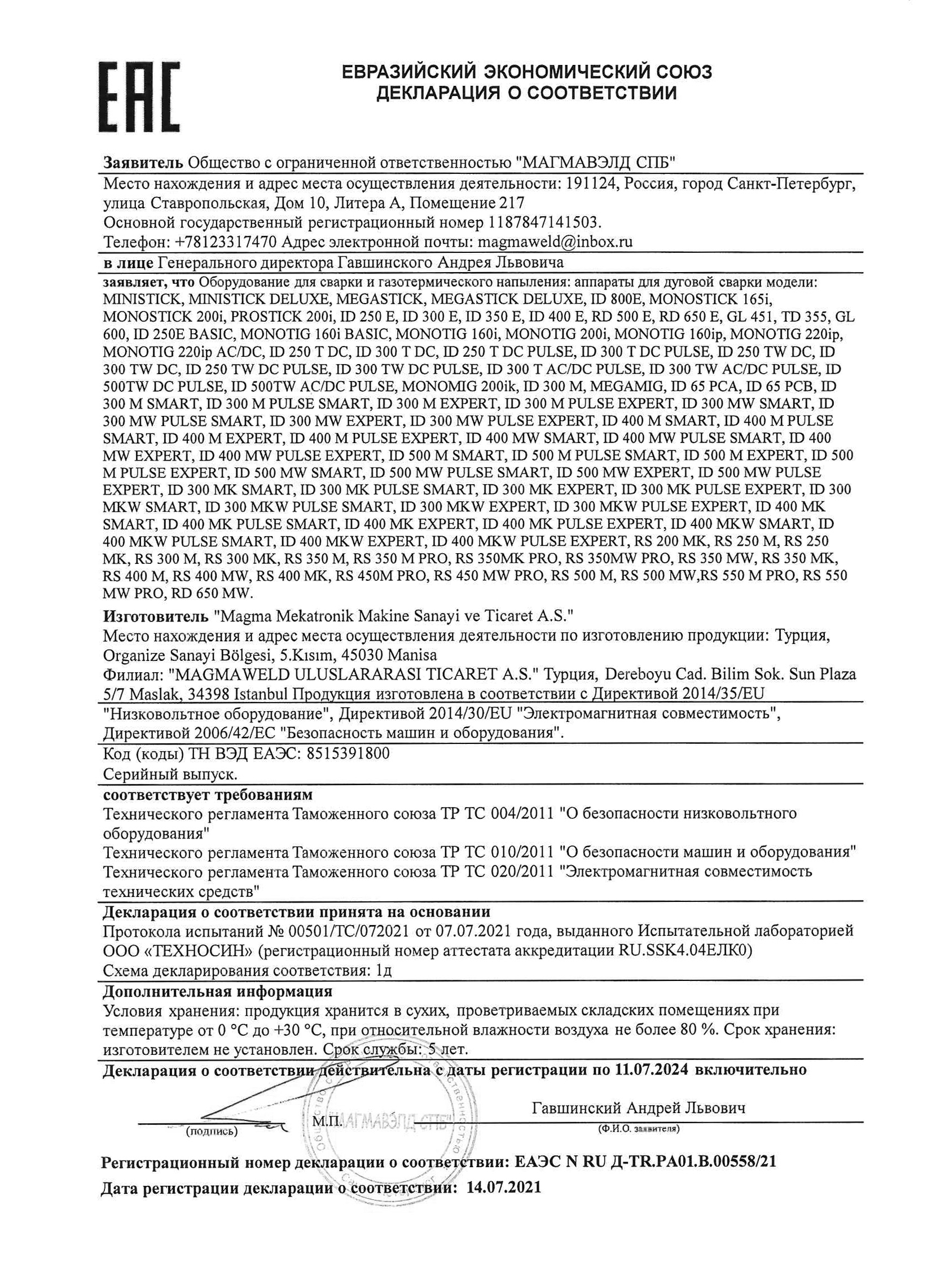

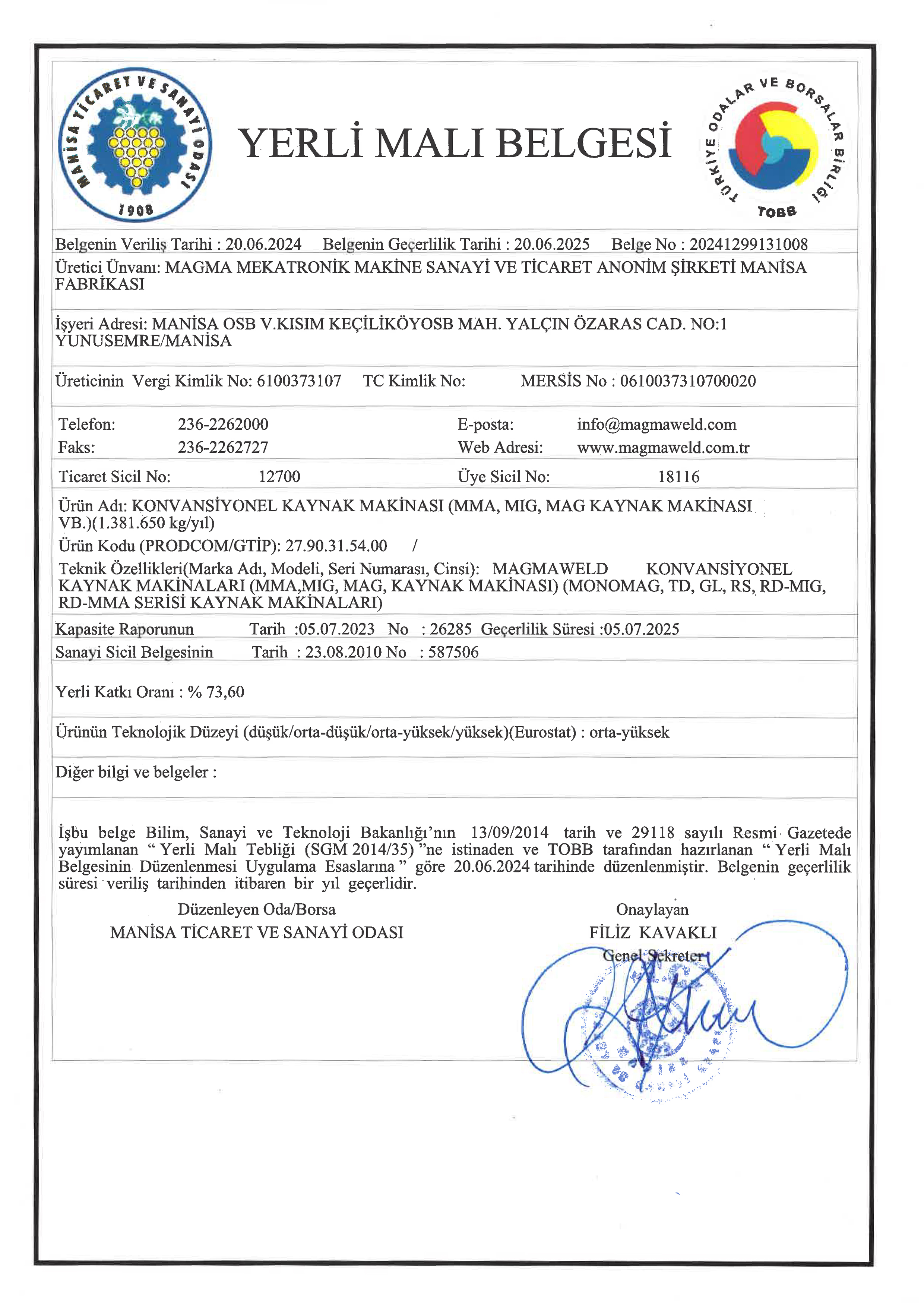

CE EAC Turkish Product
