SF 113

Standards

EN ISO 14174 S A MS/CS 1
TS EN ISO 14174 S A MS/CS 1

Properties And Applications

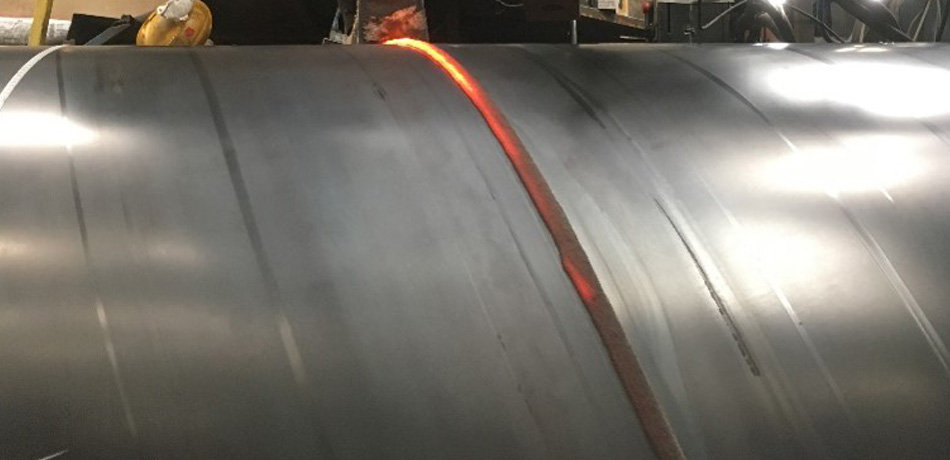

Agglomerated, manganese-silicate type flux for welding general structural steels and pipe steels. Provides sound welds in steels containing low silicon and manganese. Especially suitable for fillet and groove welds in steel contructions, LPG cylinder, pressure vessel production, spirally welding of pipes. Suitable to use at high welding speeds with single and multi-wires. Possible to use both in alternative and direct currents. Good wetting properties blending into the base metal, very easy slag removal in fillet and V-grooves. Provides flat and nice weld profile without undercut.

Typical Chemical Values of Weld Metal

Welding WireType of AnalysisCSiMnMo
SW 701Weld Deposit0.040.451.45
SW 702Weld Deposit0.040.401.80
SW 702 MoWeld Deposit0.040,501.650.45
SW 702SiWeld Deposit0.040.651.90

Typical Mechanical Values of Weld Metal(%)

Test ConditionWelding WireYield Strength (N/mm²)Tensile Strength (N/mm²)Elongation A5 (%)Charpy V-Notch Properties (J)
As weldedSW 701400500300°C → 70-20°C → 60
As weldedSW 702425540300°C → 65-20°C → 55
As weldedSW 702 Mo515590280°C → 60-20°C → 50
As weldedSW 702Si450550300°C → 60-20°C → 50

Wire-Flux Combinations Standards

Welding WireEN Designation of WireEN ISO/TS EN ISO 14171 - AAWS Designation of WireAWS/ASME SFA 5.17/SFA 5.23
SW 701S1S 38 2 CS/MS S1EL12F7A2-EL12
SW 702S2S 42 2 MS/CS S2EM12F7A2-EM12
SW 702 MoS2MoS 46 2 MS/CS S2MoEA2F8A2-EA2
SW 702SiS2SiS 42 3 AB S2SiEM12KF7A2-EM12K

Application Information

Welding Positions :
Sf 113 Kaynak Pozisyonu Sf 113 Kaynak Pozisyonu Sf 113 Kaynak Pozisyonu

Polarity:

Sf 113 Kutuplama

Welding Parameters & Efficiency :

Packaging Information

Product CodeQuantity per BoxBox Gross Weight (kg)Boxes per Outer BoxOuter Box Gross Weight (kg)Packaging Type
401060AGM225 kg25.60125.60Kraft Bag

Storage & Re-Drying Information

>Generally not required. If required, redry for 1 hour at 110°C.
>During transportation and storage, it should be ensured that the packaging is not damaged or torn.
>It has to be dried at 350°C for 2 hours.
