SF 212

Standards

EN ISO 14174 S A AR 1
TS EN ISO 14174 S A AR 1

Properties and Applications

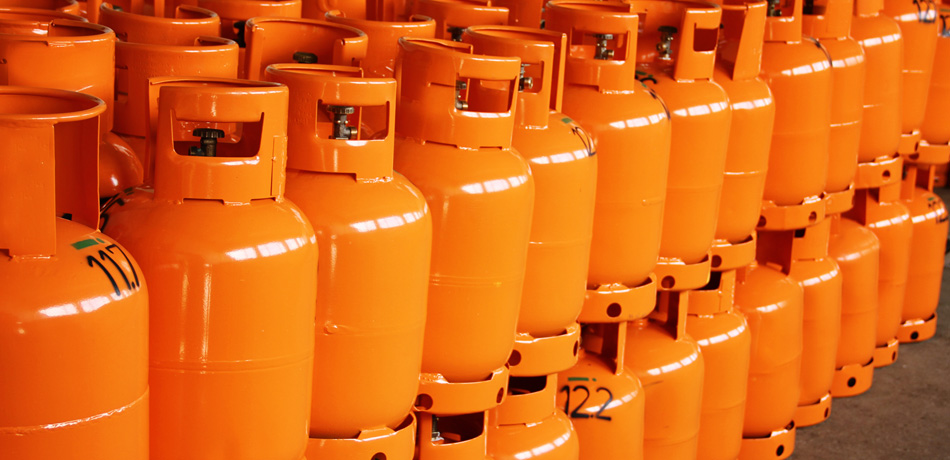

Rutile type, agglomerated submerged arc welding flux, which is designed for welding of at high speeds with excellent bead appearence. Generally used in thin plates in shipbbuilding, pressure vessels, LPG Cylinders, small tanks, boiler, beams, thin walled pipes, tubes and lamp posts. Owing to Mn and Si alloys, make it suitable for carbon steel welding with single or multi-wires, in one and multi passes. Possible to use both in direct and in alternative currents. Slag is generally self releasing and slag removal is very easy in narrow fillet and root passes.
Sf 212 Sert Dolgu

Typical Chemical Values of Weld Metal

Welding WireType of AnalysisCSiMnMo
SW 701Weld Deposit0.050.651.10
SW 702Weld Deposit0.050.801.35
SW 702 MoWeld Deposit0.050.751.400.45
SW 702SiWeld Deposit0.050.801.40
SW 703SiWeld Deposit0.050.951.70

Typical Mechanical Values of Weld Metal(%)

Test ConditionWelding WireYield Strength (N/mm²)Tensile Strength (N/mm²)Elongation A5 (%)Charpy V-Notch Properties (J)
As weldedSW 7014605302820°C → 600°C → 30
As weldedSW 7024805602820°C → 700°C → 30
As weldedSW 702 Mo5906702620°C → 500°C → 35
As weldedSW 702Si5306102620°C → 800°C → 55
As weldedSW 703Si5306102620°C → 650°C → 40

Wire-Flux Combinations Standards

Welding WireEN Designation of WireEN ISO/TS EN ISO 14171 - AAWS Designation of WireAWS/ASME SFA 5.17/SFA 5.23
SW 701S1S 42 A AR S1EL12F7AZ-EL12
SW 702S2S 42 A AR S2EM12F7AZ-EM12
SW 702 MoS2MoS 50 A AR S2MoEA2F8AZ- EA2
SW 702SiS2SiS 46 A AR S2SiEM12KF7AZ-EM12K
SW 703SiS3SiS 46 A AR S3SiEH12KF8AZ-EH12K

Application Information

Welding Positions :
Sf 212 Kaynak Pozisyonu Sf 212 Kaynak Pozisyonu Sf 212 Kaynak Pozisyonu

Polarity:

Sf 212 Kutuplama DC(+)

Welding Parameters & Efficiency :

Packaging Information

Product CodeWeight Of The Box (kg)Number Of Boxes Per PackageWeight Of The PackagePackaging Type
401020AGM225.0125.6Kraft Bag

Storage & Re-Drying Information

>The total drying duration should not exceed 10 hours ( also for repeated drying).
>During transportation and storage, it should be ensured that the packaging is not damaged or torn.
>It has to be dried at 350°C for 2 hours.
