SHF 604

Standards

EN ISO 14174 S A AB 1
TS EN ISO 14174 S A AB 1

Properties and Applications

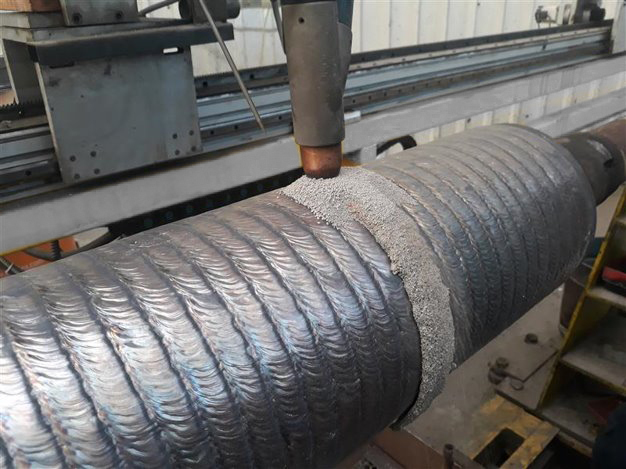

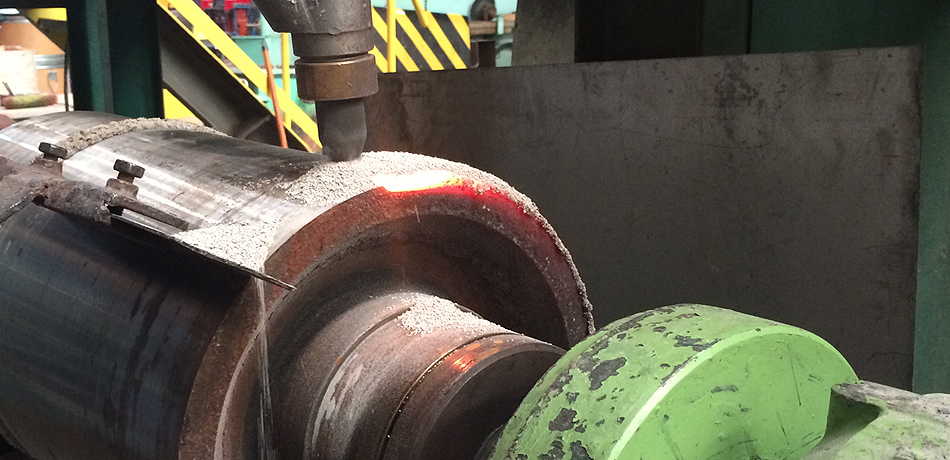

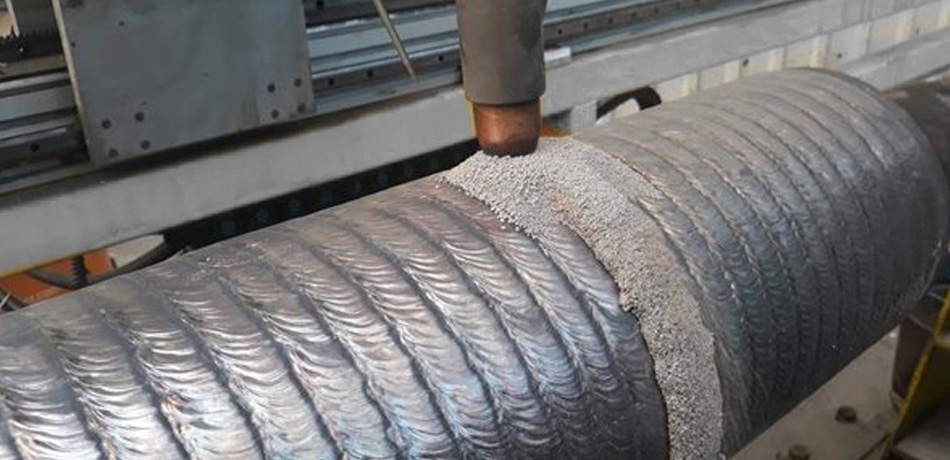

Agglomerated and unalloyed (neutral) submerged arc welding flux used for hardfacing purposes. Suitable for hardfacing of continuous casting rolls, table rolls, pinch rolls, drums, wheels and rails in combination with specially designed hardfacing flux cored wires. Possible to use both in alternative and direct currents in stringer bead and ossillation technique. Provides smooth weld bead without porosity and has a very easy slag removal.

Typical Applications: Hardfacing of continuous casting, table, pinch rollers, crane and train wheels, rails and drums.
Shf 604 Sert Dolgu

Dayanım Gösterdiği Aşınma Tipleri ve Mikroyapısı


Abrasion

Adhesion

Darbe

Temperature

Corrosion

Typical Applications

Shf 604 Model Tipik Uygulamalar Shf 604 Model Tipik Uygulamalar Shf 604 Model Tipik Uygulamalar Shf 604 Model Tipik Uygulamalar

Typical Chemical Values of Weld Metal

Welding WireType of AnalysisCSiMnCrNiMoVNb
FCS 415Weld Deposit0.080.701.0013.002.701.000.250.20
FCS 416Weld Deposit0.120.801.1013.003.001.000.250.25
FCS 420Weld Deposit0.200.701.4013.000.30  0.30
FCS 421Weld Deposit0.250.801.3013.000.35  0.30
FCS 430Weld Deposit0.030.701.3017.00

Typical Mechanical Values of Weld Metal(%)

Test ConditionWelding WireHardness (HB)Hardness (HRc)
As weldedFCS 415 42
As weldedFCS 416 47
As weldedFCS 420 50
As weldedFCS 421 53
As weldedFCS 430200

Application Information

Welding Positions :
Shf 604 Kaynak Pozisyonu Shf 604 Kaynak Pozisyonu

Polarity:

Shf 604 Kutuplama

Welding Parameters & Efficiency :

Packaging Information

Product CodeQuantity per BoxBox Gross Weight (kg)Boxes per Outer BoxOuter Box Gross Weight (kg)Packaging Type
408060AGM225 kg25.60125.60Kraft Bag

Storage & Re-Drying Information

>During transportation and storage, it should be ensured that the packaging is not damaged or torn.
>It has to be dried at 350°C for 2 hours.
