SI 316L

Datasheet

Standards

AWS/ASME SFA - 5.9	ER316L
EN ISO 14343 - A	S 19 12 3 L
TS EN ISO 14343 - A	S 19 12 3 L
DIN M. No.	1.4430

Properties and Applications

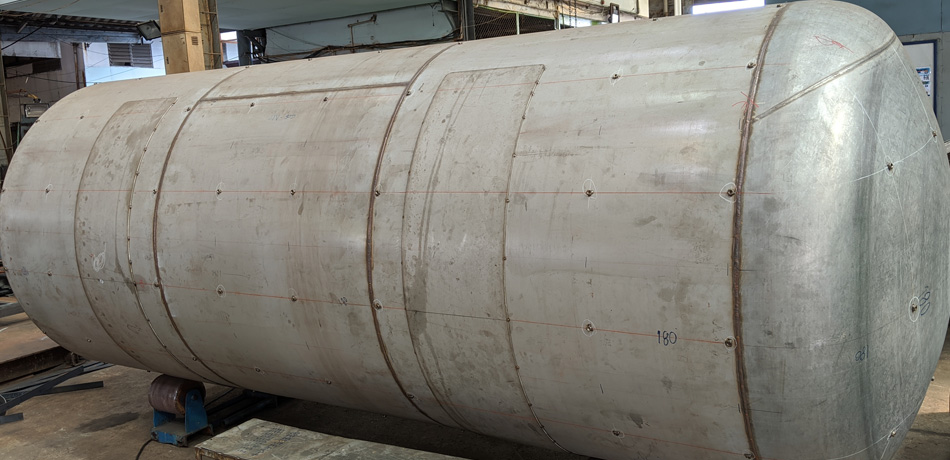

Austenitic stainless steel welding wire for submerged arc welding of unstabilized or stabilized high corrosion resisting Cr-Ni-Mo stainless steels. Used in combination with SIF 501 and SIF 502 submerged arc welding fluxes. Due to it's low carbon content, resistant to intergranular corrosion up to 400°C. Especially used in welding tanks, pipes and equipments which are used in chemical, petrochemical, paint, paper and shipbuilding industries, etc.

Typical Chemical Features of the Welding Wire

Type of Analysis	C	Si	Mn	Cr	Ni	Mo
Welding Wire	0.02	0.40	1.80	18.50	12.00	2.70

Type of Analysis

Welding Wire

0.02

0.40

1.80

18.50

12.00

2.70

Typical Chemical Values of Weld Metal

Welding Flux	Type of Analysis	C	Si	Mn	Cr	Ni	Mo
SIF 502	Weld Deposit	0.02	0.70	1.25	19.00	11.00	2.70
SIF 501	Weld Deposit	0.02	0.35	1.65	18.00	10.00	2.50

Typical Mechanical Values of Weld Metal(%)

Test Condition	Welding Flux	Yield Strength (N/mm²)	Tensile Strength (N/mm²)	Elongation A5 (%)	Charpy V-Notch Properties (J)
As welded	SIF 502	400	570	34	20°C → 70	-60°C → 55	-196°C → 45
As welded	SIF 501	420	570	38	20°C → 75	-60°C → 55	-196°C → 45

Test Condition

Welding Flux

Yield Strength (N/mm²)

Tensile Strength (N/mm²)

Elongation A5 (%)

Charpy V-Notch Properties (J)

As welded

SIF 502

400

570

20°C → 70

-60°C → 55

-196°C → 45

As welded

SIF 501

420

570

20°C → 75

-60°C → 55

-196°C → 45

Application Information

Welding Positions :

Polarity:

DC(+)

Welding Parameters & Efficiency :

Packaging Information

Product Code	Diameter (mm)	Weight Of The Box (kg)	Number Of Boxes Per Package	Weight Of The Package	Packaging Type
43003IXAM2	2.40	25.0	1	25.9	Wire Basket Spool (K435)
43003LXAM2	3.20	25.0	1	25.9	Wire Basket Spool (K435)

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
