SW 701

Datasheet

Standards

AWS/ASME SFA - 5.17	EL12
EN ISO 14171-A	S1
TS EN ISO 14171-A	S1

Properties And Applications

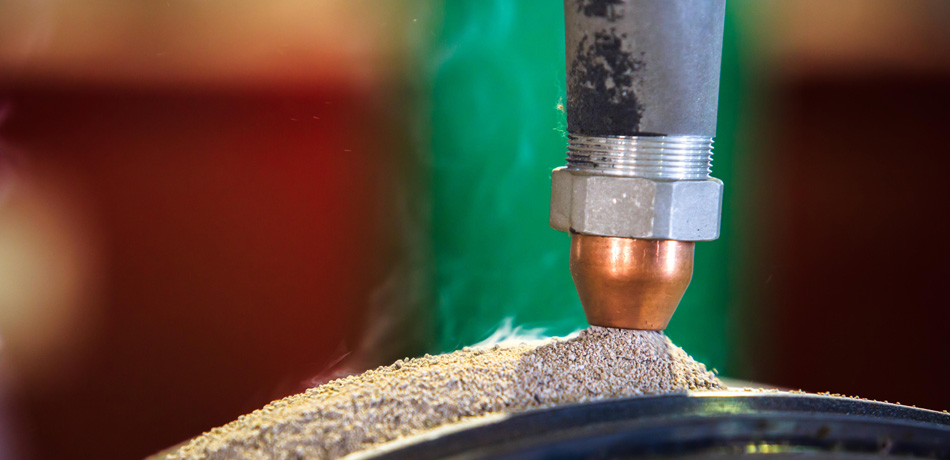

Solid, submerged arc welding wire suitable for welding general structural steels with a tensile strengths up to 510 N/mm², used in pressure vessel, pipe, shipbuilding and steel constructions. Copper coating increases electrical conductivity and resistance against rusting.

Approvals & Certificates

TSE

TUV

Typical Chemical Features of the Welding Wire

Type of Analysis	C	Si	Mn
Welding Wire	0.07	0.03	0.55

Type of Analysis

Welding Wire

0.07

0.03

0.55

Typical Chemical Values of Weld Metal

Welding Flux	Type of Analysis	C	Si	Mn
SF 212	Weld Deposit	0.05	0.65	1.10
SF 113	Weld Deposit	0.04	0.45	1.45
SF 104	Weld Deposit	0.05	0.25	0.85
SF 304	Weld Deposit	0.05	0.25	0.90

Typical Mechanical Values of Weld Metal(%)

Test Condition	Welding Flux	Yield Strength (N/mm²)	Tensile Strength (N/mm²)	Elongation A5 (%)	Charpy V-Notch Properties (J)
As welded	SF 104	410	480	30	0°C → 90	-20°C → 85	-30°C → 50
As welded	SF 304	420	490	30	0°C → 100	-20°C → 80	-30°C → 60
As welded	SF 212	460	530	28	20°C → 60	0°C → 30
As welded	SF 113	400	500	30	0°C → 70	-20°C → 60

Application Information

Welding Positions :

Polarity:

Welding Parameters & Efficiency :

Diameter (mm)
1.60
2.00
2.40
2.80
3.20
4.00
5.00

Packaging Information

Product Code	Diameter (mm)	Quantity per Box	Kutu Brüt Ağırlığı (kg)	Boxes per Outer Box	Koli Ağırlığı (kg)	Packaging Type
41001G1HM2	1.60	200 kg	211.00	1	211.00	Fiber Drum
41001GJAM2	1.60	15 kg	15.70	1	15.70	Wire Basket Spool (K300MS)
41001H2HM2	2.00	400 kg	415.60	1	415.60	Fiber Drum
41001HXAM2	2.00	25 kg	25.90	1	25.90	Wire Basket Spool (K435)
41001I2HM2	2.40	400 kg	415.60	1	415.60	Fiber Drum
41001IXAM2	2.40	25 kg	25.90	1	25.90	Wire Basket Spool (K435)
41001J2HM2	2.80	400 kg	415.60	1	415.60	Fiber Drum
41001JXAM2	2.80	25 kg	25.90	1	25.90	Wire Basket Spool (K435)
41001L2HM2	3.20	400 kg	415.60	1	415.60	Fiber Drum
41001L3HM2	3.20	600 kg	616.50	1	616.50	Fiber Drum
41001L8HM2	3.20	1000 kg	1030.00	1	1030.00	Spider
41001LXAM2	3.20	25 kg	25.90	1	25.90	Wire Basket Spool (K435)
41001M2HM2	4.00	400 kg	415.60	1	415.60	Fiber Drum
41001M3HM2	4.00	550 kg	616.50	1	616.50	Fiber Drum
41001M8HM2	4.00	1000 kg	1030.00	1	1030.00	Spider
41001MXAM2	4.00	25 kg	25.90	1	25.90	Wire Basket Spool (K435)
41001N2HM2	5.00	400 kg	415.60	1	415.60	Fiber Drum
41001N3HM2	5.00	550 kg	616.50	1	616.50	Fiber Drum
41001NXAM2	5.00	25 kg	25.90	1	25.90	Wire Basket Spool (K435)

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
