T CARBIDE 2350

Standards

DIN 8555 G 21-UM-55-CG

Properties and Applications

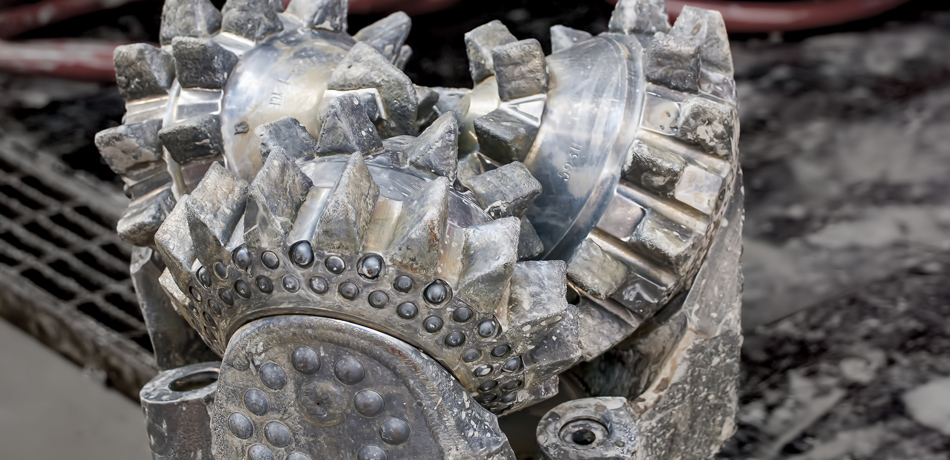

Flexible rod for hard surfacing by TIG/oxy-gas welding. Consists of a small diameter pure nickel core wire thickly coated tungsten carbides in a Ni-Cr-B-Si matrix. The weld metal is a heterogeneous metal composed of tungsten carbides (W2C, WC) distributed in a hard and tough matrix. Shows extremely high abrasion resistance. It has got a quiet melting and good wetting. Especially used for hard surfacing of mixers, crushing mills, die blades and heads, sand foundary equipment, drilling tricones.
T Carbide 2350 Sert Dolgu

Typical Applications

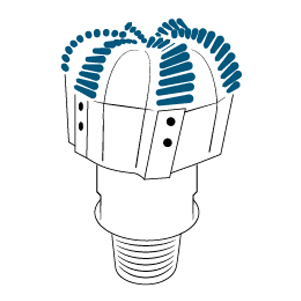

T Carbide 2350 Model Tipik Uygulamalar

Typical Mechanical Values of Weld Metal(%)

Test ConditionMatrix (HRC)W2C, WC (HV)
As welded40-452350

Application Information

Welding Positions :
T Carbide 2350 Kaynak Pozisyonu T Carbide 2350 Kaynak Pozisyonu T Carbide 2350 Kaynak Pozisyonu

Polarity:

T Carbide 2350 Kutuplama

Welding Parameters & Efficiency :

Diameter x Length (mm)
5.00x450

Packaging Information

Product CodeDiameter x Length (mm)Quantity per BoxBox Gross Weight (kg)Boxes per Outer BoxOuter Box Gross Weight (kg)Packaging Type
28130SVKM25.00x4503 kg2.80411.40VAC Box

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
