T CARBIDE 3000

Standards

EN 14700 T Ni20
TS EN 14700 T Ni20
DIN 8555 G 21-UM-55-CG

Properties and Applications

Flexible rod for hardfacing by oxy-gas welding. Consist of a small diameter pure nickel core wire thickly coated tungsten carbides in a Ni-Cr-B-Si matrix. The weld metal is a heterogeneous metal composed of tungsten carbides (W2C,WC) distributed in a hard and tough matrix. Shows extremely high abrasion resistance. It has got a quiet melting and good wetting. Especially used for hardfacing of mixers, crushing mills, die blades and heads, sand foundary equipment, drilling tricones.
T Carbide 3000 Sert Dolgu

Wear Resistance Types and Microstructure


Abrasion

Adhesion

Impact

Temperature

Corrosion
Low
Medium
High
Very High

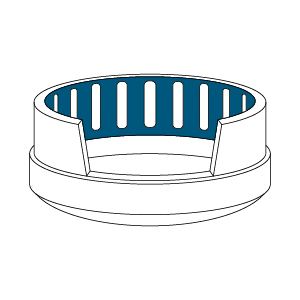

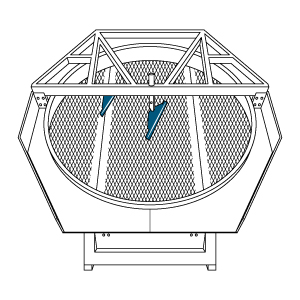

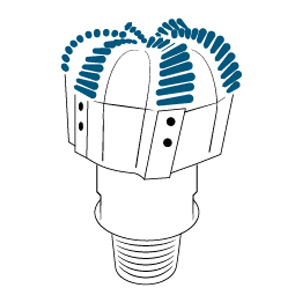

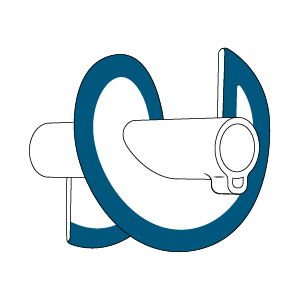

Typical Applications

T Carbide 3000 Model Tipik Uygulamalar T Carbide 3000 Model Tipik Uygulamalar T Carbide 3000 Model Tipik Uygulamalar T Carbide 3000 Model Tipik Uygulamalar

Typical Chemical Values of Weld Metal

Type of AnalysisCSiCrNiWB
Weld Deposit2.501.302.6033.0060.000.60

Typical Mechanical Values of Weld Metal(%)

Test ConditionMatrix (HRC)W2C, WC (HV)
As welded40-453000

Application Information

Welding Positions :
T Carbide 3000 Kaynak Pozisyonu T Carbide 3000 Kaynak Pozisyonu T Carbide 3000 Kaynak Pozisyonu

Polarity:

T Carbide 3000 Kutuplama

Welding Parameters & Efficiency :

Packaging Information

Product CodeDiameter x Length (mm)Kutudaki Miktar (yakl)Kutu Net Ağırlığı (kg)Boxes per Outer BoxKoli Net Ağırlığı (kg)Packaging Type
28131SVKM25.00x4503 kg2.5411.4VAC Box

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
> It has to be dried at 150°C for 1 hour.
