TAL 4043

Datasheet

Standards

AWS/ASME SFA - 5.10	ER4043
EN ISO 18273	S Al 4043 (AlSi5)
TS 6204 EN ISO 18273	S Al 4043 (AlSi5)
DIN M. No.	3.2245

Materials

DIN	Material
G-AlSi 5 Mg	3.2341
AlMgSi 0.5	3.3206
AlMgSi 0.7	3.3210
AlMgSi 1	3.2315

Properties and Applications

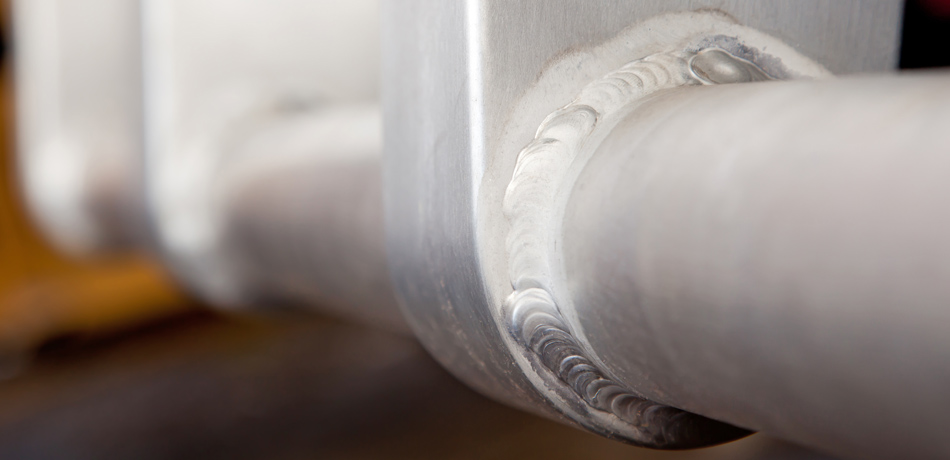

5% Silicon containing aluminium welding rod for GTA (TIG) welding of aluminium and aluminium alloys. Suitable for welding aluminium castings containig up to 7% silicon and Al-Mg-Si alloys which are containing up to 2 % Magnesium as alloying elements.

Typical Chemical Features of the Welding Wire

Type of Analysis	Si	Mn	Al
Welding Wire	5.00	0.05	94.95

Type of Analysis

Welding Wire

5.00

0.05

94.95

Typical Mechanical Values of Weld Metal(%)

Test Condition	Protection Gas	Yield Strength (N/mm²)	Tensile Strength (N/mm²)	Elongation A5 (%)
As welded	I1	80	150	12

Test Condition

Protection Gas

Yield Strength (N/mm²)

Tensile Strength (N/mm²)

Elongation A5 (%)

As welded

150

* Chemical compositon and mechanical properties are valid when using shielding gas EN ISO 14175 - I1 (%100 Ar) .

Application Information

Welding Positions :

Polarity:

Protection Gas:

Welding Parameters & Efficiency :

Diameter x Length (mm)
1.60x1000
2.00x1000
2.40x1000
3.20x1000
4.00x1000

Diameter x Length (mm)

1.60x1000

2.00x1000

2.40x1000

3.20x1000

4.00x1000

Packaging Information

Product Code	Diameter x Length (mm)	Quantity per Box	Kutu Brüt Ağırlığı (kg)	Boxes per Outer Box	Koli Ağırlığı (kg)	Packaging Type
24101GAKM2	1.60x1000	3 kg	2.80	4	11.30	Cardboard Tube
24101HAKM2	2.00x1000	3 kg	2.80	4	11.30	Cardboard Tube
24101IAKM2	2.40x1000	3 kg	2.80	4	11.30	Cardboard Tube
24101IFKM2	2.40x1000	2 kg	2.80	4	8.30	Plastic Box
24101LAKM2	3.20x1000	3 kg	2.80	4	11.30	Cardboard Tube
24101MAKM2	4.00x1000	3 kg	2.80	4	11.30	Cardboard Tube

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
