TG 150

Datasheet

Standards

AWS/ASME SFA - 5.28 ER80S-Ni1
EN ISO 636 - A W 46 6 3Ni1
TS EN ISO 636 - A W 46 6 3Ni1

Properties And Applications

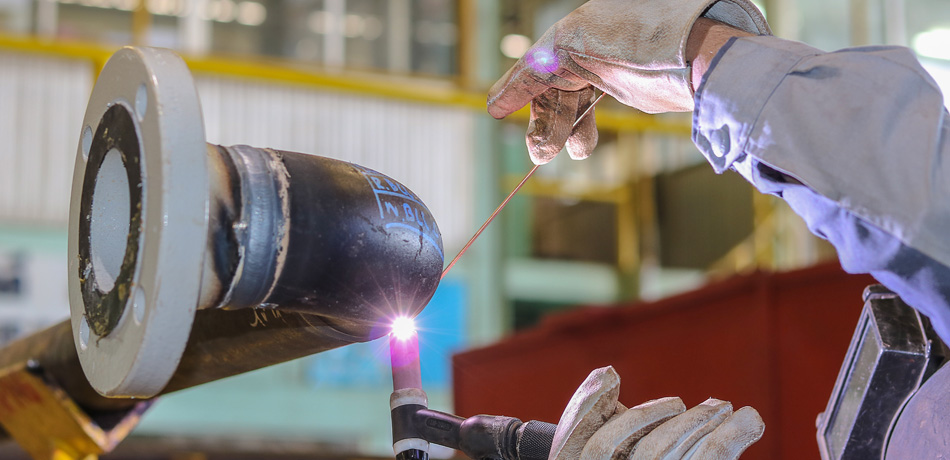

Low alloyed GTA (TIG) welding rod for steels subjected to operating temperatures down to -60°C. Weld metal has high strength and high toughness. Suitable to use in petrochemical, chemical, oil/gas industries and off-shore platforms, especially used for root and fill passes of pipes, boilers, tanks and also valves, pumps which are made of cast or forged steels.

Approvals & Certificates

HAKC

Materials

Width DIN ASTM API
11MnNi5-3
13MnNi6-3
S275NL- S460NL TStE 285 - TStE 460
S275ML - S460ML
P275NL2 - P460NL2 EStE 285 - EStE 460
P355ML2 - P460ML2
A333 - A334 (Gr 1-6)
A350 (Gr LF2-LF6)
A352 (Gr LCB-LCC)
L450MB X65

Typical Chemical Features of the Welding Wire

Type of AnalysisCSiMnNi
Welding Wire0.100.601.100.90

Typical Mechanical Values of Weld Metal(%)

Test ConditionProtection GasYield Strength (N/mm²)Tensile Strength (N/mm²)Elongation A5 (%)Charpy V-Notch Properties (J)
As weldedI148057028-60°C → 90

* Chemical compositon and mechanical properties are valid when using shielding gas EN ISO 14175 - I1 (%100 Ar) .

Application Information

Welding Positions :
Tg 150 Kaynak Pozisyonu Tg 150 Kaynak Pozisyonu Tg 150 Kaynak Pozisyonu Tg 150 Kaynak Pozisyonu Tg 150 Kaynak Pozisyonu Tg 150 Kaynak Pozisyonu

Polarity:

Tg 150 Kutuplama

Protection Gas:

I1

Welding Parameters & Efficiency :

Diameter x Length (mm)
2.00x1000
2.40x1000
3.20x1000

Packaging Information

Product CodeDiameter x Length (mm)Quantity per BoxKutu Brüt Ağırlığı (kg)Boxes per Outer BoxKoli Ağırlığı (kg)Packaging Type
22110HBKM22.00x10005 kg5.30421.40Cardboard Tube
22110IBKM22.40x10005 kg5.30421.40Cardboard Tube
22110LBKM23.20x10005 kg5.30421.40Cardboard Tube

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
