TG 211

Datasheet

Standards

AWS/ASME SFA - 5.28 ER80S-G
EN ISO 21952 - A W CrMo1Si
TS EN ISO 21952 - A W CrMo1Si
DIN M. No. 1.7339

Properties And Applications

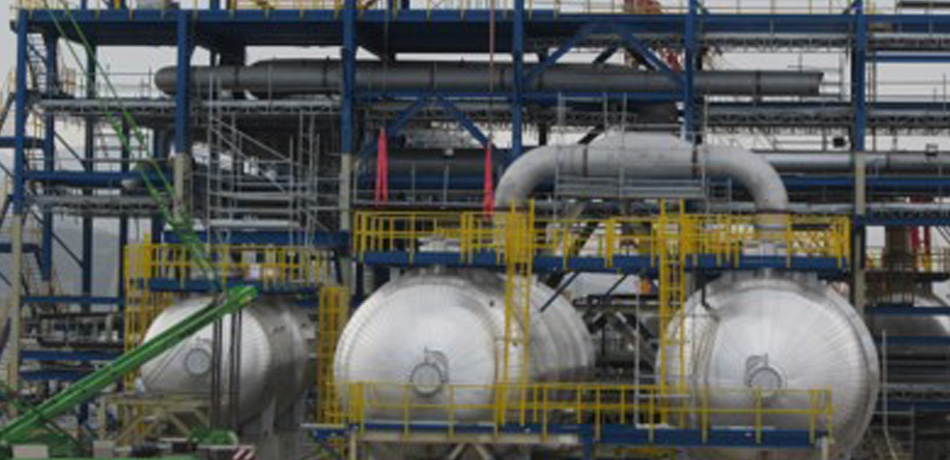

Low alloyed GTA (TIG) welding rod for Cr-Mo alloyed creep resisting steels, subjected to operating temperatures up to 570°C. Particularly used in root and cap passes of steam generators joints, boilers, pressure vessels and pipes, where high X-ray quality is required. Also suitable for welding carbon steel parts subsequently heat treated after welding. Observe directions of pre- and post-weld heat treatment of base metal.

Materials

EN DIN
13CrMo4-5 13 CrMo 4 4

Typical Chemical Features of the Welding Wire

Type of AnalysisCSiMnCrMo
Welding Wire0.100.601.001.200,50

Typical Mechanical Values of Weld Metal(%)

Test ConditionProtection GasYield Strength (N/mm²)Tensile Strength (N/mm²)Elongation A5 (%)Charpy V-Notch Properties (J)
As weldedI15106202320°C → 80-20°C → 50
Isıl İşlem Sonrası (680°C 1 Saat)I15006002420°C → 90-20°C → 60

* Chemical compositon and mechanical properties are valid when using shielding gas EN ISO 14175 - I1 (%100 Ar) .

Application Information

Welding Positions :
Tg 211 Kaynak Pozisyonu Tg 211 Kaynak Pozisyonu Tg 211 Kaynak Pozisyonu Tg 211 Kaynak Pozisyonu Tg 211 Kaynak Pozisyonu Tg 211 Kaynak Pozisyonu

Polarity:

Tg 211 Kutuplama

Protection Gas:

I1

Welding Parameters & Efficiency :

Packaging Information

Product CodeDiameter X Length (mm)Quantity per box (approx.)Box Net Weight (kg)Number Of Boxes In PackagePackage Net Weight (kg)Packaging Type
22102HBKM22.00x10005 kg5.0421.4Cardboard Tube
22102IBKM22.40x10005 kg5.0421.4Cardboard Tube
22102LBKM23.20x10005 kg5.0421.4Cardboard Tube

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
