TG 3

Standards

AWS/ASME SFA - 5.18 ER70S-6
EN ISO 636 - A W 46 3 4Si1
TS EN ISO 636 - A W 46 3 4Si1
DIN M. No. 1.5130

Materials

EN DIN
S185 - P355T1 St 33.0 - St 52.0
S235J2 - S355J0 St 37.3 - St 52.3
S235TR2 - P2355T2 St 37.4 - St 52.4
P235G1TH - P255G1TH St 35.8 - St 45.8
E295 St 50.2
P235GH - P265GH H I - H II
P295GH, P355GH 17Mn4, 19Mn5
L210 - L360NB StE 210.7 - StE 360.7
E 200, GE 240, GE 260 GS 38, GS 45, GS 52
S255N - S420N StE 255 - StE 420
A, B, D, E

Properties and Applications

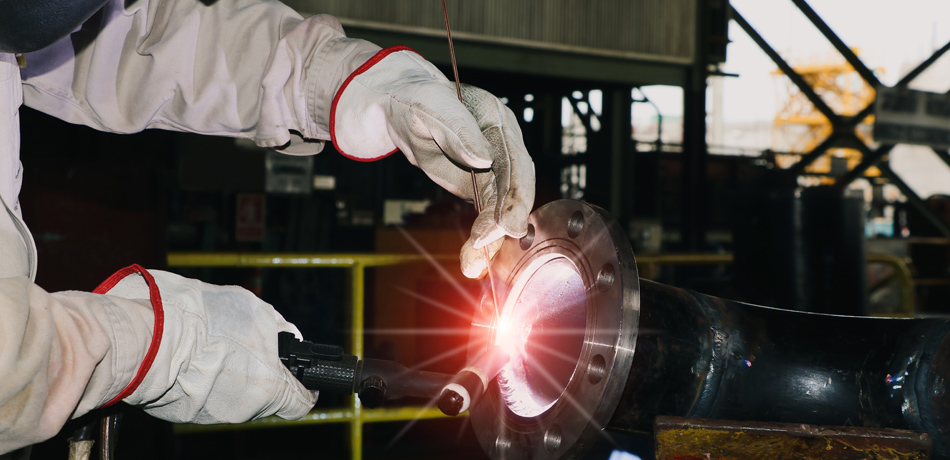

GTA (TIG) welding rod for unalloyed steels, fine grained steels and pipes. Provides high mechanical properties. Particularly used in root and cap passes in chemical, petrochemical, water, natural gas pipes joints safely. Suitable also welding of thin metal plates, tanks, boilers and repair welds of them. Thin and homogeneous copper coating increase resistance to rusting.
Tg 3 Sert Dolgu

Typical Chemical Features of the Welding Wire

Type of AnalysisCSiMn
Welding Wire0.070.901.65

Typical Mechanical Values of Weld Metal(%)

Test ConditionProtection GasYield Strength (N/mm²)Tensile Strength (N/mm²)Elongation A5 (%)Charpy V-Notch Properties (J)
As weldedI149058028-30°C → 80

* Chemical compositon and mechanical properties are valid when using shielding gas EN ISO 14175 - I1 (%100 Ar) .

Application Information

Welding Positions :
Tg 3 Kaynak Pozisyonu Tg 3 Kaynak Pozisyonu Tg 3 Kaynak Pozisyonu Tg 3 Kaynak Pozisyonu Tg 3 Kaynak Pozisyonu Tg 3 Kaynak Pozisyonu

Polarity:

Tg 3 Kutuplama DC(-)

Protection Gas:

I1

Welding Parameters & Efficiency :

Packaging Information

Product CodeDiameter X Length (mm)Weight Of The Box (kg)Number Of Boxes Per PackageWeight Of The PackagePackaging Type
21103GBKM21.60x10005.0421.4Cardboard Tube
21103HBKM22.00x10005.0421.4Cardboard Tube
21103IBKM22.40x10005.0421.4Cardboard Tube
21103LBKM23.20x10005.0421.4Cardboard Tube

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
