TH 801

Standards

AWS/ASME SFA - 5.21 ERCoCr-C
EN 14700 T Co3
TS EN 14700 T Co3
DIN 8555 WSG 20-GO-55-CSTZ

Properties and Applications

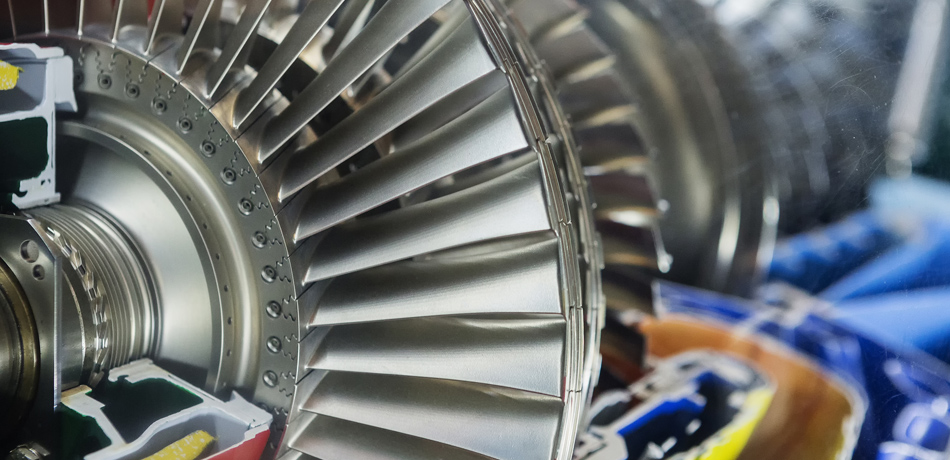

Co-Cr-W alloy GTA (TIG) welding rod for hardfacing applications. Weld metal has got high resistance to metal-to-metal wear, corrosion and high temperatures from 500°C to 900°C. Resistant to low and medium level of mechanical and thermal shocks, due to its high hardness. Widely used for hardfacing of wire guides, rolling mill guides, extrusion dies and screws, valve seats, mechanical parts of steam turbines, cement screws, continuous casting dies and parts, pump tubing and shafts, mixes blades, wood saws.
Th 801 Sert Dolgu

Dayanım Gösterdiği Aşınma Tipleri ve Mikroyapısı


Abrasion

Adhesion

Darbe

Temperature

Corrosion

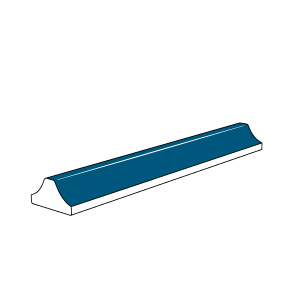

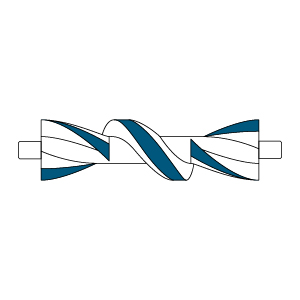

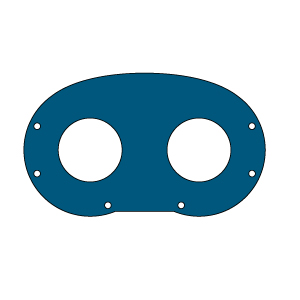

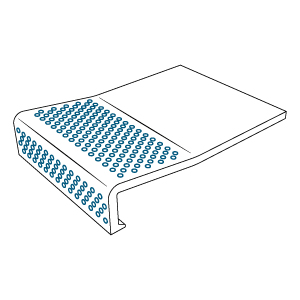

Typical Applications

Th 801 Model Tipik Uygulamalar Th 801 Model Tipik Uygulamalar Th 801 Model Tipik Uygulamalar Th 801 Model Tipik Uygulamalar

Typical Chemical Features of the Welding Wire

Type of AnalysisCSiMnCrNiWFeCo
Welding Wire2.301.000,5030.002.2012.502.5049.00

Typical Mechanical Values of Weld Metal(%)

Test ConditionProtection GasHardness (HRc)
As weldedI155

* Chemical compositon and mechanical properties are valid when using shielding gas EN ISO 14175 - I1 (%100 Ar) .

Application Information

Welding Positions :
Th 801 Kaynak Pozisyonu Th 801 Kaynak Pozisyonu Th 801 Kaynak Pozisyonu

Polarity:

Th 801 Kutuplama

Protection Gas:

I1

Welding Parameters & Efficiency :

Diameter x Length (mm)
3.20x1000
5.00x1000

Packaging Information

Product CodeDiameter x Length (mm)Quantity per BoxBox Gross Weight (kg)Boxes per Outer BoxOuter Box Gross Weight (kg)Packaging Type
28101LBKM23.20x10005 kg5.30421.40Cardboard Tube
28101NBKM25.00x10005 kg5.30421.40Cardboard Tube

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
