TH 806

Datasheet

Standards

AWS/ASME SFA - 5.21 ERCoCr-A
EN 14700 T Co2
TS EN 14700 T Co2
DIN 8555 WSG 20-GO-40-CTZ

Properties and Applications

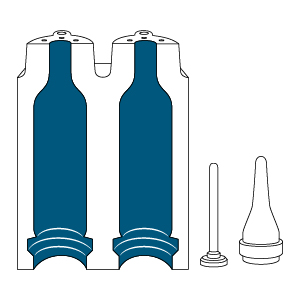

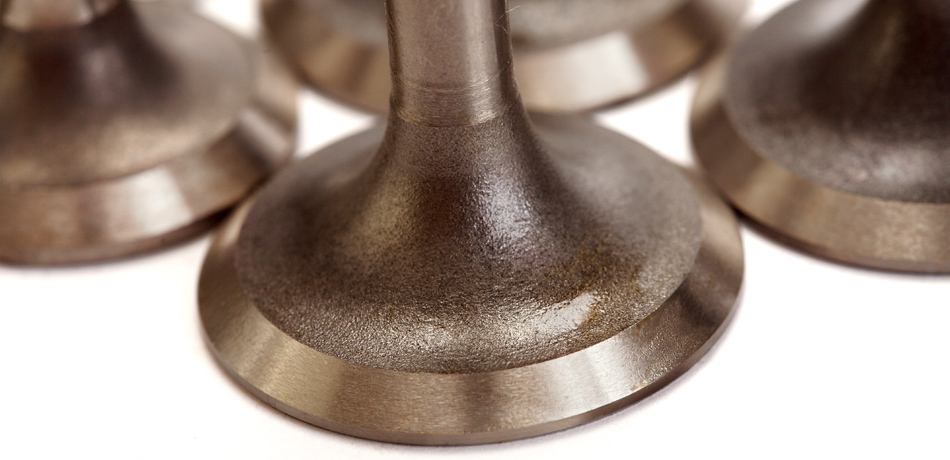

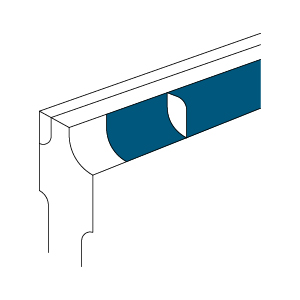

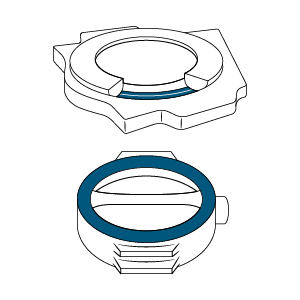

Co-Cr-W alloy GTA (TIG) welding rod for hardfacing applications. Weld metal has got high resistance to metal-to-metal wear, corrosion and high temperatures from 500°C to 900°C. Due to weld metal toughness, it is resistant to mechanical and thermal shocks. Widely used for hardfacing of hot shearing blades, ingot tong ends, valves and valve seats, nozzles and glass dies.
Th 806 Sert Dolgu

Dayanım Gösterdiği Aşınma Tipleri ve Mikroyapısı


Abrasion

Adhesion

Darbe

Temperature

Corrosion

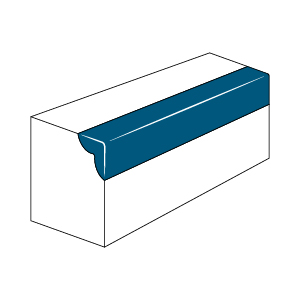

Typical Applications

Th 806 Model Tipik Uygulamalar Th 806 Model Tipik Uygulamalar Th 806 Model Tipik Uygulamalar Th 806 Model Tipik Uygulamalar

Typical Chemical Features of the Welding Wire

Type of AnalysisCSiMnCrNiWFeCo
Welding Wire1.001.000,5028.002.005.002.5060.00

Typical Mechanical Values of Weld Metal(%)

Test ConditionProtection GasHardness (HRc)
As weldedI140

* Chemical compositon and mechanical properties are valid when using shielding gas EN ISO 14175 - I1 (%100 Ar) .

Application Information

Welding Positions :
Th 806 Kaynak Pozisyonu Th 806 Kaynak Pozisyonu Th 806 Kaynak Pozisyonu

Polarity:

Th 806 Kutuplama

Protection Gas:

I1

Welding Parameters & Efficiency :

Diameter x Length (mm)
3.20x1000
4.00x1000
5.00x1000

Packaging Information

Product CodeDiameter x Length (mm)Quantity per BoxKutu Brüt Ağırlığı (kg)Boxes per Outer BoxKoli Ağırlığı (kg)Packaging Type
28102LBKM23.20x10005 kg5.30421.40Cardboard Tube
28102MBKM24.00x10005 kg5.30421.40Cardboard Tube
28102NBKM25.00x10005 kg5.30421.40Cardboard Tube

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
