TI 316L

Standards

AWS/ASME SFA - 5.9 ER316L
EN ISO 14343 - A W 19 12 3 L
TS EN ISO 14343 - A W 19 12 3 L
DIN M. No. 1.4430

Properties And Applications

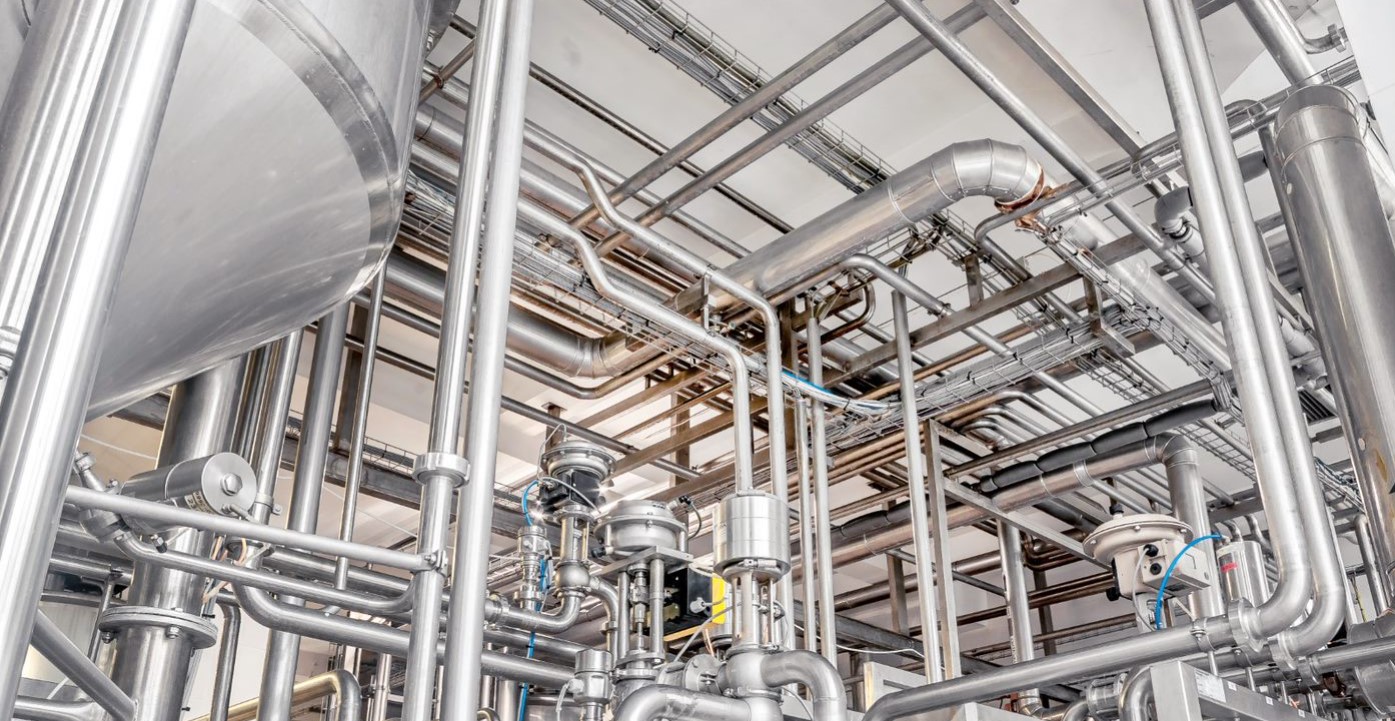

Austenitic stainless steel welding rod for GTA (TIG) welding of unstabilized or stabilized high corrosion resisting Cr-Ni-Mo stainless steels. Due to it's low C (carbon) content, resistant to intergranular corrosion up to 400°C. Especially used in welding chemical tanks, pipes and equipments which are used in chemical, petrochemical, paint, paper and shipbuilding industries, etc.

Approvals & Certificates

Materials

Width Material ASTM
X5CrNiMo17-12-2 1.4401 316
X2CrNiMo17-12-2 1.4404 316L
X2CrNiMoN17-11-2 1.4406 316LN
X2CrNiMo18-14-3 1.4435 316L

Typical Chemical Features of the Welding Wire

Type of AnalysisCSiMnCrNiMo
Welding Wire0.020.351.7518.5011.502.75

Typical Mechanical Values of Weld Metal(%)

Test ConditionProtection GasYield Strength (N/mm²)Tensile Strength (N/mm²)Elongation A5 (%)Charpy V-Notch Properties (J)
As weldedI151063035-20°C → 120-196°C → 90

* Chemical compositon and mechanical properties are valid when using shielding gas EN ISO 14175 - I1 (%100 Ar) .

Application Information

Welding Positions :
Ti 316L Kaynak Pozisyonu Ti 316L Kaynak Pozisyonu Ti 316L Kaynak Pozisyonu Ti 316L Kaynak Pozisyonu Ti 316L Kaynak Pozisyonu Ti 316L Kaynak Pozisyonu

Polarity:

Ti 316L Kutuplama

Protection Gas:

I1

Welding Parameters & Efficiency :

Diameter x Length (mm)
1.20x1000
1.60x1000
2.00x1000
2.40x1000
3.20x1000

Packaging Information

Product CodeDiameter x Length (mm)Quantity per BoxBox Gross Weight (kg)Boxes per Outer BoxOuter Box Gross Weight (kg)Packaging Type
23106EBKM21.20x10005 kg5.30421.40Cardboard Tube
23106GBKM21.60x10005 kg5.30421.40Cardboard Tube
23106HBKM22.00x10005 kg5.30421.40Cardboard Tube
23106IBKM22.40x10005 kg5.30421.40Cardboard Tube
23106LBKM23.20x10005 kg5.30421.40Cardboard Tube

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
