TI 410

Standards

AWS/ASME SFA - 5.9 ER 410
EN ISO 14343 - A W 13
TS EN ISO 14343 - A W 13
DIN M. No. ~1.4009

Materials

Width Material
X6Cr13 1.4000
X12Cr13 1.4006
X20Cr13 1.4021

Properties and Applications

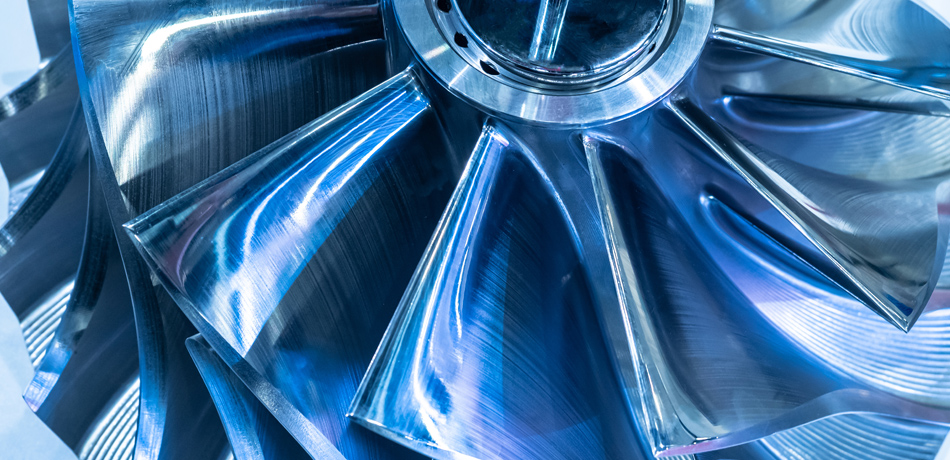

Martensitic stainless steel rod for GTA (TIG) welding of martensitic stainless steels, heat resistant steels and cast steels which contain approx. 13% chromium. Suitable for joining and surfacing of gas, water and steam fan, fan blades and fittings subjected corrosion, erosion and operating temperatures up to 450°C. Depending on type of base metal composition and thickness, preheating between 200 and 300°C, keeping the interpass temperature during welding and tempering between 700 and 750°C after welding are advisable. Stick Electrode : EIS 410MIG/MAG Welding Wire: MI 410
Ti 410 Sert Dolgu

Typical Chemical Features of the Welding Wire

Type of AnalysisCSiMnCr
Welding Wire0.120.450,5012.50

Typical Mechanical Values of Weld Metal(%)

Test ConditionYield Strength (N/mm²)Tensile Strength (N/mm²)Elongation A5 (%)Charpy V-Notch Properties (J)
As welded450600200°C → 170
Isıl İşlem Sonrası (760°C 1 Saat)530660230°C → 180-20°C → 100

Application Information

Welding Positions :
Ti 410 Kaynak Pozisyonu Ti 410 Kaynak Pozisyonu Ti 410 Kaynak Pozisyonu Ti 410 Kaynak Pozisyonu Ti 410 Kaynak Pozisyonu Ti 410 Kaynak Pozisyonu

Polarity:

Ti 410 Kutuplama

Protection Gas:

I1

Welding Parameters & Efficiency :

Diameter x Length (mm)
1.60x1000
2.40x1000

Packaging Information

Product CodeDiameter x Length (mm)Quantity per BoxBox Gross Weight (kg)Boxes per Outer BoxOuter Box Gross Weight (kg)Packaging Type
23110GBKM21.60x10005 kg5.30421.40Cardboard Tube
23110IBKM22.40x10005 kg5.30421.40Cardboard Tube

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
