FCW 150W

Datasheet

Standards

AWS/ASME SFA - 5.29	E81T1-W2C
EN ISO 17632 - B	T553T1-1C A-NCC1
TS EN ISO 17632 - B	T553T1-1C A-NCC1

Properties And Applications

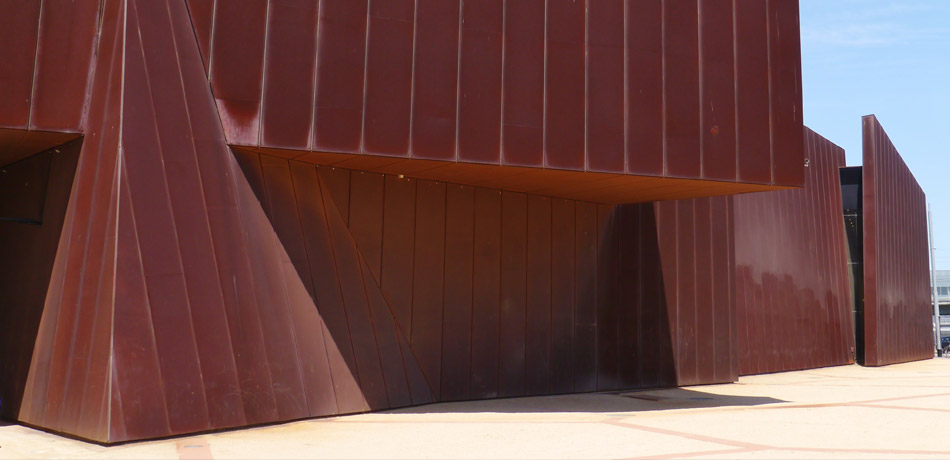

Rutile type flux cored wire, which is especially designed for welding weathering steels (like COR-TEN steels), high strength and fine grained structural steels. Suitable for welding in steel construction in single and multi-run welding in all position. Owing to it's easily controllable weld pool and fast freezing slag particularly suited for welding in all position. Has a stable and quite arc with low spatter loss.

Materials

Width	DIN
S235J0W
S235JRW	WT St 37.2
S235J2W	WT St 37-3
S355J2W	WT St 52-3
S355K2W
S355J0

Typical Chemical Values of Weld Metal

Type of Analysis	C	Si	Mn	Cr	Ni	Cu
Weld Deposit	0.03	0.55	1.25	0,50	0.65	0.40

Type of Analysis

Weld Deposit

0.03

0.55

1.25

0,50

0.65

0.40

Typical Mechanical Values of Weld Metal(%)

Test Condition	Protection Gas	Yield Strength (N/mm²)	Tensile Strength (N/mm²)	Elongation A5 (%)	Charpy V-Notch Properties (J)
As welded	C1	550	620	22	-20°C → 60	-30°C → 30

Test Condition

Protection Gas

Yield Strength (N/mm²)

Tensile Strength (N/mm²)

Elongation A5 (%)

Charpy V-Notch Properties (J)

As welded

550

620

-20°C → 60

-30°C → 30

* Chemical compositon and mechanical properties are valid when using shielding gas EN ISO 14175 - C1 (%100 CO2) .

Application Information

Welding Positions :

Polarity:

Protection Gas:

Welding Parameters & Efficiency :

Diameter (mm)
1.00
1.20
1.60

Diameter (mm)

1.00

1.20

1.60

Packaging Information

Product Code	Diameter (mm)	Quantity per Box	Kutu Brüt Ağırlığı (kg)	Boxes per Outer Box	Koli Ağırlığı (kg)	Packaging Type
32002DIAM2	1.00	15 kg	16.00	1	16.00	Plastic Spool (D300) VAC
32002EIAM2	1.20	15 kg	16.00	1	16.00	Plastic Spool (D300) VAC
32002GIAM2	1.60	15 kg	16.00	1	16.00	Plastic Spool (D300) VAC

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
