FCW 211

Standards

AWS/ASME SFA - 5.29 E91T1-GM
ГОСТ 26271

Product Features And Advantages

Low-alloy wire electrode for welding of Cr-Mo alloyed creep resistant boiler and pipe steels subjected to operating temperatures up to 570°C. Contains high level of deoxidizing (Mn and Si) elements to control porosity during welding. Also suitable for joining C-Mn steels to be postweld heat treated. Observe directions as to pre and post weld heat treatment of base material.

Materials

EN DIN
13CrMo4-5 13CrMo4-4
16CrMo4-4
G17CrMo5-5 GS-17 CrMo 5 5

Properties and Applications

Low-alloy wire electrode for welding of Cr-Mo alloyed creep resistant boiler and pipe steels subjected to operating temperatures up to 570°C. Contains high level of deoxidizing (Mn and Si) elements to control porosity during welding. Also suitable for joining C-Mn steels to be postweld heat treated. Observe directions as to pre and post weld heat treatment of base material.

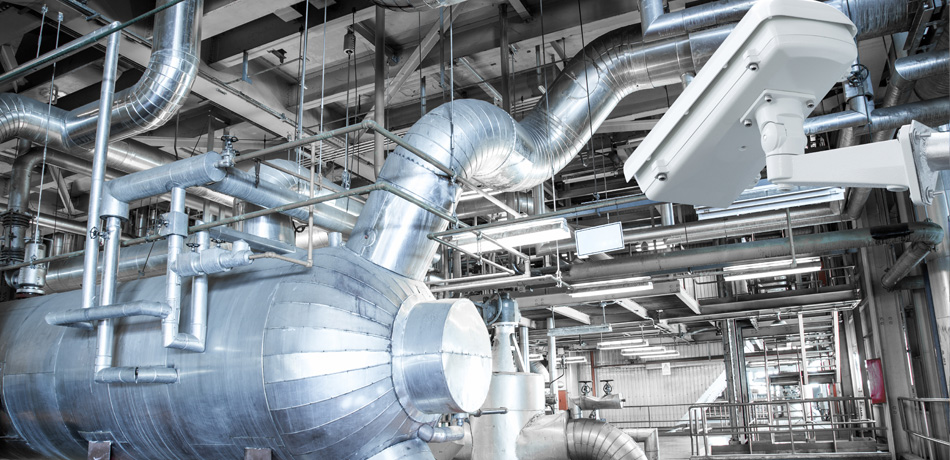

Fcw 211 Sert Dolgu

Typical Applications

Fcw 211 Model Tipik Uygulamalar

Typical Chemical Values of Weld Metal (%)

Type of AnalysisCSiMnCrMoV
Weld Deposit0.060.20.81.30,500.25

Typical Mechanical Values of Weld Metal

Test ConditionProtection GasYield Strength (N/mm²)Tensile Strength (N/mm²)Elongation A5 (%)
After Heat Treatment(730°C 2 hour)M2161569620

* Chemical compositon and mechanical properties are valid when using shielding gas EN ISO 14175 - M21 (Ar + %20 CO2) .

Application Information

Welding Positions :
Fcw 211 Kaynak Pozisyonu Fcw 211 Kaynak Pozisyonu Fcw 211 Kaynak Pozisyonu Fcw 211 Kaynak Pozisyonu Fcw 211 Kaynak Pozisyonu Fcw 211 Kaynak Pozisyonu Fcw 211 Kaynak Pozisyonu

Polarity:

Fcw 211 Kutuplama DC(+)

Protection Gas:

M21

Welding Parameters & Efficiency :

Packaging Information

Product CodeDiameter (mm)Weight Of The Box (kg)Boxes Per PackageWeight Of The PackagePackaging Type
32012EIBM21.2015.0116.0Plastic Spool (D300) VAC

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
