MH 361

Standards

EN 14700 S Fe8
TS EN 14700 S Fe8
DIN 8555 MSG 6-GZ-60-GPS
DIN M. No. 1.4718

Properties and Applications

Gas metal arc (MIG/MAG) welding wire especially developed for hardfacing of parts subjected to high metal-to-metal friction, mineral abrasion and moderate impact. Weld metal can retain it's hardness at high temperatures, till 600°C. Weld metal can be grinded and machined by diamond tools. A tough buffer layer with FCW 30 is recommended before hardfacing, if base metal has high carbon and low weldability. Heat treatment after hardfacing will decrease as-welded hardness.

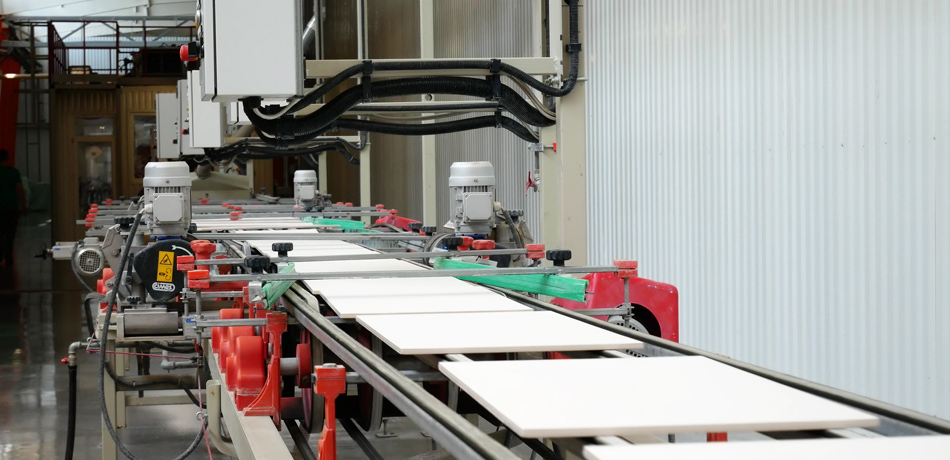

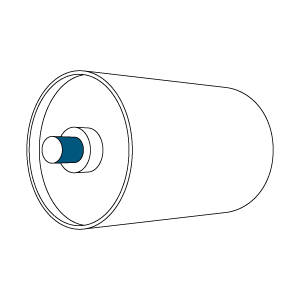

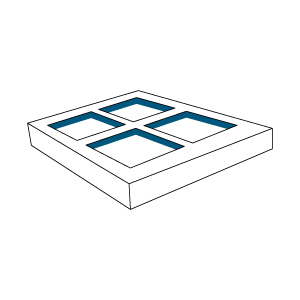

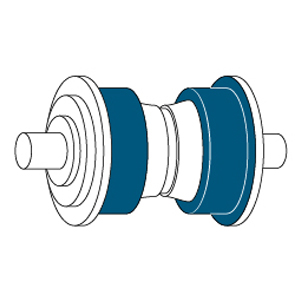

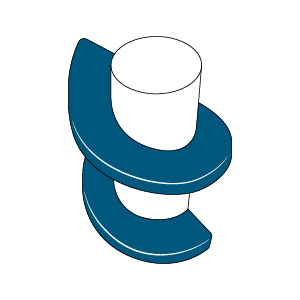

Typical Applications: Ceramic tile moulds, mixer blades, crushers, earth moving equipments, hot cut-offs, shear blades, dies for pressure casting, scraper blades, conveyors, rollers.
Mh 361 Sert Dolgu

Wear Resistance Types


Abrasion

Adhesion

Impact

Temperature

Corrosion
Low
Medium
High
Very High

Typical Applications

Mh 361 Model Tipik Uygulamalar Mh 361 Model Tipik Uygulamalar Mh 361 Model Tipik Uygulamalar Mh 361 Model Tipik Uygulamalar

Typical Chemical Values of Weld Metal

Type of AnalysisCSiMnCrFe
Weld Deposit0.402.400.358.6088.25

Typical Mechanical Values of Weld Metal(%)

Test ConditionProtection GasHardness (HRc)
As weldedC159
As weldedM2158

* Chemical compositon and mechanical properties are valid when using shielding gas .

Application Information

Welding Positions :
Mh 361 Kaynak Pozisyonu Mh 361 Kaynak Pozisyonu

Polarity:

Mh 361 Kutuplama DC(+)

Protection Gas:

M12 M21

Welding Parameters & Efficiency :

Packaging Information

Product CodeDiameter (mm)Weight Of The Box (kg)Number Of Boxes Per PackageWeight Of The PackagePackaging Type
28000DJAM21.0015.0115.7Wire Basket Spool (K300MS)
28000EJAM21.2015.0115.7Wire Basket Spool (K300MS)
28000GJBM21.6015.0115.7Wire Basket Spool (K300MS)

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
