MI 307SI

Standards

AWS/ASME SFA - 5.9 ~ER307
EN ISO 14343 - A G 18 8 Mn
TS EN ISO 14343 - A G 18 8 Mn
DIN M. No. 1.4370

Materials

Width Material ASTM
X3CrNiMo17-13-3 1.4436 316
X5CrNi18-10 1.4301 304
X6CrNiMoTi17-12-2 1.4571 316 Ti
X10CrNiMo 18-12 1.4583 318

Properties and Applications

Austenitic stainless steel wire electrode for GMA (MIG/MAG) welding of dissimilar steels, difficult to weld steels, armour plates, high manganese steels, rails, crossovers. Suitable also for depositing stress relaxing buffer layers on crack sensitive base metals and hardfacing jobs, e.g. crane wheel surfacing where high degree of pressure and dynamical loads exists. Weld metal has a high degree of corrosion resistance and resistant to operating temperatures up to 300°C and non-scalling up to 850°C. Observe welding procedures, preheating temperature and avoid high admixture of base metal.
Mi 307Si Sert Dolgu

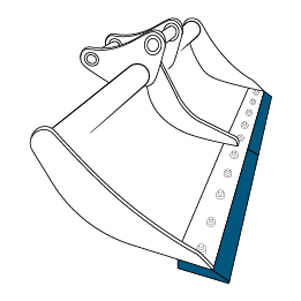

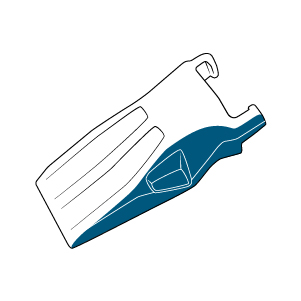

Typical Applications

Mi 307Si Model Tipik Uygulamalar Mi 307Si Model Tipik Uygulamalar

Typical Chemical Features of the Welding Wire

Type of AnalysisCSiMnCrNi
Welding Wire0.070.807.0018.008.00

Typical Mechanical Values of Weld Metal(%)

Test ConditionProtection GasYield Strength (N/mm²)Tensile Strength (N/mm²)Elongation A5 (%)Charpy V-Notch Properties (J)
As weldedM134606303920°C → 90-20°C → 60

* Chemical compositon and mechanical properties are valid when using shielding gas EN ISO 14175 - M13 (Ar+%0,5-3 O2) .

Application Information

Welding Positions :
Mi 307Si Kaynak Pozisyonu Mi 307Si Kaynak Pozisyonu Mi 307Si Kaynak Pozisyonu Mi 307Si Kaynak Pozisyonu Mi 307Si Kaynak Pozisyonu Mi 307Si Kaynak Pozisyonu Mi 307Si Kaynak Pozisyonu

Polarity:

Mi 307Si Kutuplama

Protection Gas:

M13 M12 M14 I1

Welding Parameters & Efficiency :

Diameter (mm)
1.00
1.20
1.60

Packaging Information

Product CodeDiameter (mm)Quantity per BoxBox Gross Weight (kg)Boxes per Outer BoxOuter Box Gross Weight (kg)Packaging Type
23000DJAM21.0015 kg15.70115.70Wire Basket Spool (K300MS)
23000EBAM21.205 kg5.3015.30Plastic Spool (D200)
23000EJAM21.2015 kg15.70115.70Wire Basket Spool (K300MS)
23000GJAM21.6015 kg15.70115.70Wire Basket Spool (K300MS)

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
