MI 410

Standards

AWS/ASME SFA - 5.9 ER 410
EN ISO 14343 - A G 13
TS EN ISO 14343 - A G 13
DIN M. No. 1.4006

Materials

Width Material
X6Cr13 1.4000
X12Cr13 1.4006
X20Cr13 1.4021

Properties and Applications

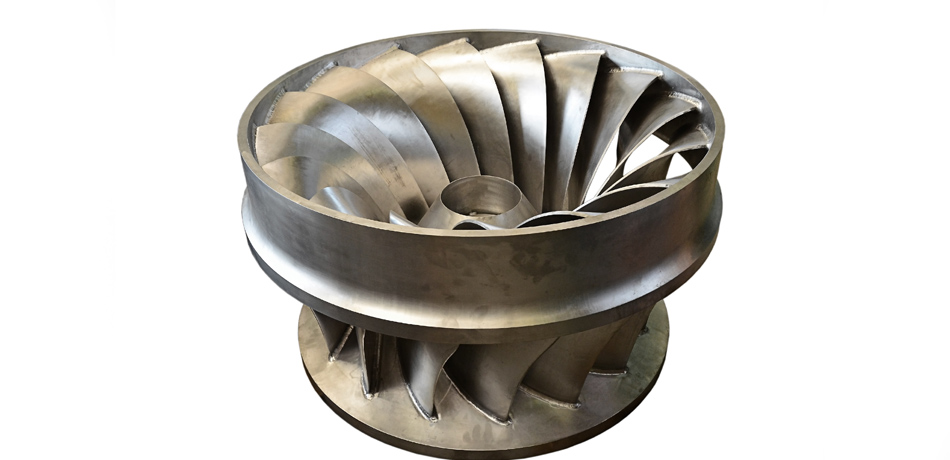

Martensitic stainless steel wire for GMA (MIG/MAG) welding of martensitic stainless steels, heat resistant steels and cast steels which contain approx. 13% chromium. Suitable for joining and surfacing of gas, water and steam fan, fan blades and fittings subjected to corrosion, erosion and operating temperatures up to 450°C. Depending on type of base metal composition and thickness, preheating between 200 and 300°C, keeping the interpass temperature during welding and tempering between 700 and 750°C after welding are advisable. Stick Electrode : EIS 410TIG Welding Rod: TI 410
Mi 410 Sert Dolgu

Typical Chemical Features of the Welding Wire

Type of AnalysisCSiMnCrCu
Welding Wire0.100.300,5012.500,50

Typical Mechanical Values of Weld Metal(%)

Test ConditionProtection GasYield Strength (N/mm²)Tensile Strength (N/mm²)Elongation A5 (%)Charpy V-Notch Properties (J)
Isıl İşlem Sonrası (760°C 1 Saat)M124506002320°C → 600°C → 30

* Chemical compositon and mechanical properties are valid when using shielding gas .

Application Information

Welding Positions :
Mi 410 Kaynak Pozisyonu Mi 410 Kaynak Pozisyonu Mi 410 Kaynak Pozisyonu Mi 410 Kaynak Pozisyonu Mi 410 Kaynak Pozisyonu Mi 410 Kaynak Pozisyonu Mi 410 Kaynak Pozisyonu

Polarity:

Mi 410 Kutuplama

Protection Gas:

M13 M12 M14 I1

Welding Parameters & Efficiency :

Diameter (mm)
0.80
1.00
1.20
1.60

Packaging Information

Product CodeDiameter (mm)Quantity per BoxBox Gross Weight (kg)Boxes per Outer BoxOuter Box Gross Weight (kg)Packaging Type
23010BJAM20.8015 kg15.70115.70Wire Basket Spool (K300MS)
23010DJAM21.0015 kg15.70115.70Wire Basket Spool (K300MS)
23010EJAM21.2015 kg15.70115.70Wire Basket Spool (K300MS)
23010GJAM21.6015 kg15.70115.70Wire Basket Spool (K300MS)

Storage & Re-Drying Information

>Shouldn t be exposed to high statical load and impact.
