Monotig 160I

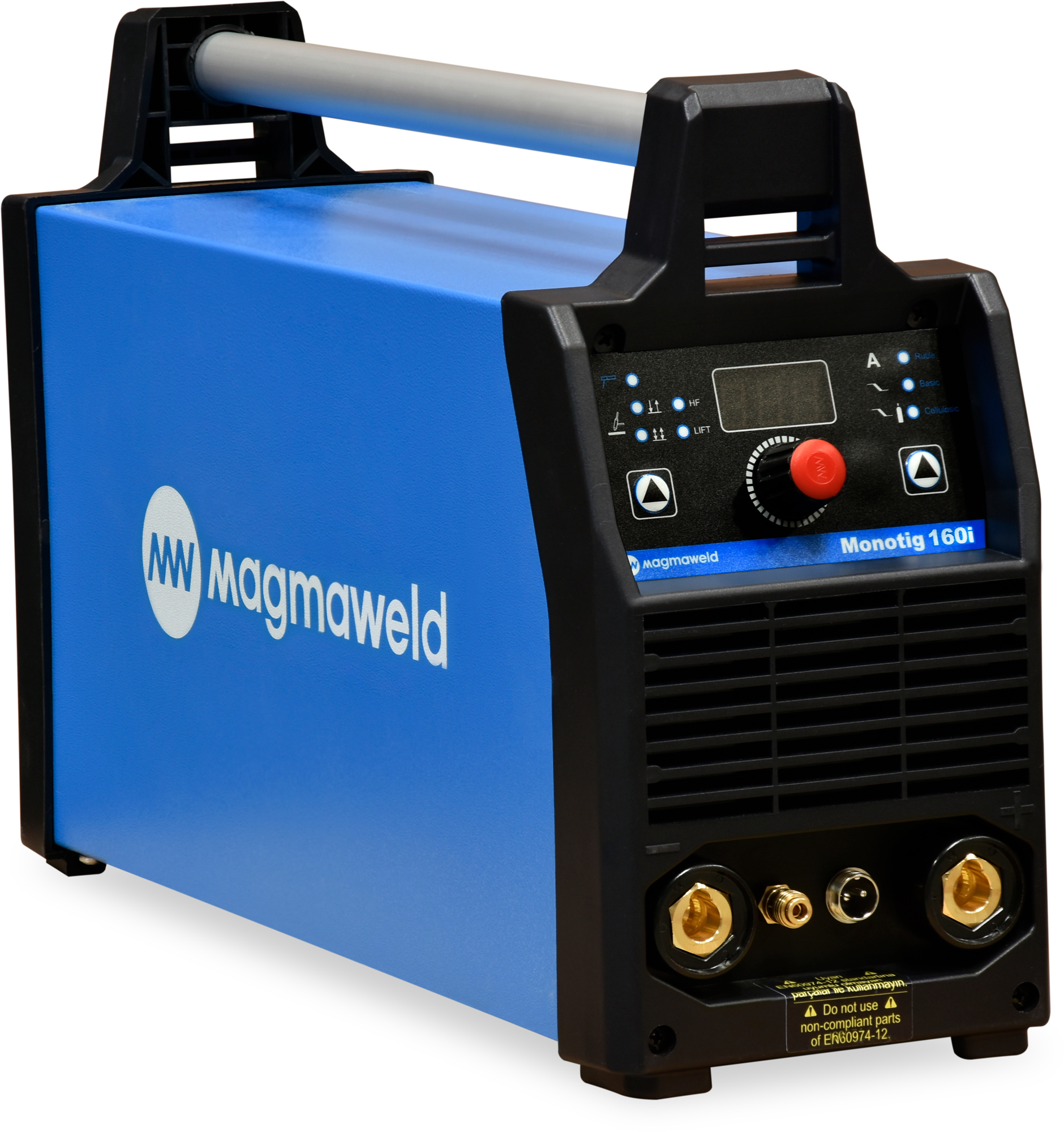

MONOTIG 160i

Products:

General
Technical Details
ACCESSORIES
DOCUMENTS
  • Operates with 1 Phase 230V-50/60 Hz mains voltage and generators, tolerates voltage fluctuations up to 15%.
  • Due to inverter technology, energy efficiency is higher than the conventional machines.
  • TIG arc ignition by HF or Lift TIG.
  • Thin metal sheet welding due to its stable low currents starting from 5 Ampere.
  • Basic TIG settings; Welding Current, Slope-Down, Pre-Gas, Post-Gas and Crater Filling.
  • Triggering via torch as 2/4 or with foot pedal as On/Off.
  • Welding parameters are monitored on the digital display.
  • Excellent welding characteristics for rutile and basic electrodes.
  • Stable welding current without loss of performance due to electric line fluctuations or with long welding and electrical cables.
  • Excellent for outdoor use with IP 23 protection class.
  • Portable lightweight design but withstands tough working conditions.
  • Fan cooling and thermal protection against overheating.
  • Standard accessories come with the machine.
GUC KAYNAGI
Mains Voltage (1Ph) 230 V
Input Power (MMA) 7.41 (%30) kVA
Input Power (TIG) 5.01 (%30) kVA
Welding Current Range 5 - 160 ADC
Nominal Welding Current 160 (%30) ADC
Open Circuit Voltage 65 VDC
Electrode Diameter 1.60 - 3.25 mm
Tungsten Electrode Diameter 1.20 - 2.40 mm
Dimensions (l x w x h) 520 x 160 x 312 mm
Weight (Net) 9,5 KG
Cooling Method Air
Protection Class IP23
CODE pcs Dimension Standard/Optional
7907000002 GAZ HORTUMU 2 Meters STANDARD
7905212503 Ground Clamp And Cable 25mm2/3mt (35 socket) STANDARD
7110018004 LAVA TIG 26-4 180A (%35 DC) - 4m STANDARD
7910005200 WATER COOLING UNIT CSP 40 Optional
7910000530 350A TIG TORCH ACCESSORIES/WATER - 4m LAVA TIG 18W-4 + REGULATOR Optional
7910000510 250A TIG ACCESSORIES KIT - 4m LAVA TIG 26-4 + REGULATOR Optional
7910000130 TIG PEDAL MONO TIG (ON/OFF) Optional
7910000100 TIG TASIMA ARABASI(150A MIG AKSESUAR KITI) Optional
7906202503 Electrode Clamp And Cable 25mm2/3mt (35 socket) Optional
7110038008 LAVA TIG 18W-8 380A (%100 DC) - 8m Optional
7110038004 LAVA TIG 18W-4 380A (%100 DC) - 4m Optional
7110018008 LAVA TIG 26-8 180A (%35 DC) - 8m Optional
7020001004 Argon Regulator G5/8'' Bottom Adjustment Optional
Product introduction
PDF
KULLANMA KILAVUZU
PDF Search
Additional Documents
Quick Start

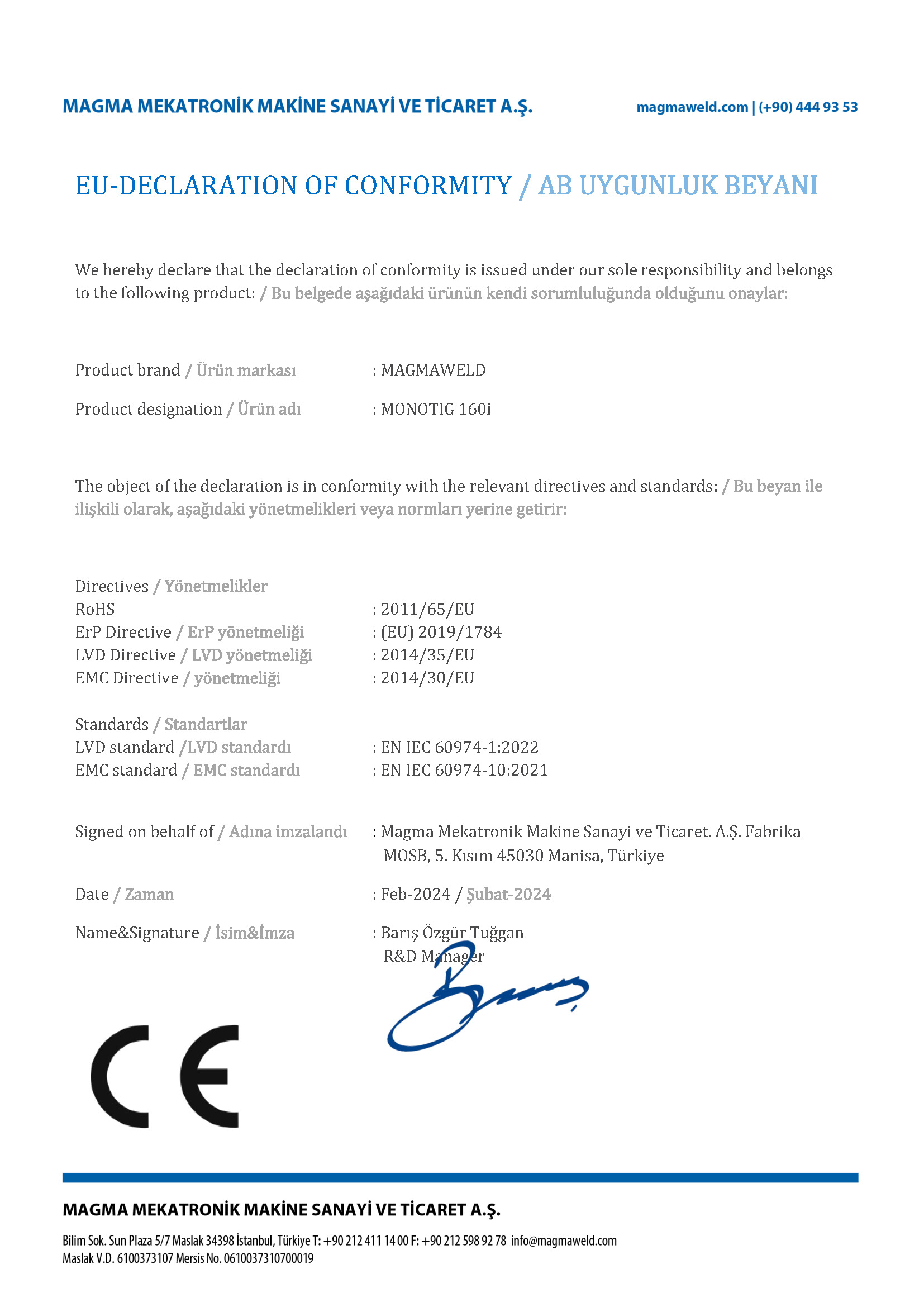

Approvals & Certificates
