RS 450 MW PRO

Operates with 3 Phase 400V-50/60 Hz mains voltage and generators, tolerates voltage fluctuations up to 15%.
Excellent welding characteristics with all types of solid and flux cored wires with CO2 or Mix gases.
Intelligent control of temperature reduces energy consumption and extends the fan and machine life. (SmartFan)
Sleep Mode to save energy if there is no activity in 7 minutes.
Separate wire feeding units are standard. Closed Cabinet and Small-D200 (5Kg) Spool Wire Feeder.
Powerful Digital Displays are closer to the welder.
4 roll drive system offers good feedability with long torches and offers less deformation on soft wires such as aluminum and flux cored wires.
The Separate wire feeder standard harness length is 5 m and can be extended up to 30 m upon request.
Optimum welding parameters can be obtained from the printed table inside of the wire feed cover.
Wire feed speed adjustment, 2/4 trigger selection, Soft Start, Pre-Gas, Post-Gas, Burn-Back timer adjustments are through the red knob and membrane switch (M) on the wire feeding penal. During welding, voltage and current are monitored on digital displays.
Welding voltage is adjusted from the course and fine switches; increments are optimized to obtain welding parameters with lowest spatter levels.
Manual wire feeding & gas valve buttons are in the wire feeding cabinet.
ø300 mm, ø270 mm and ø200 mm spools and drums of any size can be used.
24V AC outlet for CO2 gas heater.
Multiple workpiece connections (Inductance outlets) enables optimum parameter adjustment for low spatter welding.
Built in gas cylinder platform with large wheels to ease mobility in workshops.
For water-cooled (W) models, provides powerful water cooling up to 50 m distance & 40ºC ambient temperature.
Standard accessories come with the machine.

GUC KAYNAGI
Mains Voltage (3Ph)	400	V
Input Power	22.6 (%50)	kVA
Welding Current Range	85 - 450	A
Nominal Welding Current	410 (%60)	A
Open Circuit Voltage	20 - 57	V
Voltage Adjustment Steps	3 x 10
Protection Class	IP21
Dimensions (l x w x h)	1008x592x1443	mm
Weight (Net)	256,5	KG
WIRE DRIVE UNIT
Welding Wire Diameter	0.80 - 2.00	mm
Standard Roller Groove Size	1.00 - 1.20	mm
Wire Feeder Roller Diameter	4x37	mm
Wire Feeding Speed	1 - 24	m/dk
Torch Trigger Control	2 / 4
Spool Capacity	23.5	KG

CODE	pcs	Dimension	Standard/Optional
7907000002	GAZ HORTUMU	2 Meters	STANDARD
7905407005	Ground Clamp And Cable	70mm2/5mt (35 socket)	STANDARD
7120050003	LAVA MIG 50W-3	450A (%100 CO2) - 3m	Optional
7020009003	CO2 HEATER	MAGMAWELD(24V AC-50W)	Optional
7020001005	CO2 Regulator	W21,8x1/14'' Bottom Adjustment	Optional
7020001004	Argon Regulator	G5/8'' Bottom Adjustment	Optional

Product introduction

PDF

KULLANMA KILAVUZU

PDF Search

Additional Documents

Wire Feed Unit Quick User Manual

Quick Start

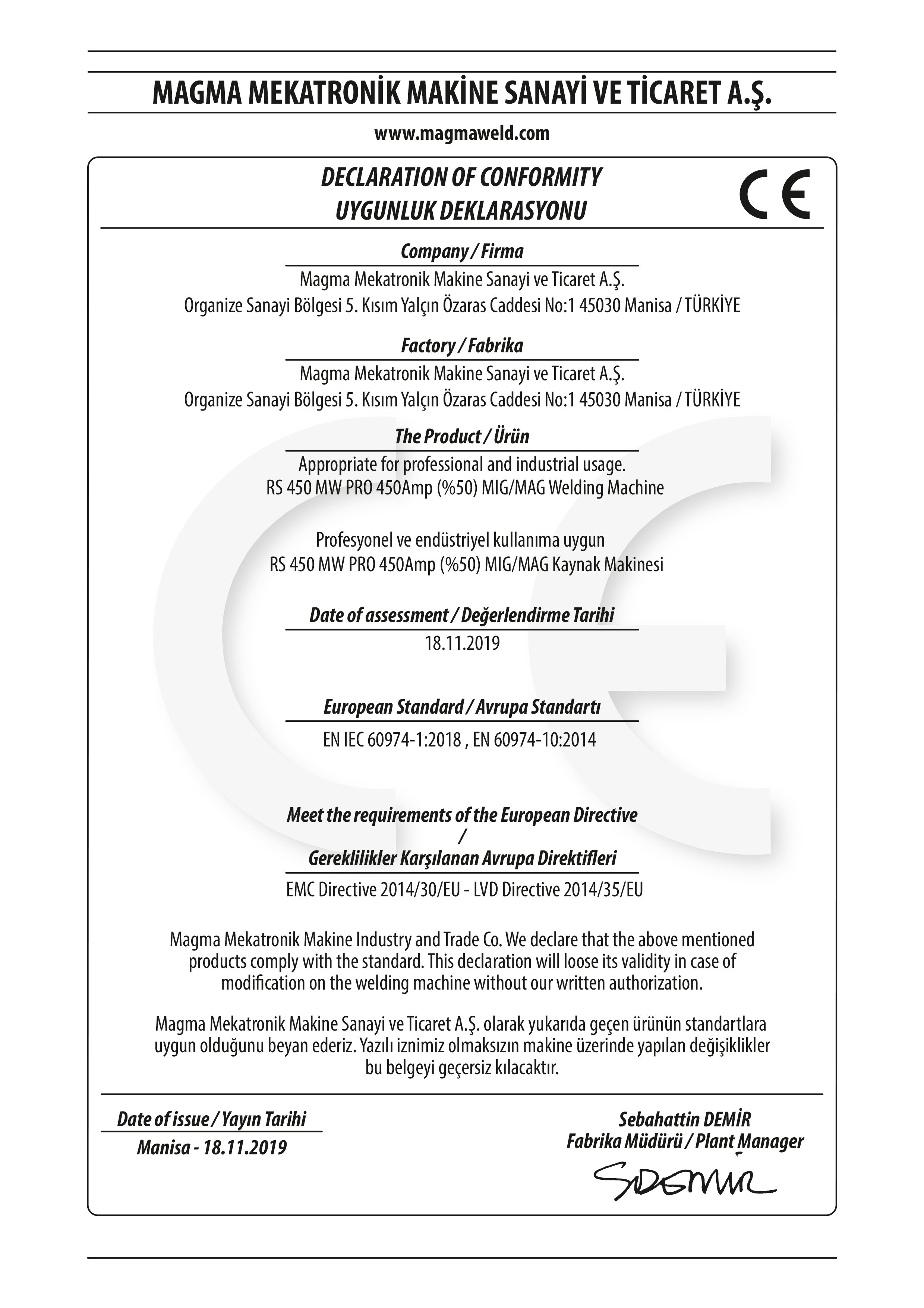

Approvals & Certificates

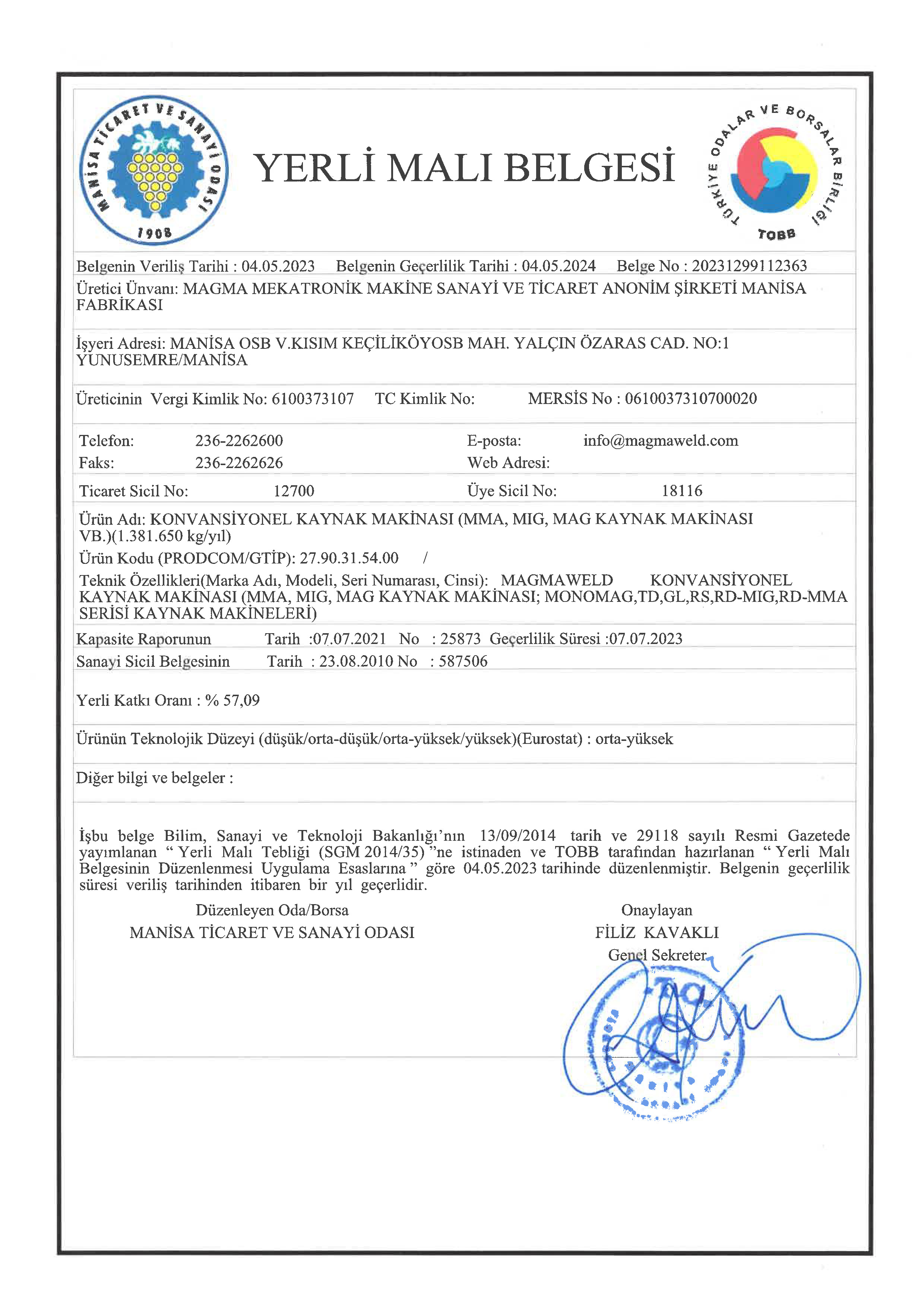

YERLİ MALI CE EAC
