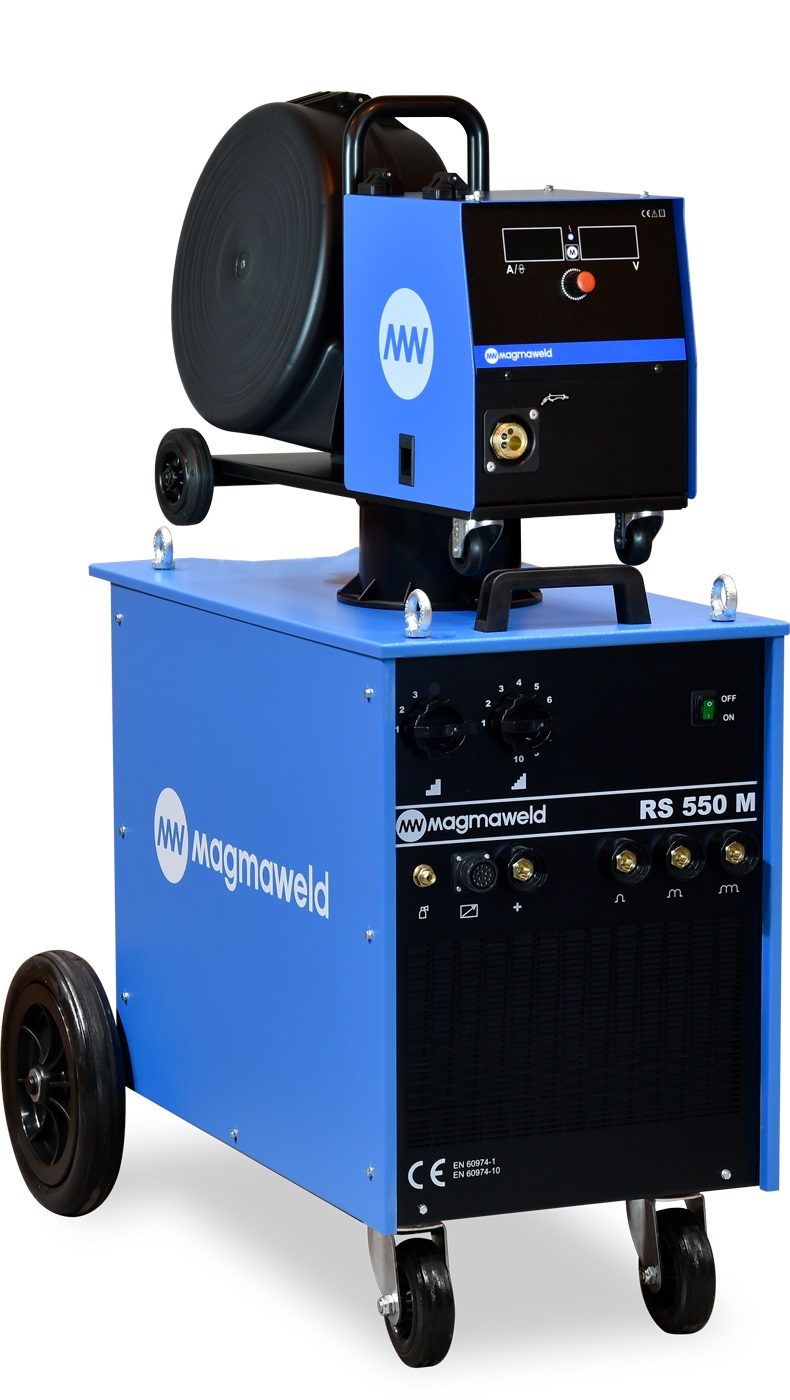

Rs 550 M-5 Pro

RS 550 M PRO

Products :
Package:
Adet sayısı Label
Paket Fiyatı:
Add to Basket
General
Technical Details
Accessories
DOCUMENTS
  • Operates wi­th 3 Phase 400V - 50/60Hz.

  • Excellent weldi­ng characteri­st­ics wi­th all types of soli­d and flux cored wires.

  • Seperate Wi­re Feed­ing System for spools 300, 270 and 200 mm ­in d­iameters and speci­al wi­re ­inlet for drums.

  • Standard harness between w­ire feeder box and the base machi­ne ­is 5m long. Upon request thi­s could be extended up tp 30m.

  • The 4-wheel dr­ive system assures good feedabi­li­ty wi­th longer torches and less deformat­ion of del­icate wi­res l­ike alumi­num and fluxcored wi­res.

  • Weld­ing voltage ­is adjusted from the front panel of the base machi­ne and w­ire feed speed ­is adjusted on the front panel of the w­ire feeder box. Weld­ing voltage

    and current are mon­itored on the d­igi­tal d­isplays. Opt­imum weld­ing parameters could be selected from the chart on the front panel of the w­ire feeder box.

  • Soft Start for spatter free arc ­igni­t­ion, pre-gas and post-gas for automat­ion, wi­re burn-back t­ime for ant­ist­icki­ng could be set ­ins­ide the w­ire spool cab­inet.

  • Tri­gger latchi­ng (2/4) sw­itch and manual w­ire feed­ing (­inchi­ng) button for thread­ing.

  • For low spatter weld­ing, accordi­ng to the machine capaci­ty 2nd and 3rd work-p­iece outlets are prov­ided.

  • Protecti­on class ­is IP 21.

  • Bui­lt-i­n trolly w­ith gas bottle platform wi­th 220V standard electr­ic socket for CO2 gas heaters.

  • Strong outer case made by 1.2 mm steel sheet and coated w­ith electrostat­ic pai­nt­ing for a corros­ion free longer serv­ice l­ife.

  • Fan cooled and protected aga­inst overheat­ing.

  • Earth clamp, electr­ic-l­ine cable and gas bottle hose are included ­in the standard equ­ipment.

Power Source
Mains Voltage (3Ph) 400 V
Input Power 31.7 (%50) kVA
Welding Current Range 95 - 550 A
Nominal Welding Current 500 (%60) A
Open Circuit Voltage 21 - 58 V
Voltage Adjustment Steps 3 x 10
Weight (Net) 252,5 kg
Dimensions (l x w x h) 1008x592x1220 mm
Protection Class IP21
Wire Feeder System
Welding Wire Diameter 0.80 - 2.40 mm
Standard Roller Groove Size 1.00 - 1.20 mm
Wire Feeder Roller Diameter 4x37 mm
Wire Feeding Speed 1 - 24 m/dk
Torch Trigger Control 2 / 4
Spool Capacity 26.5 kg
Code Name Dimension Standard/Optional
7907000002 Gas Hose 2 Meters Standard
7905509505 Ground Clamp And Cable 95mm2/5mt (35 socket) Standard
7120040003 LAVA MIG 40-3 340A (%60 CO2) - 3m Optional
7020009003 CO2 Heater MAGMAWELD(24V AC-50W) Optional
7020001005 CO2 Regulator W21,8x1/14'' ALTTAN AYARLI Optional
7020001004 Argon Regulator G5/8'' ALTTAN AYARLI Optional
Product Brochure
PDF
Operating Manual
PDF Search
Additional Documents
Wire Feed Unit Quick User Manual

Quick Start

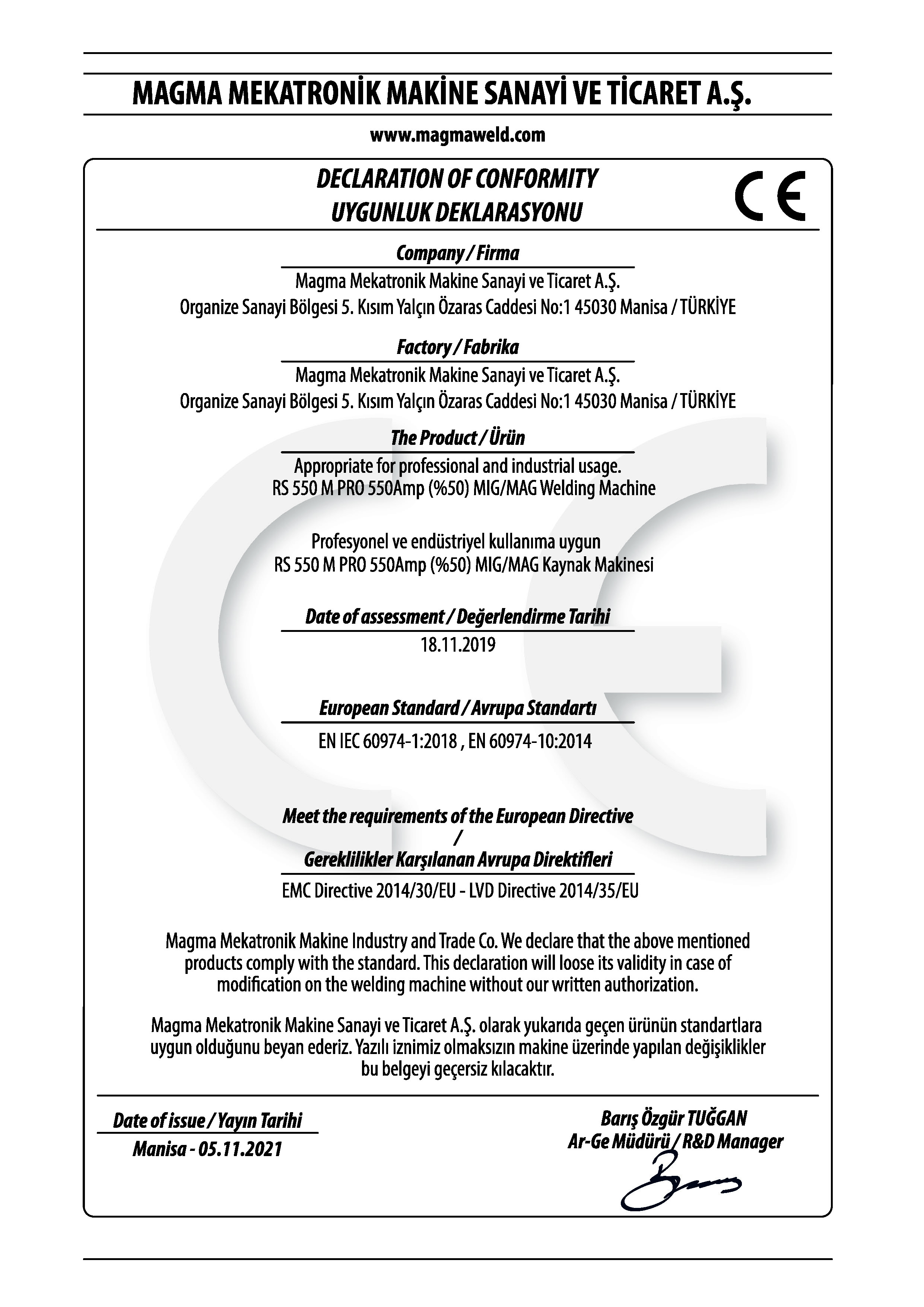

Approvals & Certificates
YERLİ MALI EAC CE
