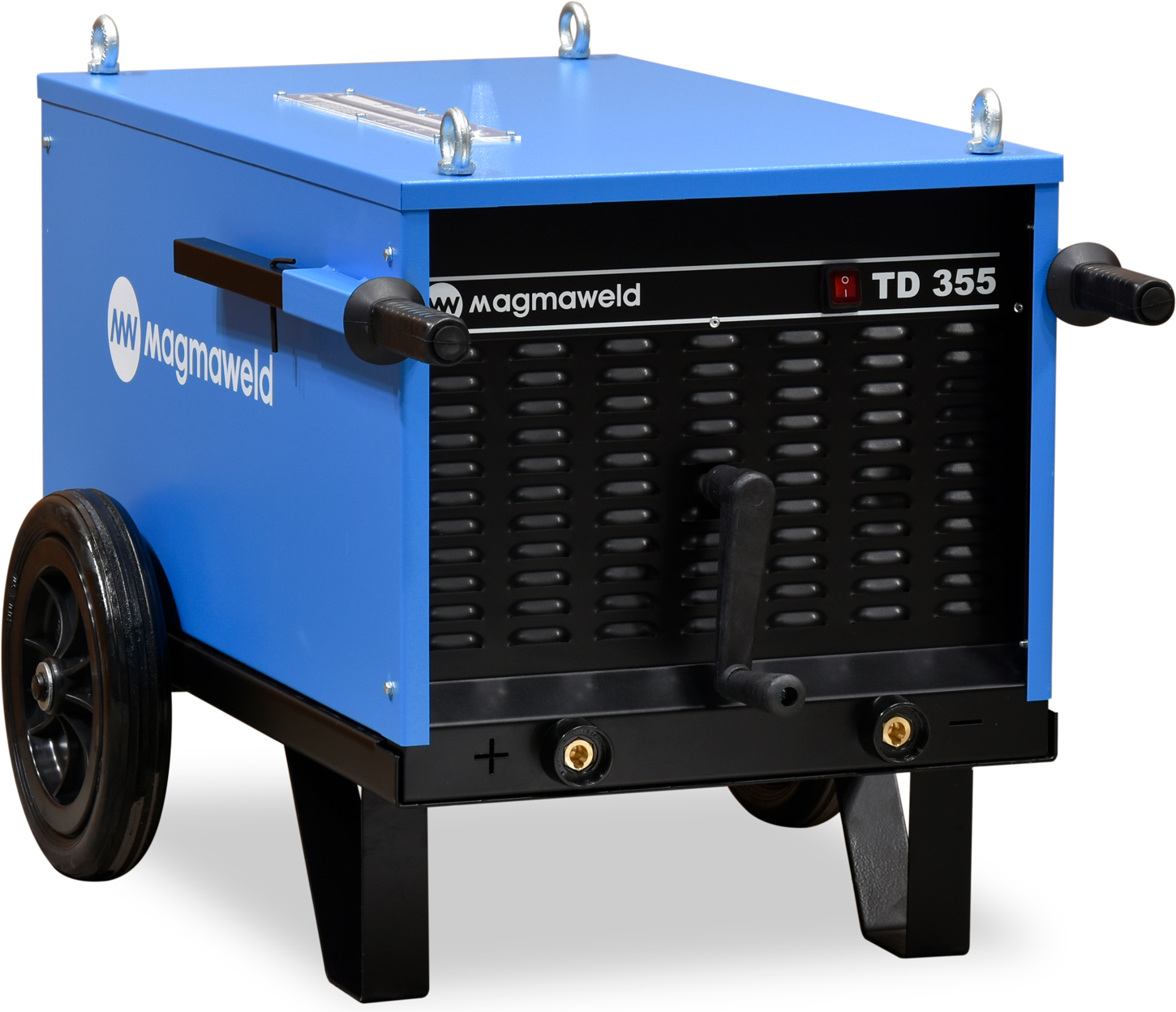

Td 355

TD 355

Products:

GENERAL
Technical Details
Accessories
DOCUMENTS
  • Operates with 3 Phase 400V-50/60 Hz mains voltage and generators, tolerates voltage fluctuations up to 10%.
  • Excellent welding characteristics for Rutile, Basic and Cellulosic electrodes .
  • Offers the possibility of working with long welding cables.
  • Current adjustment by turning handles and adjusted value is monitored through mechanical scales.
  • Due to its large wheels and telescopic arms, easy mobility on tough floor conditions.
  • Fan cooling and thermal protection against overheating.
  • Standard accessories come with the machine.
Power Source
Mains Voltage (3Ph) 400 V
Input Power 21,4 (%35) kVA
Welding Current Range 60 - 350 A
Nominal Welding Current 320 (%35) A
Open Circuit Voltage 54 - 64 V
Electrode Diameter 2.00 - 5.00 mm
Dimensions (l x w x h) 950 x 660 x 650 mm
Weight (Net) 125 KG
Protection Class IP22
CODE Pcs Dimension Standard/Optional
7906203505 Electrode Clamp And Cable 35mm2/5mt (35 socket) STANDARD
7905203503 Ground Clamp And Cable 35mm2/3mt (35 socket) STANDARD
Product introduction
PDF
Operating Manual
PDF Search
Additional Documents
Approvals & Certificates

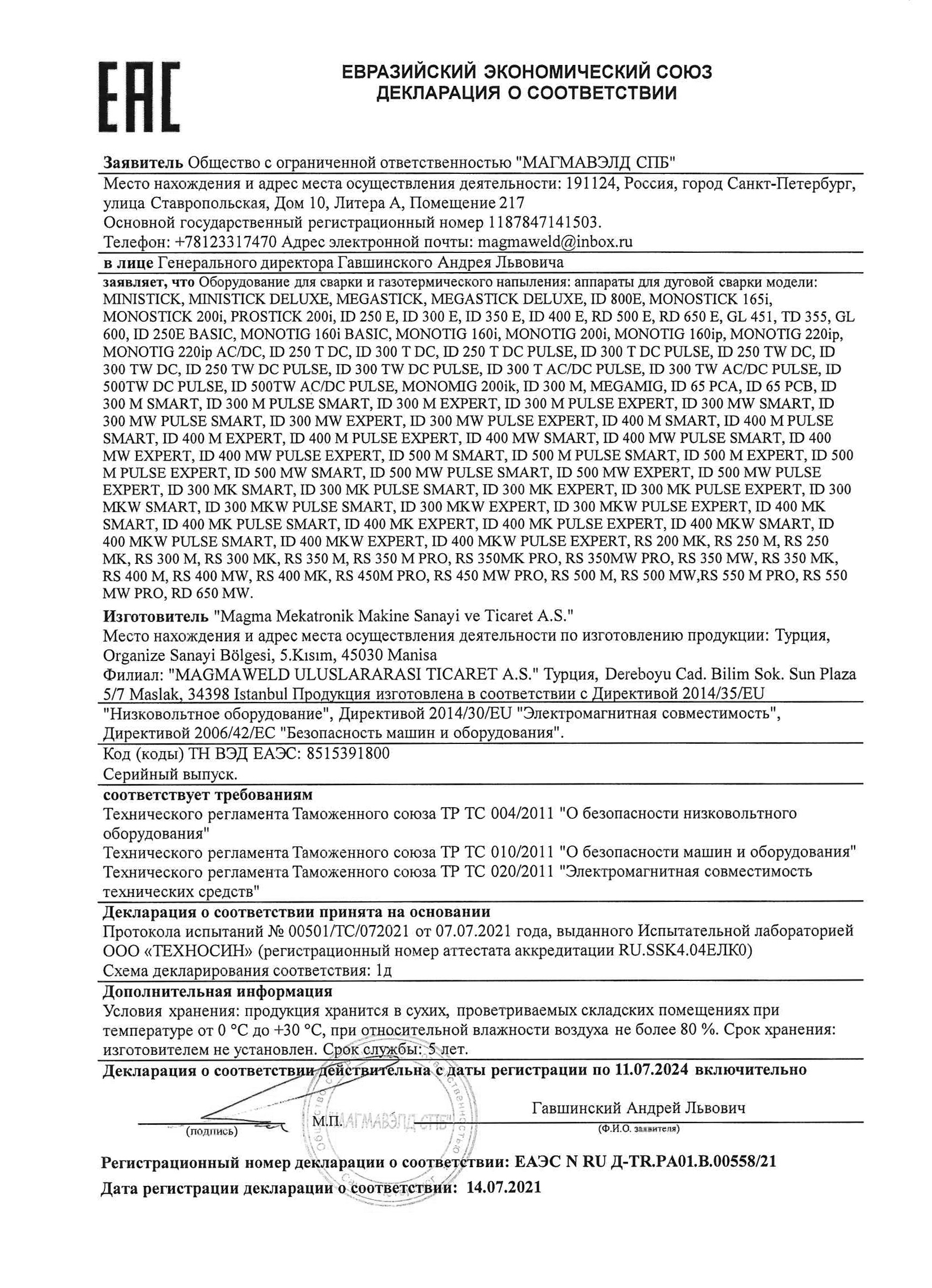

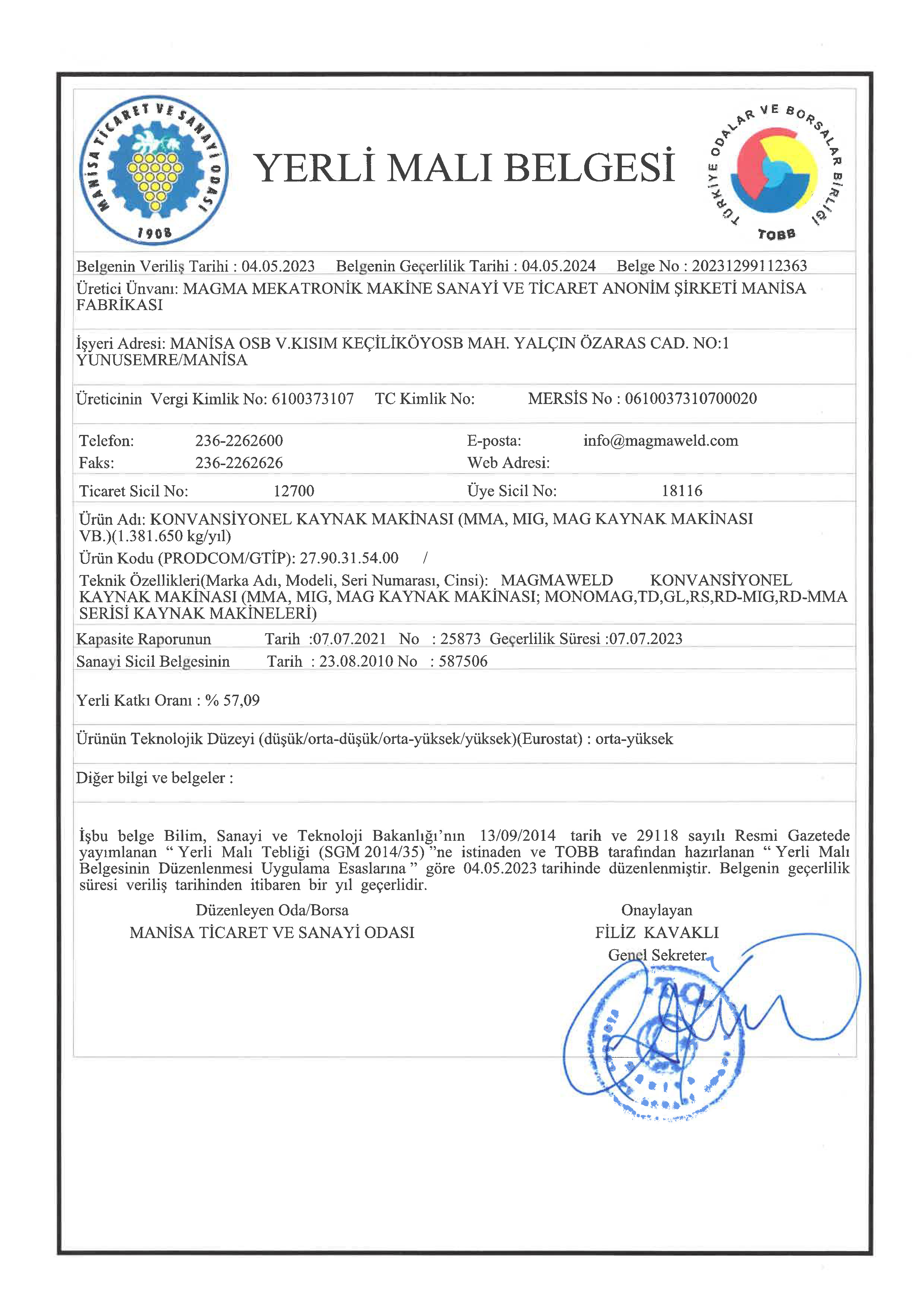

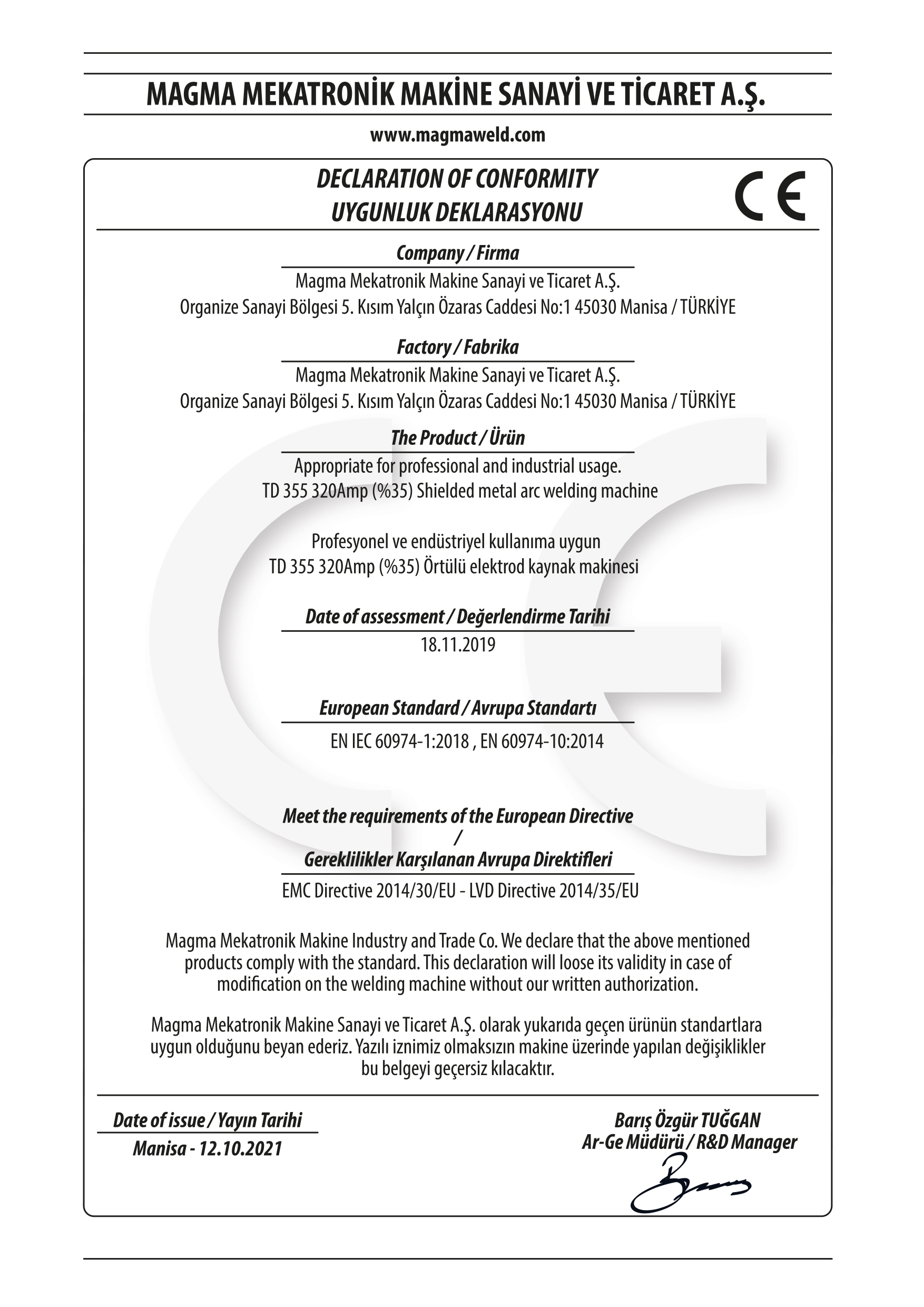

EAC ROHS YERLİ MALI CE
